ID
1345266
$ 445.13
1-2 weeks delivery time
-
+
Exalto EWT Wiper 223BD 12V bulkhead wiper designed for MD1 series with a 65° sweep and 23 Nm torque, for 75 mm wall thickness. Equipped with MD1 pendulum arm, 19 mm drive shaft, 132 mm shaft length, speed interval, self-parking, ungrounded setup, and 36 W power.
- Description
- Ask a Question
-

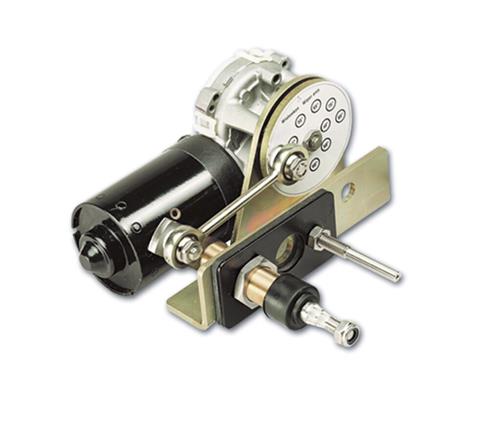

Exalto EWT Wiper 223BD 12V 65° 23Nm Bulkhead 75mm
The Exalto EWT Wiper 223BD 12V with a 65° angle of view provides efficient wiping power with 23Nm torque. Designed for bulkhead mounting with 75mm wall thickness, this MD1 series wiper features a pendulum arm type, speed interval, and self-parking functions for enhanced usability.
Key Features
- Drive shaft diameter: 19 mm
- Distance Hole-to-Hole (HoH): 50 mm
- Arm type: MD1 Pendulum
- Speed interval and self-parking functions
- Shaft length: 132 mm
- Ungrounded design
- Recommended fuse rating: 6 A
- Voltage: 12 V DC
- Maximum arm length: 750 mm
- Maximum blade length: 800 mm
- Power consumption: 36 W
Technical Specifications
Article Code XA2165.40-65 EAN Code 8720763539730 Angle of View 65° Torque 23 Nm Driven Axles 1 Maximum Ampèrage 3 A Product Width 170 mm Product Depth 238 mm Product Height 90 mm Series MD1 Shaft Support Diameter 6.4 mm High Speed (rpm) 56 Low Speed (rpm) 38 Wall Thickness 55 mm
Brand: Exalto Wiper Technologies B.V. (Article code XA2165.40-65)
-
