Ultra Bilge Pumpswitch Senior PS02-24/32VOLT is an automatic bilge pump switch with integrated high water alarm for 24–32V systems, featuring a sealed non-mercury construction and 30A relay performance for demanding marine environments.
- Description
- Ask a Question
-
Ultra Safe System Pumpswitch Senior PS02-24/32VOLT With High Water Alarm
Product Overview
Article number: S22252002
Pack units: Piece

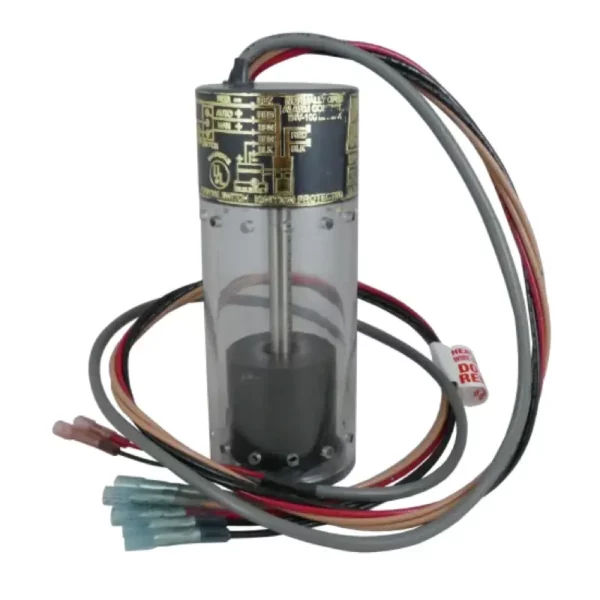

The Ultra Bilge Pumpswitch Senior is a precision-built automatic bilge pump switch designed for maximum reliability and full sealing against moisture throughout the life of the vessel. It includes advanced circuitry for a high water alarm and is engineered for demanding marine environments.
Available in Mini, Junior, and Senior models, the Senior version provides enhanced protection with isolated alarm functionality and commercial-grade switching performance.
Key Features
- Automatic bilge pump switching system
- Integrated high water alarm circuitry
- Non-mercury construction
- Sealed moisture-proof design
- Commercial-grade reliability
- High resistance to clogging and sticking
- Direct bulkhead or submersible pump mounting
Technical Data
Operating Voltage 24–32VDC Relay Output 30A relay / 10A pump load Float Differential 1-1/4" with isolated high water alarm at 3" Dimensions Height 6-1/4” / Diameter 2-1/2” Sensor Tube Non-magnetic stainless steel Case Tubing Buterate (fuel, oil, salt water resistant) Float Buna-N
Construction Details
- Custom non-magnetic stainless steel mounting bracket
- Extra-long sealed lead wires
- Adhesive-lined butt splice connectors
- Completely sealed sensor system
Brand: Ultra Safe system
-
