Ultra Bilge Pumpswitch Junior PS02-24/32VOLT is an automatic bilge pump switch for 24–32V systems, handling up to 15A with a sealed, non-mercury and clog-resistant design for reliable marine operation without high water alarm functionality.
- Description
- Ask a Question
-

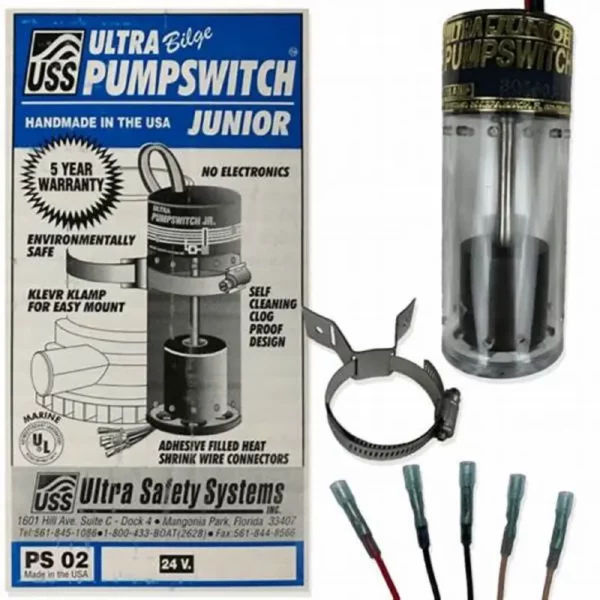

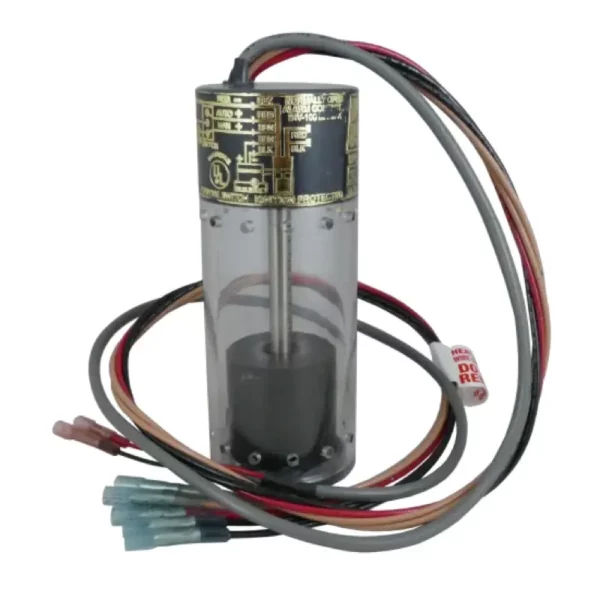

Ultra Safe System Pumpswitch Junior PS02-24/32VOLT Automatic Bilge Pump Switch
The Ultra Bilge Pumpswitch Junior is a commercial quality automatic bilge pump switching system designed for reliable marine water management. It is a non-mercury design built for pumps drawing up to 15A and is supplied with mounting hardware and sealed wiring connections for long-term durability.
This model is part of a three-tier system (Mini, Junior, Senior). The Junior version is a sealed, clog-resistant switch designed for dependable operation without binding or failure caused by debris. It does not include high water alarm circuitry.
NOTE: This product is the bilge pump switch only. Bilge pumps are sold separately. The Junior switch does not have high water alarm circuitry.
Key Features
- Automatic bilge pump switching
- For pumps drawing up to 15A
- Non-mercury design
- Ultra-reliable enclosed construction
- Patented anti-clog and anti-sticking design
- Ignition protected
- UL listed
- No timer delays, positive acting, non-electronic switching
- Power-on indicator light
- Optional test feature
- Impervious to bilge contaminants
- Sealed moisture-proof components
Technical Data
Relay Output 30A internal relay / 15A pump load Float Differential 1-1/4" On/Off Dimensions Height 6-1/4” / Diameter 2-1/2” Voltage 24–32VOLT Sensor Tube Non-magnetic stainless steel Case Tubing Buterate (impact, fuel, oil, salt water resistant) Float Buna-N
Construction Details
- Non-magnetic stainless steel mounting bracket (direct bulkhead or submersible mounting)
- Extra-long sealed lead wires
- Adhesive-lined butt splice connectors pre-installed
- Wiring instructions permanently stamped on switch
- Completely sealed switch components
Article number: S22252001
Pack units: Piece
EAN-code: 6095505428477
Brand: Ultra Safe system
-
