Self-priming jet pump with bronze body and brass impeller, 0.37 kW motor, designed for clean liquid transfer in marine systems and general water supply use.
- Description
- Ask a Question
-

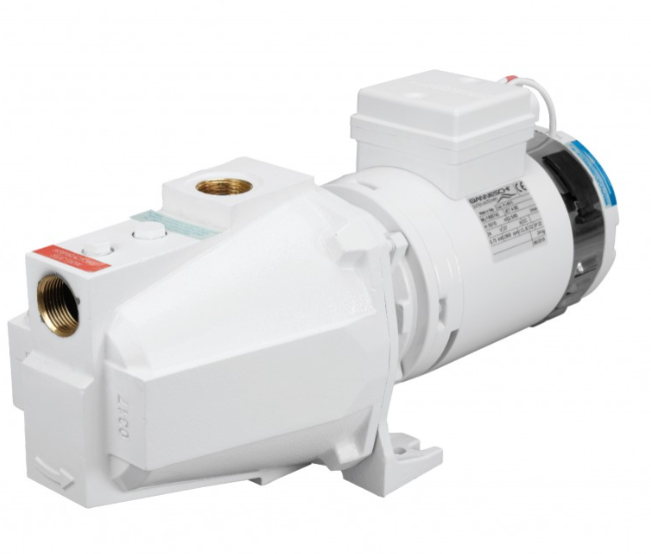

Gianneschi 01EJ121T - Jet Pump Ecojet 2 B 24V Cc 0.37 Kw
The Gianneschi ECOJET-2B-24V Jet Pump is a high-performance bronze pump unit designed for reliable fluid transfer in marine and industrial environments. Equipped with a brass impeller and a robust 24 V DC motor, it delivers efficient operation for clean liquid handling applications.
Technical Data
Article Number 01EJ121T Power 0.37 kW (0.5 HP) Speed 2900 RPM Voltage 24 V DC Pump Body Bronze Impeller Brass Shaft 316 Stainless Steel Max Static Pressure 8 bar (115 PSI) Max Suction Depth 8 m Max Liquid Temperature 50 °C
Key Features
- Self-priming jet pump design
- Bronze pump body for corrosion resistance
- Brass impeller for durability and efficiency
- 316 stainless steel shaft for extended service life
- Suitable for clean liquids only
Applications
This ECOJET pump is suitable for marine and industrial use, including fresh water transfer, seawater handling, diesel oil (non-flammable liquids), sanitary systems, deck washing, chain cleaning, water supply systems, and fire-fighting setups. Not suitable for flammable fluids or explosive environments.
Installation Notes
Install in a dry, ventilated area with a maximum ambient temperature of 40 °C. The pump must be mounted horizontally on a stable surface with vibration damping. Suction piping must be airtight with a continuous upward slope. A strainer and check valve are recommended for optimal performance and protection.
Brand: Gianneschi
-
