Heavy-duty centrifugal pump with 4 kW motor, bronze hydraulics and stainless shaft, designed for demanding marine and industrial applications like ballast, bilge, and fire-fighting systems.
- Description
- Ask a Question
-

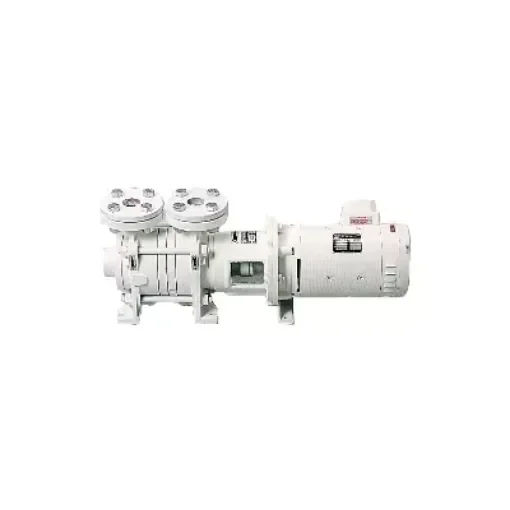

Gianneschi 01AAM513K - High Pressure Centrifugal Motor Pump ACM 501 Bt 230/400V 4kW
High-performance centrifugal motor pump designed for demanding marine and industrial applications. Built with bronze hydraulic components and stainless steel shaft for long-term reliability.
Features a double mechanical seal, strong self-priming capability, and robust double bearing shaft support. Suitable for a wide range of pumping operations including ballast, bilge, fire-fighting and water supply systems.
Applications
- Ballast systems
- Bilge pumping
- Diesel oil transfer
- Fresh and sea water washing
- Fire-fighting systems
- Water feeding systems
- Hydrofore systems
Technical Data
Model ACM 501 BT K3 Voltage 230/400 V Frequency 50 Hz Power 4 kW Max Flow 400 L/min at 1 bar Max Pressure 3.6 bar at 175 L/min Inlet/Outlet 2 in Dimensions 919 x 300 x 325 mm Weight 125 kg Pump Casing Bronze Impeller Bronze Shaft Stainless Steel Article Number 01AAM513K Pack Unit Piece Original Article Number 01AAM513K
Brand: Gianneschi
-
