Short Answer: If you're wondering which Victron controller to get, the answer depends on your battery setup, panel wattage, and how much power you want to harvest. Let’s break it down, without the jargon.
What is a Solar Charge Controller and Why Do I Need One?
A solar charge controller is the middleman between your solar panel and your battery. It prevents overcharging, regulates voltage, and keeps things from frying. Think of it as your system’s power bouncer: letting in only what your batteries can handle.
Understanding How a Solar Charge Controller Works in Your System
The controller takes the high voltage from the solar array and turns it into the right amount for your 12V or 24V battery. Without it, your battery would quickly become toast—or worse. This is why every solar system needs one. A properly sized charge controller can handle different solar input values depending on your battery bank. A good charge controller also ensures you reach a full charge without stressing the system or wasting energy.
Victron Energy Controllers vs Other Solar Controller Brands
Victron Energy controllers are known for their reliability, Bluetooth features, and sleek integration with other Victron gear that they are able to charge. Unlike some generic solar controllers, they rarely glitch out. Victron charge controllers are built to last. In short: less fiddling, more charging.
"I replaced two cheap controllers with one Victron SmartSolar. I’ve never looked back." — Full-time RVer, Arizona
MPPT vs PWM Charge Controller Technology: What's the Difference?
PWM controllers are older and cheaper. MPPT controllers are smarter and more efficient. MPPT stands for Maximum Power Point Tracking, which means it adjusts to pull the most juice from your solar panel, even when the sun is lazy. If you're choosing between PWM and MPPT, MPPT wins unless you're on a strict budget. Using a PWM controller might work for a minimal setup, but a Smart Solar MPPT is the better choice for optimized solar energy.
How to Size a Victron Solar Charge Controller for Your System
Sizing is all about matching your solar panel wattage, battery voltage, and expected amp output. You don’t want to damage the controller by undersizing, or overspend by oversizing too much.
Calculating the Right MPPT Charge Controller for Your Solar Panel Wattage
To pick the right Victron MPPT solar charge controller, take your total watt solar panel number and divide it by your system voltage. Add a safety margin. Example: 400 watts ÷ 12 volts = 33.3 amps. So you’ll want at least a 30A charge controller.
Pro Tip: Always oversize a bit. Panels often produce more than you expect on sunny days. That’s why knowing the maximum charge current matters. A properly sized controller lets you safely handle the watts of panels under peak sun.
Understanding Amps, Voltage, and Battery Type When Sizing a Controller
Consider your battery bank: Are you running a 12V battery, 24V, or 48V? Your controller needs to match. Also, your total amp draw must not exceed the controller’s rating. The voltage of the solar input should align with the system’s specs. Choosing a controller with enough room allows you to charge your batteries fully without overload.
- 100W panel @ 12V = ~8 amps
- 200W panel @ 24V = ~8.3 amps
Using the Victron MPPT Calculator to Size Your Charge Controller
Use the free Victron MPPT calculator online. This MPPT sizing calculator is a simple tool to help you select a charge controller that can handle your setup. Input your solar panel voltage, number of panels, and battery bank. It shows you which Victron SmartSolar fits best. It’s one of the best tools to help you select a charge controller without guesswork.
Which Victron SmartSolar MPPT Solar Charge Controller Should I Choose?
Victron SmartSolar MPPT models vary by amp rating. The goal: match controller size to your solar power needs without going over budget. Selecting the right solar controller means you’ll get a full charge without wasted energy.
SmartSolar MPPT Models Explained: 30 Amp to 100 Amp Victron Controllers
Here’s a quick guide:
| Model | Max Amps | Ideal Solar (W) | Voltage Support |
|---|---|---|---|
| 100/30 | 30A | Up to 440W | 12V/24V |
| 150/60 | 60A | Up to 880W | 12V–48V |
| 250/100 | 100A | Over 1000W | 12V–48V |
These SmartSolar MPPT solar charge controllers come with Bluetooth. That means you can use the Victron Smart app to monitor in real time and track your state of charge. If you're deciding what kind of charge controller is right for you, think about how much solar power you’ll need and whether you want mobile app access.
Matching Controller Size to Your Solar Array Setup (Series vs Parallel)
Going series boosts voltage, good for long cable runs. Panels in parallel keep voltage low, but amps high—great for shading. Choose based on your layout. Using solar panels wired in series gives better efficiency for MPPT controllers. Just make sure the combined watt panels in series don’t exceed your controller can handle limit.
BlueSolar MPPT vs SmartSolar MPPT Solar Charge Controller Comparison
BlueSolar MPPT models are like the SmartSolar’s low-tech cousin. No Bluetooth, fewer settings. Still solid. If you want control from your phone, go SmartSolar. If you’re hands-off, BlueSolar does the job. Either way, Victron Energy SmartSolar MPPT Solar Charge Controllers and BlueSolar models both offer charge controllers for a wide range of setups.
How Many Watts of Solar Can My Victron Controller Handle?
This depends on the Victron charge controller model you pick. And remember, watts of solar panels are rated under perfect test conditions—not real life. The controller needs to be rated properly to avoid issues.
Maximum Watt Solar Panel Limits by Victron MPPT Controller Model
Your charge controller for your solar array should handle this:
- 100/30: 440W @ 12V, 880W @ 24V
- 150/60: ~900W @ 12V, ~1800W @ 24V
Use a controller that can handle a little more than your watt panel total. This helps prevent issues if your solar input spikes on bright, cold days.
12V Battery Systems and the Right Victron Charge Controller Size
If you run a 12V battery, stick with 30A to 50A charge controllers. More panels = more watts of solar. Always double-check voltage, amp, and solar input limits. Ensuring a proper match helps maintain stable charge current.
Scaling Solar Power: When to Use Multiple Victron Solar Controllers
If you plan to add more solar later, consider running two panels on each Victron solar controller. One per array gives more flexibility and system redundancy.
"I run two 100/30s—if one fails, I’m still charging." — Sailor, Florida Keys
Common Mistakes When Sizing a Victron Charge Controller
Avoiding mistakes now will save frustration later.
Forgetting Future Solar Panel Expansion in Your Charge Controller Plan
Plan ahead. If you might add more solar panels and batteries, pick a Victron controller that can grow with your system. Don’t limit yourself. Choose a model that can accept extra watts of solar.
Overlooking Temperature Impact on MPPT Solar Charge Controller Efficiency
Heat drops efficiency. Cold boosts voltage. Size your MPPT controller to handle all conditions. Otherwise, unexpected cold snaps could damage the controller.
Mismatching Battery and Solar Panel Voltage with Your Charge Controller
Make sure your Victron solar controller supports both your battery and solar panel voltage. Check the kind of charge controller needed if you change components. A mismatch means your system may not charge your batteries at all.

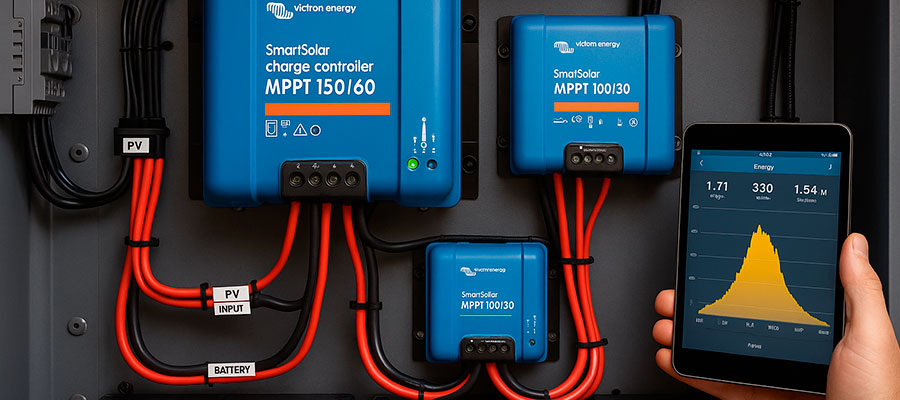

Setting Up Your Victron SmartSolar MPPT Charge Controller
Proper setup ensures optimal performance and longer system life.
Connecting Solar Panels in Series vs Parallel to a Victron Controller
- Panel in series = higher voltage, better tracking
- Panels in parallel = safer for shading, simpler wiring
Match your wiring to your SmartSolar MPPT specs. Systems with 4 panels or more may benefit from combining both wiring types for best performance.
Programming Your SmartSolar MPPT Solar Charge Controller for Peak Output
Use the VictronConnect app to:
- Set battery type
- Adjust charge current and voltages
- Monitor real-time performance
This helps you charge your batteries efficiently and safely. It’s key to maximizing solar energy.
Monitoring Solar Power with Victron Energy Apps and Battery Data
Download VictronConnect or use Victron GX systems for control. Track solar energy, battery levels, and MPPT charge data easily. These tools give full visibility into your solar panel system and improve your energy decisions.
Final Thoughts: Whether you're running a camper, cabin, or catamaran, they need a charge controller and picking the right one matters. Victron has many different charge controllers available. They keep your battery healthy, your solar panel system productive, and your lights on. With tools like the Victron MPPT calculator and the support of the Victron community, selecting the best controller becomes simple.
The full name? Victron Energy SmartSolar MPPT Solar Charge Controller. Try saying that fast. Or just use it and smile as your solar charger does its thing.
