How to Insert Osculati Chain Markers?

Installing these markers is straightforward, but choosing the correct size, creating a clear colour-coding system, and checking compatibility with your windlass are important. This guide explains how to insert Osculati chain markers, how to select the correct 6 mm, 8 mm, 10 mm, or 12 mm version, and how to mark your anchor chain at regular intervals.

How to Insert Osculati Chain Rainbow Markers

Osculati Chain Rainbow markers are coloured plastic inserts designed to fit inside the links of calibrated anchor chain. Once installed, they provide visual reference points that help the crew identify how much chain has been deployed or retrieved.

The installation process generally requires no special tools. However, the markers must match the chain diameter and fit securely without interfering with the chain's movement through the bow roller and windlass.

Step-by-Step Guide to Installing Osculati Chain Markers

1. Secure the anchor chain. Before handling the chain, ensure it cannot move unexpectedly. Switch off and isolate the windlass power supply. Do not work on chain links while the windlass is operating.
2. Check the chain diameter. Confirm whether your calibrated anchor chain is 6 mm, 8 mm, 10 mm, or 12 mm, and select the corresponding Osculati marker size.
3. Choose the marking intervals. Decide whether to mark the chain every 5 metres, 10 metres, or at another practical interval. Use the same system throughout the chain.
4. Measure the chain. Starting from the anchor end of the chain, use a measuring tape to identify the selected intervals. Mark these positions temporarily before installing the inserts.
5. Clean the chain links. Remove loose dirt, mud, salt deposits, and debris from the links where the markers will be installed. Inspect the chain for excessive corrosion or damage.

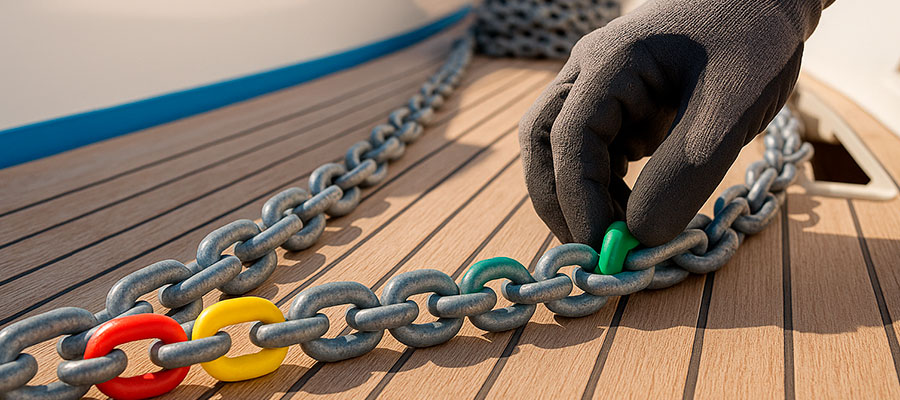

6. Position the plastic insert. Place the correct-size Osculati marker inside the selected chain link, following the manufacturer's fitting orientation.
7. Press the marker into place. Apply firm, controlled pressure until the insert is properly seated. It should fit securely within the link without needing excessive force.
8. Check the installation. Make sure the marker is seated correctly, is not loose, and does not prevent normal movement between adjacent chain links.
9. Repeat at the remaining intervals. Install the selected colours according to your marking pattern. Several adjacent inserts of the same colour can make each reference point more visible.
10. Test the marked chain. After completing installation, restore power only when all tools and hands are clear. Carefully operate the windlass according to its instructions and verify that the markers pass through the bow roller and gypsy without interference.

Once the chain is marked, keep a written record of the colour sequence near the helm or windlass controls so that everyone handling the anchor can interpret the markings correctly.

What Tools Do You Need to Install Chain Markers?

Osculati Chain Rainbow inserts are designed for direct fitting into compatible chain links, so installation typically requires only a few basic items:

• Measuring tape: To identify the selected chain-length intervals.
• Soft brush and fresh water: To remove dirt and debris from the chain links.
• Protective gloves: To protect your hands when handling chain.
• Notebook or colour chart: To record the marking pattern.
• Correct-size Osculati markers: Selected according to the chain diameter.

If a marker is difficult to insert, check its size and orientation before applying additional pressure. Do not force an oversized insert into the link or use excessive pressure with pliers, as this may damage the plastic marker.

Common Mistakes When Installing Anchor Chain Markers

• Using the wrong marker size: A marker intended for a different chain diameter may not fit securely or may be impossible to install correctly.
• Ignoring chain-link dimensions: Chain diameter alone does not guarantee compatibility with every link profile or manufacturing standard.
• Installing markers into dirty links: Mud, corrosion products, or other debris may prevent the insert from seating properly.
• Using excessive force: Forcing a marker into an incompatible link may deform or break it.
• Creating a complicated colour sequence: An inconsistent marking pattern can cause confusion when deploying or retrieving the anchor.
• Failing to test the windlass: Even correctly sized markers should be checked for smooth passage through the actual windlass installation.
• Assuming markers cannot fall out: Repeated handling, abrasion, and movement through the anchoring system can loosen or damage individual inserts.

Important: Chain markers are visual measuring aids. They do not replace correct anchor deployment, proper scope calculation, or the need to secure the anchor rode correctly.

What Are Osculati Chain Markers and Why Are They Useful?

Osculati Chain Rainbow markers are small coloured plastic components inserted into calibrated anchor-chain links. They provide a simple visual system for identifying how much chain has passed through the bow roller during anchoring.

Unlike an electronic chain counter, the markers do not require a power supply, sensor, display, or electrical installation.

Why Should You Mark Your Anchor Chain?

When lowering an anchor, the amount of deployed chain is an important factor in determining the pulling angle on the anchor and the boat's potential swinging radius.

Without markings or a chain counter, it can be difficult to estimate how much chain has been released, particularly when operating an electric windlass.

Properly installed anchor chain markers provide several practical advantages:

• Chain length identification: Recognize how much chain has been paid out or retrieved.
• Consistent anchoring: Repeat a familiar chain deployment procedure in similar conditions.
• Crew communication: Use colour references to communicate chain length between the bow and helm.
• Anchor retrieval: Identify how much chain remains outside the boat as the anchor approaches the bow roller.
• Independent visual reference: Check chain length without relying exclusively on an electronic counter.

How Do Chain Markers Help with Anchor Scope?

Anchor scope is the ratio between the length of deployed anchor rode and the vertical distance from the boat's bow attachment point to the seabed.

Scope = Deployed Anchor Rode Length / Vertical Distance to the Seabed

The vertical distance includes the water depth, the height of the bow roller above the water, and any expected tidal rise.

For example, if the total vertical distance is 5 metres, a 5:1 scope corresponds to approximately 25 metres of deployed rode, while a 7:1 scope corresponds to approximately 35 metres.

Chain markers help the operator recognize the amount of chain deployed, making it easier to follow the selected scope. The appropriate ratio still depends on the anchoring conditions, anchor type, rode configuration, and available swinging room.

Which Osculati Chain Marker Size Do You Need?

Osculati Chain Rainbow markers are available for several common calibrated chain diameters. Selecting the correct version is essential because the inserts are designed to fit within chain links of a particular size.

The main available sizes are 6 mm, 8 mm, 10 mm, and 12 mm.

Osculati Chain Rainbow Assorted Colour Kits – 01.501 Series

The Osculati 01.501 series consists of assorted-colour marker kits containing white, blue, yellow, red, and green inserts.

Each kit is intended for a specific diameter of calibrated chain. A 6 mm kit does not contain separate markers for 8 mm, 10 mm, and 12 mm chains.

These quantities refer to the complete assortment of inserts supplied in each kit. The number of chain-length intervals that can be marked depends on how many inserts are used at each reference point and the chosen marking pattern.

Osculati Single-Colour Chain Markers – 01.500 Series

Osculati also offers individual colour packs in the 01.500 series. These are intended for marking approximately 25 cm of calibrated chain with inserts of one selected colour.

The Osculati Chain Rainbow marker inserts are available in white, blue, yellow, red, and green versions for different chain diameters.

The final letters in each 01.500 article number identify the insert colour:

• BI: White
• BL: Blue
• GI: Yellow
• RO: Red
• VE: Green

For example, 01.500.08RO identifies a pack of red markers for 8 mm calibrated chain.

The 01.500 series is useful when individual colours are needed, while the 01.501 series provides an assortment for creating a multicolour chain-marking system.

How to Measure Your Anchor Chain Diameter

Before ordering markers, confirm the diameter of the chain itself rather than estimating its size from the boat or windlass model.

1. Secure the chain so that it cannot move.
2. Use a suitable caliper to measure the diameter of the steel rod forming the chain link.
3. Measure an undamaged section away from the weld.
4. Compare the result with the nominal chain diameter.
5. Check the chain specification or supplier documentation if the measured diameter is unclear.
6. Confirm that the selected marker is suitable for the chain-link profile.

For example, calibrated chain made from approximately 8 mm diameter steel rod generally requires markers intended for 8 mm chain. However, the link dimensions and manufacturing standard should also be considered.

Are Osculati Markers Compatible with All Anchor Chains and Windlasses?

Osculati Chain Rainbow inserts are intended for calibrated anchor chains. They are not automatically compatible with every chain profile or windlass installation.

Different anchor chains may have different link dimensions, even when their nominal rod diameter is similar.

Chain standards, dimensional tolerances, and the geometry of the windlass gypsy can affect how the markers pass through the system.

Before regular use:

• Check the nominal chain diameter and link dimensions.
• Confirm the marker fits securely inside the selected link.
• Make sure adjacent links can articulate normally.
• Inspect the interaction between the marked chain and the bow roller.
• Test controlled movement through the windlass gypsy.
• Stop immediately if the markers jam, deform, or interfere with chain movement.

A correctly fitted marker should remain within the link and should not interfere with normal chain handling, but compatibility must be verified on the actual equipment.

What Is the Best Colour Coding System for Anchor Chain?

There is no universal international colour sequence that every recreational boat uses for anchor chain marking. The most important requirement is to create a system that is consistent, easy to recognize, and understood by the crew.

Osculati offers five marker colours:

• Red
• Yellow
• Blue
• Green
• White

These colours can be arranged in different combinations depending on the chain length and the preferred marking intervals.

Example: Marking Anchor Chain Every 10 Metres

A straightforward method is to assign a different colour to each 10-metre interval.

This sequence is an example rather than a mandatory Osculati standard. The operator can choose a different arrangement provided the system is clearly documented.

If the chain is longer than 50 metres, repeating exactly the same five colours without additional identification can cause confusion. A red marker at 60 metres could be mistaken for the red marker at 10 metres.

Longer chains should therefore use an additional distinguishing feature, such as a different grouping of inserts or another clearly documented marking convention.

Should You Mark Anchor Chain Every 5 or 10 Metres?

Both intervals can work effectively. The most practical choice depends on chain length, typical anchoring depth, and how precisely the operator wants to monitor deployment.

• Every 5 metres: Provides more frequent visual references and may be useful in relatively shallow anchorages.
• Every 10 metres: Creates a simpler marking system with fewer reference points and may be convenient for longer chains.
• Additional intermediate markings: Can be used where the skipper regularly deploys particular chain lengths.

For example, a boat regularly anchoring in water depths of 3–8 metres may benefit from frequent 5-metre references when selecting the required scope.

For a vessel carrying a long all-chain rode, 10-metre intervals may be easier to manage, particularly when combined with an electronic chain counter.

How Many Inserts Should You Use at Each Marking Point?

Using several adjacent inserts of the same colour can make a marking easier to recognize while the chain moves over the bow roller.

The appropriate number depends on the chain size, marker fit, visibility, and the total quantity supplied in the pack.

Install enough markers to make each reference point recognizable without unnecessarily filling a long section of chain. Each insert must be correctly seated and compatible with the windlass.

Keep a reference chart near the helm or windlass controls showing the number of metres represented by each colour or group of markers.

How Should You Identify the End of the Anchor Chain?

The final section of the anchor rode should be clearly distinguishable from ordinary length markers so the crew can recognize when only a limited amount of chain remains available.

Do not rely on an ordinary colour sequence alone to identify the bitter end.

The inboard end of the anchor rode must be secured according to the boat manufacturer's anchoring arrangement. Any emergency-release provision should follow the vessel's design and safe operating procedures.

Avoid attaching wire ties, protruding fittings, or improvised markers that could jam in the windlass.

Osculati Chain Markers vs. Paint and Cable Ties

Several methods can be used to identify anchor chain length. The most common include purpose-designed plastic inserts, coloured paint, and cable ties.

Each approach has advantages and limitations, particularly when exposed to repeated chain movement, abrasion, seawater, and handling through a windlass.

Osculati Plastic Inserts vs. Coloured Cable Ties

Coloured cable ties are inexpensive and easy to install, but they are not specifically shaped to fit inside chain links.

The exposed ends of cable ties may catch against surrounding equipment or become damaged during repeated deployment and retrieval.

Osculati inserts are designed to sit inside compatible links, creating a more integrated chain-marking arrangement.

• Installation: Both methods are relatively straightforward, although chain inserts require correct sizing.
• Visibility: Both can provide clear visual identification when correctly installed.
• Mechanical protection: Inserts sit within the chain link, while cable ties commonly extend around or beyond the link.
• Maintenance: Both should be inspected regularly for damage or loss.
• Windlass compatibility: Any marker system must be tested for safe passage through the equipment.

Osculati Chain Markers vs. Painted Chain

Painting selected chain sections is another traditional way to mark anchor rode length.

Paint does not require inserts inside the links, but its visibility and service life depend on surface preparation, paint type, abrasion, and marine exposure.

Chain movement through the windlass and contact with the seabed can gradually remove painted markings.

Plastic inserts avoid the need to paint the galvanized chain, but they can also become damaged or dislodged over time.

Neither method is maintenance-free. The best choice depends on visibility, compatibility, installation preferences, and the operating conditions.

Comparison of Anchor Chain Marking Methods

How to Maintain Osculati Chain Markers

Regular inspection helps keep chain markings readable and prevents damaged inserts from interfering with anchor handling.

Markers should be checked as part of routine anchor chain and windlass maintenance.

Inspecting and Replacing Damaged Markers

Inspect the markers periodically, especially after extensive anchoring or when the chain has been exposed to heavy abrasion.

• Check for missing inserts at marked intervals.
• Look for cracked, deformed, or excessively worn plastic.
• Confirm the remaining markers are securely fitted.
• Replace markers that no longer fit correctly.
• Check the chain links themselves for corrosion, deformation, or wear.
• Verify that the colour sequence still matches the reference chart.

When replacing a marker, remove the damaged insert carefully without damaging the chain link. Install a new marker of the correct diameter and colour.

Do not assume that an insert removed from a chain link can always be reused. Replace it if its retaining surfaces are damaged or its fit is no longer secure.

Cleaning the Anchor Chain and Chain Locker

A clean, properly drained chain locker helps reduce the accumulation of mud, salt, and debris around the anchor rode.

Where practical, rinse the anchor chain with fresh water during retrieval to remove salt and sediment.

Periodically inspect the chain locker and drainage arrangements to ensure that water does not accumulate unnecessarily.

Keep the chain clear of loose objects that could become caught in the windlass or interfere with chain movement.

Using Osculati Markers with an Electronic Chain Counter

Visual chain markers can also be useful on boats equipped with an electronic chain counter.

Modern anchor chain counters provide a display of the chain length deployed, often using information from a sensor associated with the windlass.

Osculati markers provide an independent visual reference that can help the operator check whether the counter's displayed measurement corresponds approximately with the chain passing over the bow roller.

If the electronic counter consistently disagrees with the physical markers, check its installation, settings, and calibration according to the manufacturer's instructions.

Visual markers remain useful if an electronic display becomes unavailable, although the chain must still be handled and monitored safely.

Frequently Asked Questions About Osculati Chain Markers

How Do You Install Osculati Chain Markers?

Select the correct marker size for the calibrated chain, clean the chosen link, position the plastic insert according to the manufacturer's fitting orientation, and press it securely into place. Repeat at the selected intervals and test the chain through the windlass before regular use.

Are Osculati Chain Markers Available for 6 mm, 8 mm, 10 mm, and 12 mm Chains?

Yes. Osculati offers Chain Rainbow markers for these four nominal chain diameters. Each marker or kit must be selected for the corresponding chain size.

What Is the Difference Between Osculati 01.500 and 01.501?

The 01.500 series consists of single-colour marker packs intended to mark approximately 25 cm of calibrated chain. The 01.501 series consists of assorted-colour kits containing five different colours, with total insert quantities determined by chain diameter.

Can You Use Osculati Chain Markers with an Electric Windlass?

They can be used with suitable calibrated chains and compatible windlass systems. However, compatibility should be checked on the actual installation. Incorrectly sized or poorly fitted markers may interfere with the gypsy or chain movement.

What Is the Best Colour Pattern for Anchor Chain Markers?

There is no single mandatory colour sequence. A practical approach is to use a different colour every 5 or 10 metres and maintain a clear reference chart. Longer chains require an unambiguous way to distinguish repeated colours.

How Many Osculati Markers Are Included in a Kit?

For the assorted-colour 01.501 series, the 6 mm kit contains 70 inserts, the 8 mm kit contains 50, and the 10 mm and 12 mm kits contain 40 each. Single-colour 01.500 packs contain 14, 10, 8, or 8 inserts respectively, depending on chain diameter.

Can Osculati Chain Markers Fall Out?

Yes. Although they are designed to fit securely inside compatible chain links, markers may become damaged or dislodged through handling, abrasion, or incorrect installation. Regular inspection and replacement of loose or damaged inserts are recommended.

Can Chain Markers Replace an Electronic Chain Counter?

Chain markers provide a practical visual method of estimating deployed chain length and do not require electronic equipment. However, they must be read manually and depend on a consistent colour system. An electronic chain counter provides a separate measurement method, and the two systems can be used together.

Final Thoughts: Installing Osculati Chain Rainbow Markers

Osculati Chain Rainbow markers offer a practical way to identify deployed anchor chain length using coloured plastic inserts fitted inside calibrated chain links.

Correct installation begins with choosing the appropriate 6 mm, 8 mm, 10 mm, or 12 mm marker size and checking compatibility with the chain and windlass. The marking intervals and colour sequence should be easy to recognize, consistent, and clearly documented for the crew.

Osculati offers both single-colour marker packs in the 01.500 series and assorted-colour kits in the 01.501 series. Selecting the correct version depends on the chain size and the intended marking system.

Regular inspection, replacement of damaged inserts, and occasional verification of the colour sequence will help keep the markings useful throughout normal anchoring operations. Combined with correct scope calculation and safe windlass operation, chain markers provide a simple visual aid for managing anchor rode length.
