Knowing the specific model of your Jabsco marine toilet is the first and most important step before you can order spare parts, download the correct manual, or ask for help on a boating forum. If you have a new boat, the previous owner may not have left manuals, leaving you to identify the unit yourself. This guide will help you determine which Jabsco toilet model you have and point you toward the right resources for maintenance and troubleshooting.
How Can I Identify Which Jabsco Toilet Model I Have on My Boat?
Identifying your toilet is usually a straightforward process of looking for key visual clues and model numbers.
Finding Jabsco Toilet Model Numbers and Serial Information
First, look for a label or data plate. Jabsco, a brand of Xylem, often places a sticker with the model and serial number in one of these locations:
- On the back or base of the toilet pedestal.
- Underneath the toilet seat, on the porcelain bowl itself.
- Stamped into the plastic body of the pump assembly.

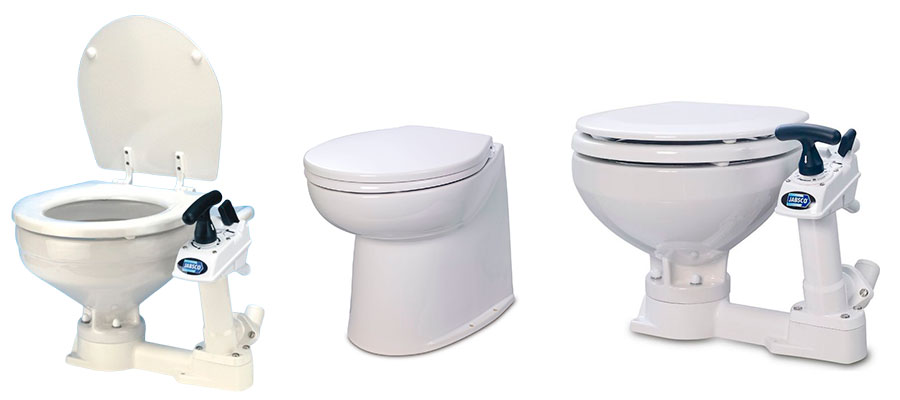

Distinguishing Between Jabsco Manual Toilet vs. Electric Toilet Models
This is the easiest distinction to make.
- A manual toilet will have a large hand pump with a handle and a small lever to control the flush.
- A flush electric model will have no pump handle. Instead, it will have a push-button or switch panel on a nearby wall and visible electrical wires running to the base of the toilet.
Common Jabsco Marine Toilet Identification Markers for Boat Owners
Different models have distinct features. For instance, the very popular Jabsco Twist 'n' Lock model has a large, gray handle that you twist to lock after pumping. Older models might have a different style of hand pump, sometimes referred to as a PHI or PHII pump. The shape of the bowl, the design of the pump lever, and the overall size can all be clues to help you identify your model when comparing it to pictures online.
What Are the Most Common Jabsco Marine Toilet Problems and Solutions?
Most issues are common across all manual models and can be fixed without having to buy a new toilet.
Troubleshooting Jabsco Toilet Flush Issues and Valve Replacements
- No flush water enters the bowl: This is usually due to a clogged inlet pipe or a closed seacock. It can also mean the seals inside the hand pump are worn and can no longer create suction.
- Water slowly leaks back into the bowl: This is a classic symptom of a worn-out joker valve in the discharge path, which needs to be replaced.
- The pump lever is very stiff: The pump assembly needs to be lubricated or rebuilt with a service kit.
Fixing Leaking Hose Connections and Discharge Problems
Leaks from the pipe connections are common. Always check that the stainless steel hose clamps are tight and not corroded. The discharge hose itself can become brittle over time and develop small cracks. If a leak persists at the connection point, the end of the hose may have stretched or cracked, and it might need to be trimmed or the whole pipe replaced.

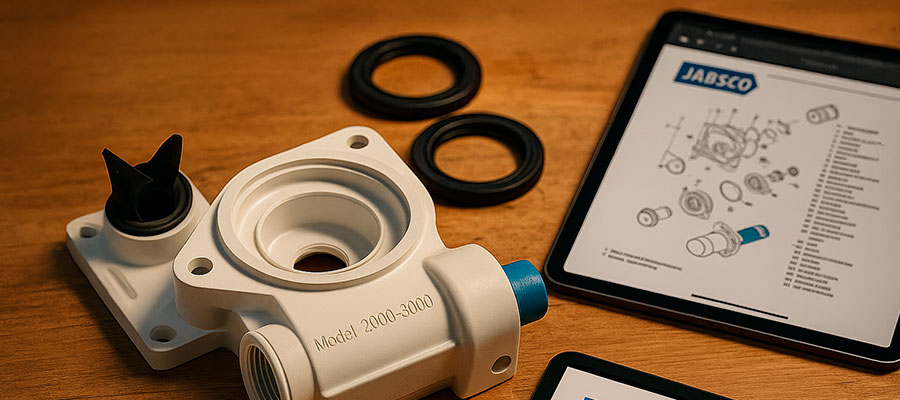

When to Replace or Rebuild Your Jabsco Pump Assembly
Deciding whether to buy a new pump or just rebuild it comes down to cost and condition.
- Rebuild the pump if: The pump is just working inefficiently, or the seals are leaking. A service kit with new spare parts is inexpensive and will restore performance.
- Replace the whole pump if: The main plastic housing is cracked, the handle is broken, or the pump is so old that a complete new pump assembly is not much more expensive than buying all the individual parts.
How Do I Maintain and Service My Jabsco Manual Toilet?
Regular, proactive maintenance is the best way to ensure your manual toilet works when you need it and to avoid the hassle of having to replace the whole unit unexpectedly. Most service tasks are simple and can be done by any boat owner.
Essential Jabsco Manual Toilet Maintenance Tips for Boat Owners
Following a few simple tips will dramatically extend the life of your toilet and its components.
- If you primarily use salt water, flush the system with fresh water periodically to dissolve salt crystals that can build up and damage seals.
- Educate all guests: nothing goes in the toilet except human waste and marine-grade toilet paper.
- Once a month, check that all hose clamps on the inlet pipe and discharge hose are tight and free of corrosion.
- Use only lubricants designed for marine toilets on the pump piston and seals; petroleum-based grease will cause rubber seals to swell and fail.
- Be gentle with the toilet seat. Overtightening the mounting bolts can easily crack the porcelain base.
Replacing the Joker Valve in Jabsco Manual Pumps
Replacing the joker valve is the most common service item and should be done every year or two.
- First, shut both the water inlet and the waste outlet seacocks.
- Unscrew the bolts or screws holding the discharge elbow onto the pump body. Be prepared with a rag to catch any residual water.
- Pull the elbow off and you will see the rubber joker valve. Remove the old valve, noting which way it was facing.
- Install the new joker valve. It is critical that it faces the correct direction: the "lips" of the valve must point in the direction of the flow, towards the discharge hose.
- Re-attach the discharge elbow, tighten the screws, and test for leaks.
Proper Cleaning and Care for Jabsco Toilet Bowl and Seat
Using the wrong cleaner can cause more harm than good.
- Do not use chlorine bleach, abrasive powders, or common household toilet bowl cleaners. These harsh chemicals will destroy the rubber seals in the pump and can damage the plastic toilet seat.
- Do use white vinegar or cleaning products specifically made for marine toilets. A cup of white vinegar left in the bowl for a few hours will safely dissolve mineral deposits. Use a soft brush to avoid scratching the bowl's surface.
What Parts Do I Need for My Jabsco Electric Marine Toilet?
An electric toilet has more complex components than a manual one, combining a "wet end" with seals and valves, and a "dry end" with motors and switches. The spare parts you need will depend entirely on which part of the system has failed.
Understanding Jabsco Electric Toilet Components and Solenoid Valve Systems
The main components of a flush electric toilet system that differ from a manual one are:
- The Motor, Macerator, and Pump Assembly: This is the core unit that does all the work. It is usually a single, integrated assembly that bolts onto the back of the toilet bowl.
- The Flush Switch or Control Panel: This is the user control, which can be a simple push-button or a multi-function panel.
- The Water Control System: This is either a solenoid valve for pressurized fresh water systems or a separate raw water pump for salt water systems. The solenoid is an electric valve that opens to let water in when the flush is activated.
Jabsco Quiet Flush Replacement Parts and Rebuild Kits
For most electric models like the popular Jabsco Quiet Flush, service parts are available, but they are different from a manual rebuild.
- Service kits for electric toilets typically contain the joker valve, o-rings, and seals for the pump housing part of the assembly. These address leaks from the "wet end".
- For issues with the motor, macerator, or switch, you generally cannot rebuild them. Instead, you buy a new motor assembly or a new switch panel and replace the whole component. It is often more practical to replace the whole pump and motor unit than to try and find small internal spare parts for it.
Fresh Water vs. Salt Water Toilet System Requirements
The parts your system uses depends heavily on its water source.
How Do I Install or Replace a Jabsco Toilet on My Boat?
Replacing a marine toilet is a manageable job for most boat owners. The key is to be methodical and ensure every connection is secure to prevent leaks.
Step-by-Step Guide to Installing a New Jabsco Marine Toilet
This is a high-level overview of the replacement process.
- Shut Off: Close all seacocks and turn off power and water breakers connected to the toilet.
- Disconnect: Disconnect the inlet and discharge hose, then unbolt the old toilet from its base.
- Prepare Base: Clean the mounting surface thoroughly. Fill and seal the old bolt holes with marine-grade epoxy.
- Position New Toilet: Mark the positions for the new bolt pattern. Drill pilot holes.
- Mount: Apply a bead of marine sealant to the base of the new toilet, then bolt it down firmly but do not overtighten.
- Connect Hoses: Attach the sanitation hoses, using two stainless steel clamps on each connection.
- Test: Slowly open the seacocks and test the flush system multiple times, checking carefully for any leaks at the base or hose connections.
Connecting Your Jabsco Toilet to the Boat's Water Supply and Holding Tank
Focus on these critical points for leak-proof, odor-free connections.
- Always use proper, thick-walled sanitation hose, not just any pipe.
- Secure every hose fitting with two high-quality stainless steel hose clamps.
- Ensure hose runs are as straight as possible, with no sharp bends or kinks that could impede flow.
- Install vented loops on both the inlet and discharge hose if any part of the toilet is below the waterline. This is a critical safety step to prevent siphoning.
Proper Bolt Patterns and Mounting Considerations for Different Models
Before you buy a new toilet, check these mounting details.
- Footprint: Compare the bolt pattern of the new toilet to your old one. They are often not a direct match between different brands or even different Jabsco models.
- Adapter Plates: Some manufacturers offer adapter plates to help you mount a new toilet to an existing bolt pattern without drilling new holes.
- New Holes: If you must drill new holes, it is essential to completely seal the old ones to protect the boat's structure from water damage.
- Solid Foundation: Ensure the platform the toilet sits on is strong, level, and free of any rot.
Where Can I Find Help and Resources for My Jabsco Toilet?
You are not alone when it comes to fixing your boat's head. A wealth of information is available from the boating community and directly from the manufacturer if you know where to look.
Accessing Jabsco Marine Toilet Forums and Boating Forum Discussions
Online boating forums are one of the best resources for practical, real-world advice on your manual boat toilet.
- Search for your specific problem on major sailing or powerboating forums. Chances are, another owner has already experienced the same issue and posted a detailed solution.
- These forums are excellent for getting tips on hard-to-find spare parts or learning custom tricks for maintenance.
- You can post questions with photos of your setup to get personalized help from experienced boaters.
Finding the Right Jabsco Manual for Your Specific Toilet Model
For official specifications, search online for your toilet's model number to find the correct PDF manual, often on the Jabsco or Xylem websites. The parts diagram inside is essential for ensuring you order the correct spare parts.
Contacting Jabsco/Xylem Customer Support for Toilet Troubleshooting
If you still need help, contact Jabsco/Xylem customer support directly. This is your best option for warranty claims or finding an official dealer. Just be sure to have your model and serial number ready before you get in touch.
