Can You Combine Two Victron Phoenix Units?

How to Connect Multiple Victron Inverters in Parallel

Connecting more than one Victron inverter in parallel is straightforward once you follow three Golden Rules: use clones of the same model, keep their firmware identical, and link them with a clean VE.Bus data chain. When those conditions are met, the machines phase-lock their sine waves and behave like a single, larger inverter—doubling (or tripling) the available wattage so bigger loads start and run without strain. Mix-and-match hardware or a broken communication lead, however, will drive the units out of phase and can collapse the entire AC bus, so absolute uniformity and a healthy RJ45 daisy chain are critical for rock-solid operation.

How VE.Bus Keeps Parallel Victron Inverters in Lock-Step

• What VE.Bus actually is – a proprietary data loop that lets Victron gear—Phoenix, MultiPlus, Quattro—swap timing and status packets dozens of times per second.
• Why it matters in parallel mode – that rapid chatter forces every inverter to line up its AC waveform with the others, so the combined output looks like it came from one giant machine.
• What happens without it – drop the link and each unit free-runs; their waves drift out of phase, hammering one another and any appliance still plugged in. The result can be tripped breakers or even blown power boards.
• How it’s wired – simple RJ45 patch cords daisy-chain the VE.Bus ports; the first and last sockets carry terminators to stop data reflections and keep the loop clean. As long as those connectors stay seated and firmware versions match, the whole stack remains phase-locked and rock-steady.

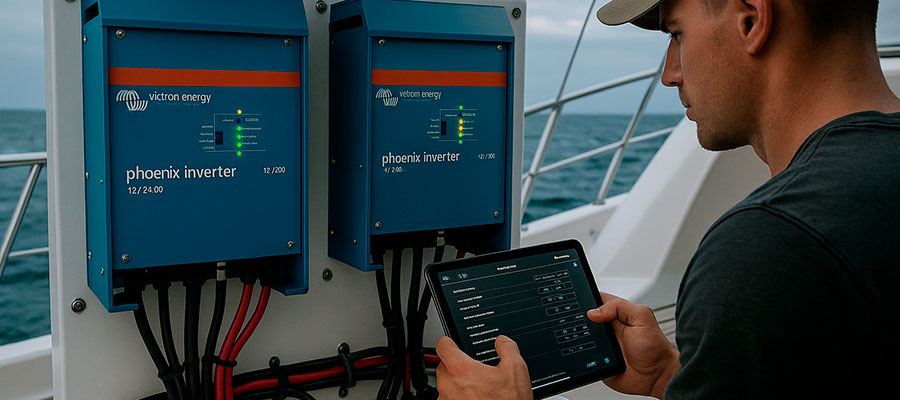

Setting Up Two Victron Phoenix Inverters with a Common Battery Bank

1. Clone your hardware Both units must be the same Phoenix model and firmware build; a 1200 VA can’t be paired with a 3000 VA, and mixed firmware will refuse to sync.
2. Flash identical firmware Use VictronConnect (or an MK3-USB tool) to load the same software revision into each inverter before any cabling begins.
3. Mirror the DC runs Give every inverter its own positive + negative leads to the battery bus. Keep those cables identical in length and gauge so each unit sees the same resistance and pulls an equal share of current.
4. Join the AC side Land both output hots and neutrals onto a common breaker panel or AC busbar; this merges the two waveforms into one feed for your loads.
5. Close the data loop Snap an RJ45 patch cord into the VE.Bus jack on each inverter to create the sync link that phase-locks their sine waves.

Required Hardware for Connecting Victron Inverters in Parallel

To build a rock-solid parallel array, treat every inverter as an interchangeable clone of the next—same Phoenix model number, same firmware. Outfit each unit with its own correctly sized DC breaker and fuse so it can be isolated for service without killing the whole bank. Run identical-length, heavy-gauge battery leads from every inverter to a shared pair of busbars; matching cable length keeps the resistance—and thus the current draw—the same for each machine. On the AC side, land every output on a common bus or junction box so the combined sine waves feed the loads as one big inverter. Close the loop with equal-length RJ45 jumpers in the VE.Bus ports; that data link is what locks all the waveforms in step and keeps the entire cluster humming as a single, larger power source.

What Are the Benefits of Running Victron Multiplus Units in Parallel?

Linking two or more identical MultiPlus units so they work in parallel turns the stack into one oversized inverter-charger and unlocks three standout perks: (1) an immediate jump in usable wattage, (2) automatic load-sharing that spreads amps evenly across every chassis, and (3) built-in resilience—if one module quits, the others keep the lights on. Because extra inverters can be added later, the system scales smoothly from a small off-grid cabin to a blue-water yacht or even a commercial truck fleet facing rising power demands.

Increased Output Capacity with Parallel Victron Inverter Chargers

By coupling two identical MultiPlus 12/3000/120 units in parallel you transform a single 3 kVA inverter-charger into a 6 kVA powerhouse. The increased capacity is felt everywhere: heavier loads start without dimming the lights, the dual chargers shovel twice the current into the battery bank, and PowerAssist can draw more supplemental amperage from shore or generator lines—shrinking recharge times and giving the system far more surge headroom.

Load Sharing and Redundancy in Parallel Multiplus Systems

• Active load balancing – The VE.Bus data loop lets each inverter watch the group’s total draw and pick up its fair share automatically. Pull 4 kW with two identical chassis online and each carries roughly 2 kW, keeping internal temps low and wear even across the stack.
• Automatic redundancy – If one inverter trips or needs maintenance, its partner(s) keep producing AC. You lose some headroom, but critical loads stay live—an instant safety net that single-inverter installs simply can’t offer.

Managing Higher Amp Loads with Multiple Inverters

Combining inverters into a parallel bank creates a single, much larger power plant that shrugs off loads a solo unit would stumble over. The extra head-room supplies the hefty start-up surge a big rooftop AC or pump motor demands and still leaves amperage for a microwave, heater element, or circular saw. In effect, you can run several power-hungry devices together—air-con humming, kettle boiling, tools spinning—and enjoy near-household convenience even when you’re miles from the grid.

Setting Up Split Phase and Three-Phase Systems with Victron Inverters

Parallel stacking is only the first chapter. Two identical Victron inverters can be programmed 180° apart to replicate the 120 / 240 V split-phase service common in North-American homes, while three matched units spaced 120° apart yield a perfectly balanced three-phase supply for big motors and shop equipment. In both cases, VE.Bus firmware locks every waveform into its assigned slot, letting the cluster behave like one seamless generator feeding your panel.

Creating a 120V/240V Split Phase System with Two Multiplus Units

To duplicate the household split-phase supply used in the United States, link two identical MultiPlus-II 48 V 3000 VA inverters. In the Victron tool, assign one unit as Line 1 and the other as Line 2. VE.Bus offsets the second unit’s AC wave by half a cycle, producing two separate 120-volt legs that read 240 volts across the pair. Feed this combined output into a standard breaker panel and you can power everyday 120-volt loads and heavier 240-volt appliances in an RV, boat, or off-grid home while staying compatible with shore power or a generator.

Configuring Three-Phase Power with Multiple Victron Inverters

To build three-phase service for big motors or commercial gear, tie together three matching Victron inverters. Assign them as phase legs L1, L2, and L3 in the configuration software, then let VE.Bus shift each unit’s AC wave 120 degrees apart. The result is a balanced three-phase feed that a single-phase inverter could never provide, ready to drive heavy machinery without voltage sag or waveform clash.

Programming Phase Relationships Through Victron Energy Firmware

• Manual phase mapping – The installer must tell each inverter which phase it will handle; nothing is auto-assigned at power-up.
• Use the right tool – For a simple parallel stack open VE.Bus Quick Configure; for split-phase or three-phase jobs launch VE.Bus System Configurator.
• Set roles – Flag one unit as the lead (L1) and tag the others as followers on L2 and L3.
• Store and lock – Save the settings; with the VE.Bus link intact, all inverters continually fine-tune their waveforms to keep the 180° or 120° phase gap rock-steady.

Combining Different Victron Inverter Models in Parallel

• Clone-only policy — Every inverter in the stack must carry the same model badge, DC voltage, and VA rating; a Multiplus-II 48 / 3000 will only parallel happily with another Multiplus-II 48 / 3000.
• Why it matters — Identical firmware and hardware let the units share amperage evenly and stay phase-locked; mixing sizes or series upsets synchronisation and can crash the AC bus.
• Bottom line — Build your array from carbon-copy inverters or expect load-balancing glitches, wave clashes, and general instability.

Compatibility Between Multiplus, Multiplus-II and Quattro Models

• Stick to one generation. Original MultiPlus inverters can co-operate only with other units from the same series; mix them with newer hardware and the VE.Bus network refuses to sync.
• MultiPlus-II pairs with its own kind. A MultiPlus-II will parallel or phase-shift only with another identically coded MultiPlus-II—never with the first-generation model.
• Quattro runs with Quattro, full stop. Because of its twin AC-input design, the Quattro family is meant to form stacks solely with identical Quattros, ideal when you need to juggle shore power and a generator in the same system.

Can You Mix Phoenix Inverters with Multiplus Inverter Chargers?

Phoenix inverters are strictly stand-alone devices, so they cannot be joined to a MultiPlus or Quattro stack. They have no built-in charger, no internal transfer relay, and—most critically—no way to speak the VE.Bus language that keeps a parallel or three-phase cluster in step. Trying to wire a Phoenix alongside MultiPlus or Quattro units will leave the inverters out of sync and the whole system unstable.

Troubleshooting Common Issues with Parallel Victron Setups

A Victron cluster that was working yesterday but suddenly falters today is almost always tripped up by one of three things:

1. Configuration slip-up – an incorrect setting or mismatched firmware after an update.
2. Wiring hiccup – a loose lug, unequal DC leads, or a missed neutral link on the AC bus.
3. VE.Bus break – a damaged RJ45 cable or missing terminator that knocks the data loop offline.

Isolating the problem to one of these categories usually points straight to the cure.

Resolving Communication Problems Between Parallel Units

• Seat every plug. Snap each RJ45 fully into its VE.Bus jack; half-seated connectors are the number-one cause of lost data.
• Install the stoppers. Fit terminator plugs into the unused VE.Bus ports on the first and last inverter in the daisy-chain; without those end caps, the loop stays open and communication fails.
• Prove the cable. Swap in a new patch lead to rule out an internal break or corroded pin.
• Match the firmware. Use VEConfigure to confirm every inverter is on the same software build- one odd version can silence the entire bus.

Fixing Uneven Load Distribution Across Multiple Inverters

• Start the diagnosis at the battery end: unequal cable runs are the usual reason one inverter carries more load than its partners.
• Measure every positive and negative lead from the main bus bar to each inverter; they must match in both length and wire gauge.
• Even a few centimetres of extra copper—or a different cable size—alters resistance, letting the shorter, lower-resistance path draw extra amperage and overwork that unit.
• Remedy by cutting new, identical cables (or adding equal extensions) so every inverter “sees” the same resistance.
• Finish by cleaning each lug, applying an anti-oxidant compound, and tightening to the specified torque; loose or corroded joints compound imbalance problems.

Addressing AC Input and Transfer Switch Complications

In parallel or multi-inverter AC systems, it's essential that all devices draw power from a single shore power source—such as a 50-amp AC supply. A frequent issue in such configurations is the failure of the internal transfer relay in one of the inverters, which can interrupt the entire system’s AC power delivery. When diagnosing AC input faults, it's critical to confirm that both input and output relays are functioning properly on every unit. Additionally, the total current limit for shore input must be configured at the system level. This ensures that the combined load of two or more inverters doesn’t exceed the capacity of the shore cord or generator. Setting this limit via the control panel or a GX device helps avoid overloads and ensures safe, stable operation under shared power conditions.
