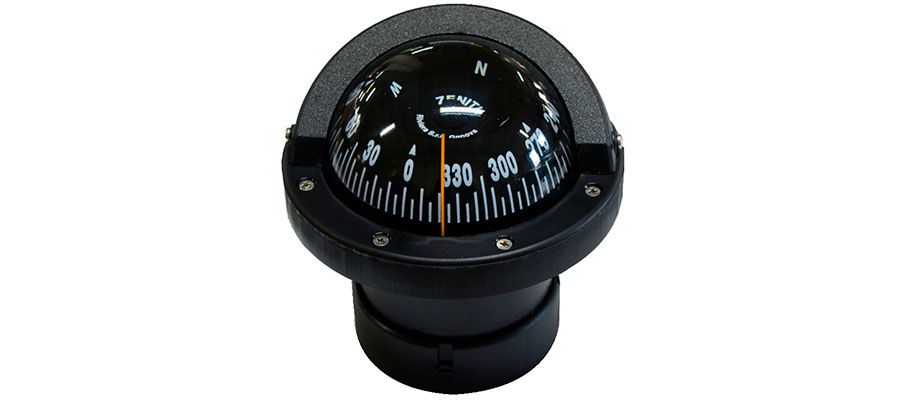

The liquid inside a marine compass is far more than just a simple fluid; it is a critical component that ensures the instrument provides a steady and accurate reading, which is essential for safe navigation and sailing. This clear liquid is specially chosen for its unique properties that allow the compass to function reliably in a demanding marine environment.
What Type of Fluid Is Used in a Marine Compass?
Most modern fluid-filled compasses use a type of highly purified, low-viscosity mineral oil or solvent. The exact formulation is chosen to be completely clear and to remain stable across a wide range of temperatures.
Common Fluids Used in Marine and Boat Compasses
While different brands have their own specific formulations, the most common fluids used in compasses fall into these categories:
- Purified, odorless mineral spirits
- A highly refined, clear kerosene-type fluid
- Specialty synthetic hydrocarbon fluids (like Isopar L).
Why Mineral Oil and Isopar L Are Preferred for Magnetic Compasses
These specific liquids are chosen for several key reasons:
- Viscosity: They are thin enough to allow the compass card to pivot freely but thick enough to dampen excessive swinging.
- Temperature Stability: They will not freeze in cold climates or expand excessively and cause leaks in the heat.
- Inertness: They will not corrode the internal components of the compass or cloud the plastic dome.
Different Fluids for Different Compass Manufacturers
It is crucial to use the correct fluid specified by the manufacturer. Using the wrong fluid can permanently damage a new compass or an old compass. For example, Ritchie Navigation specifies a particular fluid for all their models, from small boat compasses to a large binnacle compass, and it is not the same as the fluid used by other brands like Plastimo or Danforth.
How to Refill or Replace Fluid in Your Marine Compass
Topping up or replacing the liquid in your compass is a common and essential maintenance task, especially when dealing with an old compass or one that has developed a leak. While the process is straightforward, it requires patience and a clean workspace to avoid introducing new air bubbles or contaminants into the fluid. Taking the time to do it correctly is a key part of any compass repair.
Step-by-Step Guide to Adding Fluid to a Ritchie Compass
Refilling a Ritchie compass is a straightforward process:
- Locate the small fill screw on the compass housing.
- Tilt the compass so the fill hole is at the very top. This allows any air to escape.
- Carefully remove the screw.
- Slowly and gently add the correct Ritchie fluid until the dome is completely full.
- Replace the fill screw and its gasket. Do not overtighten.
Dealing with Air Bubbles in Your Compass Fluid
Not all air bubbles are a sign of trouble. It is important to understand the difference between a normal expansion bubble and a problematic leak bubble.
- The Normal Expansion Bubble: Most fluid-filled compasses are designed to have a small, intentional bubble. This bubble will expand in cold weather (as the liquid contracts) and shrink or disappear in warm weather (as the liquid expands). Its purpose is to absorb this thermal expansion without causing the seals to leak. If you have a stable, dime-sized bubble, it is likely normal.
- The Problematic Leak Bubble: This type of bubble is a symptom of a problem. It will be noticeably larger than a dime and may appear to grow over time, regardless of the temperature. A large, persistent bubble means that fluid is escaping from a failed seal, and it's a clear sign that your compass needs repair before it can be topped up.
When to Completely Replace Old Fluid vs. Just Topping Up
| Situation | Action Required |
| Clear fluid, large bubble | Top up with the correct fluid after fixing the leak. |
| Fluid is yellow or cloudy | This is common in an old compass. Drain the old liquid completely and refill with fresh, correct fluid. |
| Unknown or wrong fluid inside | Drain completely and refill to prevent damage. |
Why Is Fluid Important in a Magnetic Compass for Navigation?
The fluid inside a compass serves two critical mechanical functions: it dampens the movement of the compass card and lubricates the pivot, allowing for accurate readings while sailing.
How Compass Fluid Affects Magnetic Field and Navigation Accuracy
A common misconception is that the fluid interacts with the magnetic field. This is incorrect. The fluid has no effect on the magnetic properties of the compass; its role is purely to control the physical movement of the compass card, ensuring it can settle on a heading quickly and accurately.
The Role of Fluid in Dampening the Compass Card Movement
Without fluid, the compass card would swing back and forth wildly with every movement of the boat, making it impossible to read. The fluid acts as a shock absorber, slowing down these oscillations so the card remains stable and readable even in rough seas.
Differences Between Fluid-Filled and Dry Compasses
| Feature | Fluid-Filled Compass (Marine) | Dry Compass (Hiking) |
|---|---|---|
| Readability | Very stable and easy to read in motion. | Needle swings and is hard to read in motion. |
| Durability | The fluid lubricates the pivot, reducing wear. | The pivot can wear out more quickly. |
| Primary Use | Navigation on moving platforms (boats, planes). | Basic direction-finding on stable ground. |
Common Problems with Compass Fluid and How to Fix Them
Most compass issues are typically related to its fluid—either a lack of it or the presence of the wrong type.
Identifying and Repairing Compass Fluid Leaks
- The Sign: The main sign of a leak is a large air bubble that does not disappear, or an oily residue on the compass housing.
- The Fix: A leak usually comes from the fill plug gasket or the main housing seal. To perform a compass repair, you need to replace the damaged gasket using a service kit, then top up with the correct fluid.
Troubleshooting Bubbles in Your Compass Fluid
Not all bubbles are a problem. It's important to know the difference.
| Bubble Type | Meaning | Action Required |
|---|---|---|
| Small (dime-sized) | Normal. This is a compensation bubble for thermal expansion. | Do nothing. |
| Large or growing | A leak. The fluid level is dropping. | Find and fix the leak, then top up the fluid. |
| Appears in cold, vanishes when warm | Normal. This is thermal contraction of the liquid. | Do nothing. |
Consequences of Using the Wrong Type of Fluid
Using the wrong fluid is the fastest way to destroy your compass.
- Damage to materials: The wrong liquid can attack the plastic dome, the card, and the internal seals.
- Cloudiness: The fluid can become cloudy or yellow, making it difficult to read.
- Freezing: Household liquids like alcohol or water will freeze in the cold, damaging the compass.
- Improper Dampening: Fluid that is too thick or too thin will make the card either too slow or too unstable.
Where to Buy Compass Fluid for Different Compass Brands
To ensure the longevity of your compass, always try to use the fluid recommended by the manufacturer.
Ritchie Compass Fluid Options: Pint Size and Smaller Quantities
Ritchie Navigation, a leading manufacturer, offers its proprietary fluid in various volumes. You can purchase a small vial for topping up or a pint-sized container, which is enough for a full service of several compasses or a large binnacle compass.

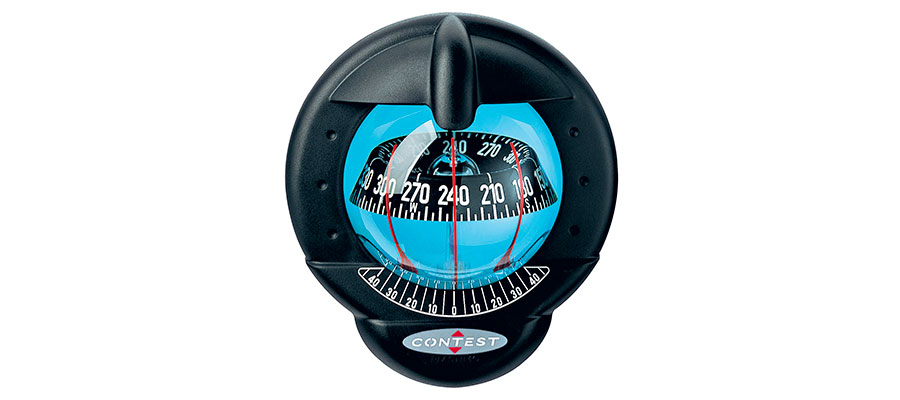

Finding Fluid for Plastimo, Danforth, and Plath Compasses
For compasses from other brands like Plastimo or Danforth, the best solution is to check with an authorized dealer or consult the user manual. They will specify the exact type of fluid required, which can often be purchased from them.
Compass Fluid Alternatives from West Marine and Other Retailers
Major marine supply stores often sell a "universal" compass fluid under their own brand. This is typically a high-grade, odorless mineral spirit that is safe for most compasses used on modern boats and serves as a good alternative.
Understanding Specialty Compass Fluids and Their Properties
The chemical composition of the liquid is critical. Not all clear fluids are the same, and choosing the correct one ensures the compass's accuracy, longevity, and reliability in all conditions.
Odorless Mineral Spirits vs. Traditional Compass Oil
Modern fluid-filled compasses are almost always designed for use with purified, odorless mineral spirits. Some very old compass models may have used a traditional compass oil. It is not recommended to mix them.
Synthetic Fluids and Their Advantages for Modern Compasses
For high-end or expedition-grade compasses, synthetic fluids offer superior performance due to several key advantages:
- Wider Temperature Range: They function perfectly in extreme cold and heat, resisting freezing or forming large expansion bubbles, which is ideal for high-latitude sailing.
- Long-Term Clarity: They are extremely resistant to UV degradation, meaning they will not turn yellow or cloudy even after years of sun exposure on a binnacle compass.
- Consistent Dampening: Their viscosity remains more stable across temperature shifts, providing predictable and reliable performance when you need it most.
Light Oil and Kerosene: Are They Suitable for Your Compass?
A clear warning: Under no circumstances should you ever use a household or workshop fluid to top up or refill your compass. Using the wrong fluid will cause irreversible damage.
- Why Not Use Lamp Oil or Kerosene? Aggressive solvents in these products can immediately cause crazing (fine cracks) on the acrylic dome, making it impossible to read.
- Why Not Use Other Oils (Baby Oil, WD-40)? These fluids can dissolve the delicate adhesives and paints used on the compass card and will cause the rubber expansion seals to swell, leading to leaks and failure.
- The Result: Using any of these substances is the fastest way to destroy your instrument and force you to buy a new compass.
