How Long Does It Take Isotherm Refrigerator to Cool?

How Long Does It Actually Take for an Isotherm Refrigerator to Cool Down?

While general estimates are useful, the actual time it takes for your specific Isotherm refrigerator to get cold depends entirely on its environment and how you use it. Understanding the ideal timeframes and the variables that can affect them is key to managing your 12V refrigeration system effectively.

Typical Cooling Timeframes for Isotherm Cruise Models

Under ideal conditions—meaning the refrigerator is empty, has good ventilation, and the ambient temperature is around 20-25°C (68-77°F)—most Isotherm Cruise models will reach a food-safe temperature of approximately 4°C (40°F) in about 4 to 6 hours. The freezer compartment, being smaller and having direct contact with the evaporator plate, will feel cold much faster, often within the first 60-90 minutes. However, this should be considered a best-case scenario.

Factors Affecting Cooling Speed in Your Isotherm Fridge

1. Ambient Temperature: The hotter it is outside or inside your boat or RV cabin, the longer the refrigerator will take to cool down. The system has to work harder to remove heat from the insulated box when it is constantly absorbing warmth from its surroundings.
2. Ventilation: This is the most critical factor. The compressor system removes heat from the inside and dissipates it through condenser coils on the back. If these coils are in an enclosed cabinet with no airflow, the heat gets trapped, dramatically reducing cooling efficiency and increasing cooldown time.
3. The Initial Load: An empty refrigerator will always cool down the fastest. Placing a large amount of warm food and drinks inside adds significant thermal mass that the system must also cool, which can easily double or triple the total time needed.
4. DC Voltage: The 12V compressor needs a stable voltage to run at its peak speed. If your battery bank is low or the wiring to the fridge is too small, the resulting voltage drop will cause the compressor to run slower, extending the cooling time.
5. Thermostat Setting: Setting the thermostat to its coldest possible setting will naturally increase the time it takes for the unit to reach that lower target temperature and shut off.

Comparing Cooling Performance Between Isotherm and Other 12V Refrigeration Systems

• When compared to other premium 12V compressor refrigerator brands, such as Dometic or Vitrifrigo, the cooling performance of an Isotherm fridge is very similar. Most high-end brands use the same or comparable high-efficiency Danfoss/Secop compressors, which are known for their reliability and performance.
• Compared to older 3-way absorption refrigerators (which run on propane, AC, or DC), 12V compressor systems like Isotherm cool down significantly faster. An absorption fridge can often take a full 24 hours to reach a stable cold temperature, whereas a compressor fridge achieves this in a matter of hours.
• While initial cooling speed is similar among top brands, Isotherm's use of features like Smart Energy Control in some models can improve overall long-term efficiency by managing compressor speed, though this has less effect on the initial pull-down time from a warm start.

Common Isotherm Fridge Cooling Problems and Troubleshooting Tips

When your Isotherm refrigerator fails to cool as expected, the issue can typically be traced to one of three areas: the power supply to the unit, the compressor and cooling system itself, or the thermostat controls. By systematically checking each of these areas, you can often diagnose and resolve the problem without needing to call a technician.

Why Your Isotherm Refrigerator Isn't Cooling Properly

• The unit is not receiving power, or the voltage is too low.
• Poor ventilation is causing the compressor to overheat and shut down prematurely.
• The thermostat is set too warm or has failed.
• The compressor's electronic control module has a fault.
• The sealed system has lost its refrigerant charge (this is the least common issue).

Compressor Issues: Symptoms and Solutions

• Symptom: The compressor does not attempt to run at all. You hear no clicking or humming. Solution: This is most likely a power supply issue. Check the 12V breaker, the fuse at the unit, and use a multimeter to confirm that proper voltage is reaching the electronic control module.
• Symptom: The compressor runs continuously, but the inside of the refrigerator does not get cold. Solution: This usually indicates a problem with the sealed refrigerant system, such as a leak. This type of problem is not a DIY fix and will require service from a qualified refrigeration technician.
• Symptom: The compressor tries to start (you hear a "click") but immediately shuts off, repeating this cycle every minute or so.
• Solution: This is a classic symptom of low voltage. The compressor requires a surge of power to start, and if the voltage drops too much under this load, the control module will shut it down to protect the motor. Check your battery charge level and inspect all wiring for undersized cables or loose connections.

Thermostat and Temperature Control Troubleshooting

If the compressor runs but cooling is poor, the thermostat may be faulty. A simple diagnostic test is to turn the thermostat knob to its coldest setting. If this causes the compressor to start running, it indicates the thermostat is functioning on some level. For a more advanced test, you can bypass the thermostat by disconnecting its two wires from the electronic control module and jumping the terminals with a small piece of wire. If this forces the compressor to run continuously, the thermostat has failed and needs to be replaced.

Optimizing Your Isotherm Cruise 130 for Faster Cooling

While the following tips apply to all Isotherm models, they are especially crucial for getting the best performance from larger, popular units like the Cruise 130. Optimizing your refrigerator focuses on three key areas: proper installation, managing the surrounding environment, and developing good usage habits.

Proper Ventilation and Installation Requirements

• Your refrigerator cabinet must have vents to allow for airflow. This means at least one lower vent for cool air to enter and one upper vent for the hot air generated by the condenser to escape.
• The space directly behind and above the refrigerator should be kept as open as possible to encourage a natural convection airflow path.
• For installations in very warm locations, adding a small 12V computer-style fan to the upper vent to actively pull hot air out will dramatically improve cooling performance and efficiency.
• Never place insulation or store items directly against the black condenser coils on the back of the unit.

Managing Ambient Temperature Impact on Cooling Performance

In very hot climates or during a heatwave, you can help your refrigerator by reducing the temperature of the space around it. Running your boat or RV's air conditioning is the most effective method. Alternatively, opening hatches to create a cross-breeze in the galley or using reflective covers on nearby windows to block direct sunlight can also help lower the ambient temperature and reduce the load on the cooling system.

Best Practices for Loading Your Isotherm Fridge

1. Whenever possible, pre-cool food and drinks in a home refrigerator before loading them into your Isotherm unit. This drastically reduces the initial cooldown time.
2. Avoid over-packing the refrigerator. Leave space between items to allow cold air to circulate freely from the evaporator plate to the rest of the compartment.
3. Keep the door open for as short a time as possible. Know what you want before you open it.
4. Use frozen water bottles or blue freezer packs to act as a "cold bank." They help stabilize the internal temperature and reduce compressor run time.

Power Consumption vs. Cooling Efficiency in Isotherm Refrigerators

There is a direct relationship between cooling efficiency and power consumption. A more efficient refrigerator is one that can remove heat faster and hold its temperature longer. This means the compressor will run for shorter periods and less frequently, which directly translates to lower overall energy use and longer life from your battery bank.

Understanding 12V Power Supply Requirements

• Isotherm refrigerators are designed to run on a stable 12V or 24V DC power source.
• The electrical wiring running from your battery or distribution panel to the refrigerator must be of a sufficient gauge to handle the current draw without a significant voltage drop. Using wires that are too thin is a primary cause of poor cooling performance.
• The power supply must be protected by an appropriate fuse or circuit breaker, as specified in the installation manual for your specific model (typically 15A for most Cruise models).

Shore Power Connections and Cooling Performance

When your vessel is connected to shore power, your onboard battery charger provides a constant, stable voltage to the system (often 13.5V or higher). This is the ideal condition for your refrigerator's compressor, allowing it to run at maximum speed and performance. This is why you will often notice your refrigerator cools down fastest when you are plugged into the dock.

Battery Life and Cooling Cycles for Isotherm Models

1. Your refrigerator's compressor does not run 100% of the time. It cycles on and off as needed to maintain the temperature set by the thermostat.
2. The primary drain on your battery bank is the cumulative run time of these cycles.
3. A well-installed refrigerator with good ventilation and insulation will hold its temperature for longer, resulting in shorter and less frequent compressor cycles, thus conserving battery power.
4. Adding a layer of rigid foam insulation board to the outside of the refrigerator cabinet is a popular and effective modification to reduce cycle times.

Isotherm Refrigerator Maintenance to Improve Cooling

Performing simple, regular maintenance is the best way to ensure your Isotherm refrigerator continues to provide optimal cooling performance year after year. Most tasks are simple and only need to be done once or twice a season.

Cleaning the Condenser and Evaporator for Better Performance

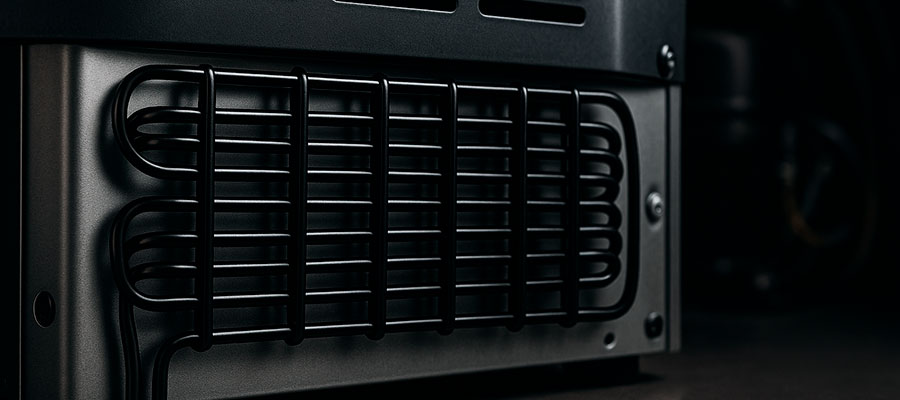

• The Condenser: At least once a year, use a soft brush or a vacuum cleaner to gently remove all accumulated dust, pet hair, and debris from the black condenser coils on the back of the unit. A layer of dust acts as an insulator and severely hinders the fridge's ability to shed heat.
• The Evaporator: The freezer plate inside the refrigerator compartment should be defrosted whenever the ice buildup becomes thick. A thick layer of ice also acts as an insulator, making it difficult for the plate to absorb heat from the food compartment.

Checking Refrigerant Levels and Insulation

An Isotherm refrigerator contains a sealed refrigerant system, similar to your home refrigerator. There is no way for a user to check or top off the refrigerant level. If you suspect a refrigerant leak (a key symptom is the compressor running constantly but producing no cooling), the unit will require professional service. You can, however, inspect the foam insulation around the cabinet to ensure it is dry and intact, and check that the door seal is clean and making full contact to prevent cold air from escaping.

When to Call a Professional for Isotherm Repair

1. If you have confirmed the unit is receiving proper voltage, but the compressor will not run or runs constantly with no cooling effect.
2. If you suspect a refrigerant leak (you may find an oily residue near the cooling unit).
3. If the electronic control module has failed and needs to be replaced.
4. If you are not comfortable or experienced with troubleshooting 12V electrical systems.

Comparing Cooling Times: Isotherm Cruise vs. Isotherm SP Refrigerators

Isotherm offers different types of cooling units, and their design can impact installation flexibility and cooling performance. The two main types are the standard "Cruise" series and the remote-compressor "SP" series.

Cooling Unit Differences Between Models

• Cruise Models: These are self-contained units where the compressor is mounted directly on the back of the refrigerator cabinet. They are simple to install, but their cooling performance is highly dependent on the quality of the passive ventilation in the cabinet where they are mounted.
• SP (Self-Pumping) Models: These are "split" systems where the compressor is separate from the refrigerator box and connected by long, flexible refrigerant lines. This allows the heat-producing compressor to be mounted in a remote location with superior ventilation, such as a lazarette or engine room. This separation often results in better efficiency and faster cooling compared to a standard unit in a poorly ventilated cabinet.

Freezer Compartment Cooling Efficiency

The freezer compartment in most Isotherm Cruise refrigerators is an exposed evaporator plate, often bent into a small box shape. Because the refrigerant flows directly through this plate, its cooling efficiency is very high, which is why it gets cold to the touch very quickly. However, its ability to cool the rest of the refrigerator compartment relies on air circulating around it. If the freezer plate becomes heavily frosted with ice, or if you pack items tightly against it, it will block this airflow and significantly reduce the cooling performance of the main refrigerator section, even while the freezer itself feels ice-cold.
