A marine toilet, often called a "head" in nautical terms, is a crucial piece of equipment for any boat with a cabin. Unlike a household toilet, a boat toilet is designed to work in a dynamic marine environment, use minimal flush water, and handle waste safely and effectively. Jabsco, a brand by Xylem, is one of the most common manufacturers of both manual and electric toilet systems. Understanding how a manual head works is key to operating it correctly and performing basic maintenance. This guide will walk through the components, flushing process, installation considerations, and common troubleshooting steps for Jabsco marine toilets.
What Are the Basic Components of a Jabsco Marine Toilet?
A Jabsco toilet integrates a porcelain bowl with a robust manual pump system. Understanding the key individual parts inside this system makes troubleshooting and maintenance much simpler.
Key Parts of the Jabsco Manual Toilet Pump Assembly
The pump is the engine of the toilet. Its operation relies on a few core components working together:
- The Pump Handle: This provides the leverage for the user to operate the pump.
- The Piston and Pump Chamber: Moving the handle drives a piston up and down inside the main pump chamber, creating the suction and pressure needed to move water and waste.
- The Flush Control Lever: This small switch directs the pump's action. In one position, it draws in rinse water; in the other, it only pumps out the bowl's contents.
- Seals and O-ring: Internal rubber seals, including a main o-ring on the piston, are critical for allowing the pump to build pressure. Worn seals are a common source of inefficiency.

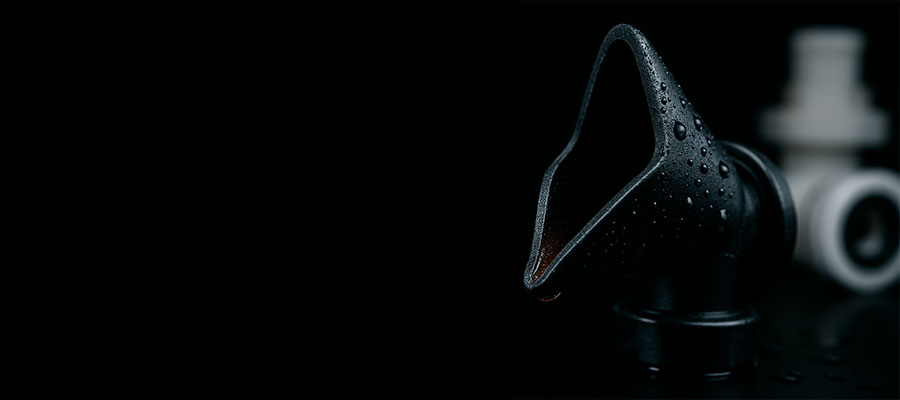

Understanding the Joker Valve and Its Function
The joker valve is a uniquely shaped, one-way rubber valve located at the discharge outlet of the pump. Its design, which resembles a duck's bill, is engineered to be forced open by the pressure of waste being pumped out. It then immediately snaps shut, effectively blocking anything from flowing back into the toilet bowl from the sanitation hose. A functioning joker valve is essential for preventing foul odors and backflow.
Inlet and Outlet Valves in the Marine Head System
The toilet itself is just one part of the boat's sanitation system, which is controlled by crucial external valves called seacocks.
- Inlet System: A hose connects the toilet's pump to an inlet seacock. When this valve is open, the pump can draw in sea water for flushing. Closing it cuts off the water supply and is a vital safety step.
- Outlet System: A discharge hose runs from the toilet's outlet to a holding tank (waste tank) or to another seacock for overboard discharge. These seacocks must be made of marine-grade, corrosion-resistant material and should be operated regularly to prevent them from seizing.
How Does the Jabsco Manual Toilet Flushing System Work?
The flushing system is a hands-on, two-stage process. By directing the pump's action with a simple lever, the user controls both the intake of rinse water and the discharge of waste.
The Manual Pump Mechanism Explained
Operating the manual pump follows a specific sequence. The mechanism is designed to perform two different actions using the same pumping motion.
- Select "WET" Flush: First, move the flush control lever to the "WET" (or "FLUSH") position. This engages the intake valve.
- Pump to Rinse: Each pump of the handle now draws rinse water into the pump chamber and then pushes it into the toilet bowl, washing down the sides.
- Select "DRY" Flush: Once the bowl is clean, switch the lever to the "DRY" (or "EMPTY") position. This closes the water intake.
- Pump to Empty: Now, pumping the handle only engages the discharge function, removing all the water and waste from the bowl and sending it down the sanitation hose. After use, many models require you to twist the pump handle to lock it.

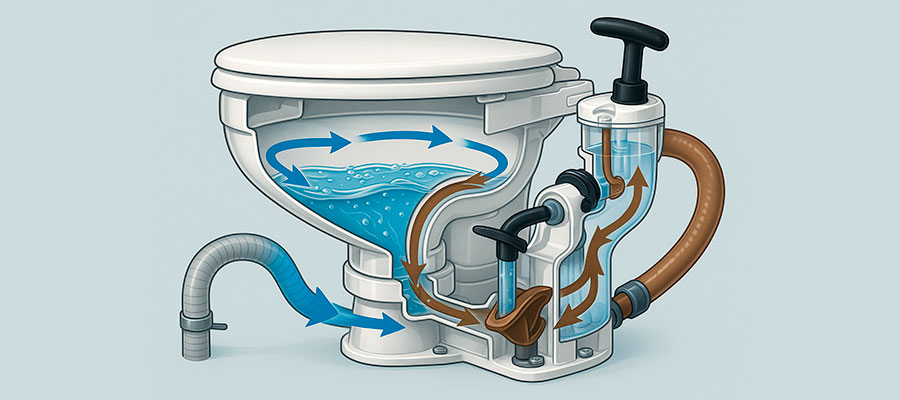

Water Flow Path Through the Marine Toilet
Visualizing the path of water helps in understanding how the whole system connects and functions.
- Water is drawn from the sea (or fresh water tank) through the open inlet seacock.
- It travels up the inlet hose directly to the pump assembly.
- The pump then forces the water into the toilet bowl.
- From the bowl, waste and water are drawn back into the discharge side of the pump chamber.
- The pump pushes the waste through the joker valve and out the discharge port.
- Finally, it travels along the sanitation hose to either the holding tank or an overboard discharge seacock.
Understanding the Flush Cycle in Jabsco Toilets
Knowing when to use each cycle is key to using a marine toilet correctly and preventing odors or spills.
- The "Wet" Cycle is for cleaning. Its purpose is simply to add enough water to the bowl to effectively rinse it and carry the waste away.
- The "Dry" Cycle is for safety and hygiene. Its purpose is to completely empty the bowl and connecting hoses of water. This is critical before the boat is underway, as it prevents water from sloshing out. It also helps to minimize odors by leaving the system empty.
What's the Difference Between Jabsco Manual and Electric Marine Toilets?
The primary difference lies in convenience versus simplicity. An electric head automates the flushing process, while a manual head offers a robust, power-free solution.
Manual Pump vs. Electric Macerator Systems
A manual system relies entirely on the hand pump operated by the user to draw in water and pump out waste.
An electric system uses a powerful pump motor activated by a switch. Most electric heads incorporate a macerator, which has sharp blades that grind solid waste and toilet paper into a fine slurry. This makes the waste easier to pump and significantly reduces the risk of clogging the outlet hoses.
Power Requirements for Jabsco Electric Marine Toilets
Electric toilets require a direct connection to the boat's 12-volt or 24-volt DC electrical system. They need to be on a dedicated circuit with the correct size fuse or circuit breaker to handle the high but brief electrical load of the pump motor. The water intake is typically managed by an electric solenoid valve that opens automatically when the flush button is pressed.
When to Choose Manual vs. Electric for Your Boat
The best choice depends on your boat and your priorities. A side-by-side comparison can make the decision clearer.
| Feature | Manual Toilet | Electric Toilet |
| Operation | Requires physical pumping by hand. | Push-button electric operation. |
| Key Advantage | Ultimate reliability; no power needed. | Maximum convenience and ease of use. |
| Pros |
Lower initial cost.Simple mechanics, easy to repair. Conserves battery power. |
Macerator grinds waste and prevents clogs. Effortless operation is better for guests. More like a household toilet. |
| Cons | Can be difficult for some guests to use. Requires physical effort. | Requires a robust electrical system.More complex and costly to buy and repair. Motor can be noisy. |
| Ideal For | Boaters focused on simplicity, energy conservation, and budget. | Boaters who prioritize comfort and convenience and have an adequate power supply. |
How Do You Install a Jabsco Marine Toilet Properly?
Correct installation is the most important factor in ensuring your toilet works safely and without odors. Always follow the manufacturer's specific instructions.
Connecting to Seawater Inlet and Holding Tank
The toilet has two main connections: an inlet hose that brings in rinse water, and an outlet hose that carries waste away. It is critical to use only high-grade, wire-reinforced sanitation hose designed specifically to prevent odor from escaping through the hose material itself. Each hose connection should be secured with two stainless steel hose clamps.
Proper Hose Installation and Vented Loop Requirements
If the rim of the toilet bowl is ever below the boat's waterline (at the dock or when heeled over), you must install vented loops on both the inlet and outlet hoses. A vented loop is a raised section of hose that goes well above the waterline, with a small one-way air valve at the top. This simple device prevents water from siphoning through the toilet and flooding your boat, which is a major safety risk.
Positioning the Toilet Below the Waterline Considerations
For any toilet installed below the waterline, it is a critical safety rule to always close both the inlet and outlet seacocks when you are not on the boat. This provides a positive shut-off and acts as a final line of defense against flooding in case a hose or a toilet component fails.
What Are Common Problems with Jabsco Marine Toilets?
Most issues that arise with a manual Jabsco toilet are predictable and can be fixed with basic tools.
Troubleshooting Clogs and Blockages
Clogs are almost always caused by using too much toilet paper or flushing something that should not be in a marine toilet. The first step is to use the "DRY" pump setting and pump firmly to try and force the blockage through. If this doesn't work, you will have to disconnect the outlet hose to clear it manually.
Fixing Leaking Valves and Seals
- If water is slowly seeping back into the bowl after flushing, the joker valve is worn and needs to be replaced.
- If water leaks from the base of the toilet, the large seal between the bowl and the pump base has failed.
- If water leaks from the pump handle while pumping, the main seal or o-ring on the piston assembly is worn out.
Addressing Pump Issues and Failed Components
When the pump handle becomes very difficult to move, or when it feels like you are pumping without moving much water, the internal pump components need service. This is usually caused by mineral buildup or worn-out seals. A standard service kit from Jabsco contains all the necessary replacement parts to rebuild the pump to full efficiency.
How Do You Maintain a Jabsco Manual Marine Toilet?
A little preventative maintenance goes a long way in keeping your marine toilet working reliably.
Regular Servicing of the Pump and Joker Valve
It is good practice to service the pump assembly every one to two years, depending on how much it is used. A service kit includes a new joker valve and all the critical seals and gaskets. This one-hour job can prevent almost all common pump-related problems.
Winterizing Your Marine Toilet System
If your boat is stored in a freezing climate, you must winterize the toilet system to prevent water from freezing and cracking the pump housing.
- Close the water inlet seacock.
- Flush the toilet bowl with fresh water several times.
- Pump the bowl completely dry using the "DRY" cycle.
- Pour about a liter of non-toxic propylene glycol antifreeze into the bowl.
- Pump the antifreeze all the way through the system until the colored antifreeze comes out the discharge end. This protects the pump, hoses, and valves.
Recommended Cleaning Products and Procedures
Never use chlorine bleach, household drain cleaners, or other harsh chemicals in your marine toilet. These products will destroy the rubber seals and valves, causing premature failure. Use only products specifically formulated for marine toilets, or use simple white vinegar, which is effective at dissolving mineral deposits without damaging the system's components.
