Installing a Victron DC to DC charger in your power system helps you safely charge house batteries from your alternator , especially with newer smart alternator setups. Whether you're outfitting a van, RV, or boat, the right DC-DC charger installation ensures you get clean power, longer battery life, and no engine-start surprises. If you want to install an efficient charging setup, this guide is for you. This works especially well in DIY solar setups where power management is critical.
What is a Victron Orion DC-DC Charger and Why Do You Need One?
A DC-DC charger bridges the gap between your start battery and house battery bank , safely converting power as you drive. If you’ve got lithium batteries , a smart DC to DC charger like the Orion-Tr Smart or Orion XS is a must. These units manage battery charging with precision. Models like the Victron Orion-Tr and Victron Orion DC-DC charger work across different platforms, including chassis -mounted systems, campervans, and marine setups.
Understanding DC-DC Chargers vs. Traditional Battery Chargers
A battery charger plugged into shore power works when you're stationary. A DC-to-DC charger works while you're driving. It's wired directly to the battery , uses the truck battery to the DC-DC , and handles variations in input voltage from the alternator. The converter inside ensures your battery voltage stays within safe levels. When you install a DC-DC charger , you're enabling true mobile charging. A good charger to charge your leisure battery even while moving.
The difference becomes more important when you're off-grid or traveling frequently. Unlike standard charger types that require AC input, a dc-dc charger takes power directly from your vehicle’s electrical system. This makes it ideal for use with starter battery systems found in vans, trucks, and boats.

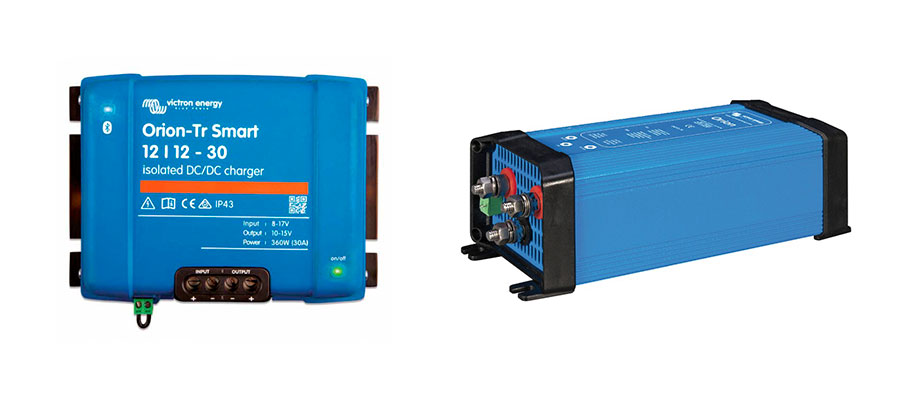

Different Victron Orion Models: Orion-TR, Orion-TR Smart, and Orion XS
- Orion-Tr : Simple, non-programmable, great for lead acid .
- Orion-Tr Smart : Adds Bluetooth, programmable settings via Victron Connect .
- Orion XS : The new Victron model with improved efficiency and compact size. A modern converter for advanced charging profiles. Great for any DC-DC charger install where space and performance matter.
Each Victron Orion model has specific advantages depending on the type of your battery, usage habits, and technical preferences. For example, if you want full control over charge current and charging stages, the Orion-Tr Smart is the best choice. It allows you to fine-tune settings using the Victron Energy app and monitor real-time data about your battery bank 's health.
Benefits of Using a Smart DC-DC Charger for Your Battery System
Smart features mean smarter charging. Benefits include:
- Works with LiFePO4 batteries and other lithium chemistries
- Avoids voltage drop from long cable runs
- Pairs well with solar panels , inverters , and battery banks
- Advanced connector options for clean installs
- Supports advanced DC-DC charger applications like dual-bank charging or charging while the engine is running
By choosing a smart dc-dc charger , you’re not just getting a device — you're investing in a system that adapts to your needs. Whether you're powering lights and appliances in your van or managing a complex marine battery bank, these chargers provide intelligent energy distribution and safety.
How to Choose the Right Victron DC-DC Charger for Your Setup
Your setup might include a 12V leisure battery , a 50A charger , or a 60 Amp high-output system. Choosing the right DC-DC charger depends on the type of your battery, usage, and wiring distance. If you're ready to install a Victron charger, read on.
Determining the Correct Amp Rating: 30A vs 50A vs 60 Amp Options
- 30 Amp : Ideal for small vans or boats with AGM or lead acid
- 50A DC-DC charger : A popular balance of speed and safety
- 60 Amp : Great for large banks or heavy-duty battery charging needs
- Each DC-DC charger is matched to your amp load for safety and efficiency
When choosing the correct amp rating, consider both your battery capacity and how often you'll be driving. If you spend most of your time off-grid but drive regularly, a 50A DC-DC charger may offer the best combination of fast charging and reliability.
For larger battery banks , especially those used in extended travel or live-aboard scenarios, the 60 Amp option provides enough charge current to maintain performance without overloading the charger .
Matching Input Voltage and Output Voltage Requirements
Make sure the input and output voltages match. If your starter battery is 12V, match that with a 12V Orion DC charger . Mismatched input voltage leads to failure—or worse, fire. Use a converter if required. Proper voltage levels keep your DC charger stable.
It's crucial to ensure that your Victron DC to DC charger is compatible with your battery voltage and the output of your alternator . Most vehicles operate at 12V, so unless you're working with a 24V system (common in larger vehicles), a 12V Orion DC-Dc charger will be sufficient.
If you're unsure about the compatibility of your system components, always consult the Victron app or reach out to Victron Energy support before proceeding with installation.
Selecting the Appropriate Model for Lithium Batteries vs Lead Acid
Use smart DC-DC charger models like the Orion-Tr Smart or Victron Orion XS for lithium. They let you fine-tune charge current , prevent overcharging, and extend battery life. Always verify battery type compatibility before choosing your DC to DC charger . When in doubt, match with your new DC-DC charger specs.
Lithium batteries, especially LiFePO4 , have different charging requirements than traditional lead acid or AGM batteries. A smart Victron Orion model allows you to adjust the charging profile accordingly, ensuring optimal performance and longevity.
If you're upgrading from a lead-acid system to lithium, it's highly recommended to also upgrade your charger to one that supports lithium batteries .
Step-by-Step Victron Orion DC-DC Charger Installation Guide
Time to get hands-on. Whether you want to install a Victron in your van or boat, use proper safety practices. Use a DC charger that's fused properly and mounted close to the battery compartment . All wires and connectors must meet your amp load. This guide also applies to general DC-DC charger install needs. Always ensure your charger is connected to the battery using correct practices.
Required Tools, Cables, and AWG Wire Sizing for Your Installation
- 6 AWG or 4 AWG wire for short runs
- 10 AWG or smaller only for low amp models
- Heat-shrink connectors , crimp tools, multimeter
- Zip ties and wire loom for safety
- Appropriate converter or terminal blocks for distribution
- Good planning is essential for a clean DC-DC charger installation
Proper AWG wire selection is one of the most critical aspects of a successful Victron DC to DC charger installation. Using undersized wire can result in excessive voltage drop , overheating, and potential damage to your charger or battery bank .
You’ll also need a variety of tools such as crimping pliers, heat guns for heat shrink tubing, and a multimeter to check continuity and voltage levels during installation.
Proper Fuse and Circuit Breaker Selection for Safety
Use marine-rated breaker or fuse close to the battery side and chassis batteries . Don’t forget inline connectors for easy service. The fuse must be rated to protect the DC charger to charge efficiently and safely.
Fusing is not optional — it's a vital part of any DC-DC charger install . The fuse protects your wire , charger , and battery bank from catastrophic failures like short circuits or overloads.
In many cases, it’s also wise to install a breaker near the starter battery for added protection and ease of maintenance.

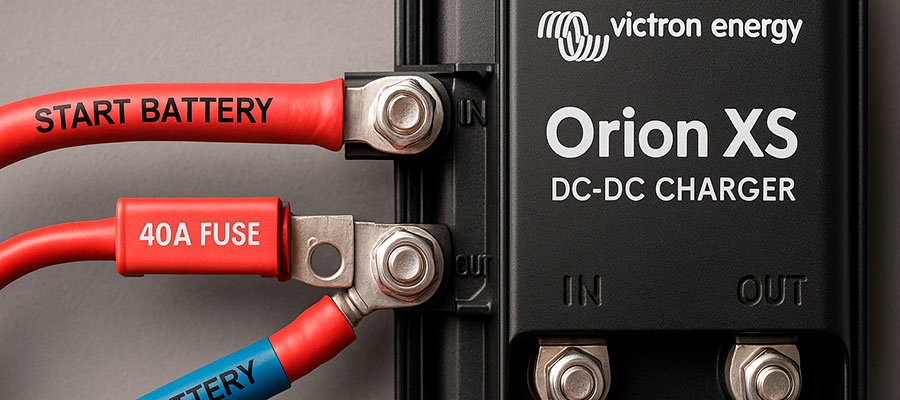

Connecting to Your Starter Battery and House Batteries
Run a fused cable from the starter battery to the charger. Then connect the output battery to the DC-DC charger input. Mount close to the battery bank , keep runs short, and ground securely. Always use appropriate AWG wire to prevent failure. Clean connections prevent shorts and voltage drop .
This step is particularly important when installing a Victron Orion DC-DC charger in a vehicle with a smart alternator . In these systems, the alternator output can vary significantly, so having a dedicated charger that regulates this power is essential.
Make sure your cable routing avoids sharp edges, hot surfaces, or areas prone to vibration. Secure everything with zip ties and loom to prevent chafing or abrasion.
Wiring Your Victron Orion DC-DC Charger Correctly
Clean wiring = clean power. Keep your wire short and thick to prevent voltage drop . Every connector and terminal must be crimped tight. A professional DC-DC charger install saves you time troubleshooting later. Safe routing also improves air circulation.
Understanding the Wiring Diagram for Victron Orion Models
Always follow the wiring diagram in the manual or Victron app . It will show how to connect the DC to DC charger , fuse placement, and ground paths. Victron Orion documentation also includes fuse specs and amp limits. Never guess — use a tested diagram.
The Victron Energy app and website provide detailed diagrams for each model, including the Orion-Tr Smart , Orion XS , and others. Make sure you understand the layout before beginning any charger installation .
If you're new to electrical installations, it's a good idea to print out the wiring diagram and mark each connection point as you go.
How to Minimize Voltage Drop with Proper Cable Selection
Use large AWG wire for longer runs. Every foot adds resistance. Undersized cable reduces battery voltage , increases heat, and limits charge current . Voltage drop becomes a serious issue in long installations — so plan cable paths carefully. Using a converter won't help if your cable is undersized.
To calculate the correct AWG wire size, you can use online voltage drop calculators or refer to the guidelines provided by Victron Energy . As a rule of thumb, shorter runs allow for smaller gauge wires, while longer runs require thicker cable .
Keep in mind that voltage drop doesn’t just affect charging efficiency — it can also trigger false error codes in your charger , leading to unnecessary troubleshooting.
Grounding and Chassis Connection Best Practices for DC Chargers
- Use star grounding
- Connect grounds back to chassis or frame
- Avoid using painted bolts
Mount the isolated charger away from heat and water. Keep it close to the battery for best results. Check every connector for security. Loose grounds = mysterious errors.
Grounding is often overlooked, but it plays a crucial role in both safety and performance. Improper grounding can cause erratic behavior in your charger , including intermittent shutdowns or incorrect fault readings.
Whenever possible, use bare metal surfaces for grounding points and apply anti-corrosion compound to prevent oxidation over time.
Configuring Your Victron Smart DC-DC Charger
Once wired, use Victron Connect to program it. This is where the smart charger shines. Victron Smart features let you adjust settings on the go. Make sure firmware is up to date before configuration.
Setting Up Charging Profiles for Different Battery Types
Choose lithium , AGM , or lead acid . Customize the bulk, absorption, and float stages. For lithium batteries , be sure to enable BMS protections. Adjust profiles to avoid overcharging. The right setup helps extend the life of your battery bank .
One of the key benefits of the Victron Orion-Tr Smart and Victron Orion XS models is their ability to adapt to various battery types . Whether you're using lead acid , AGM , or LiFePO4 , you can configure the charger to optimize charging cycles and protect your investment.
Be sure to double-check the specifications of your battery bank before making any changes to the charging profile.
Using the Victron Energy App for Smart Charger Configuration
Download the VictronConnect app. Connect via Bluetooth. From here, you can:
- Monitor live data
- Adjust charge current
- Update firmware
- Enable "engine is running " detection
- Create profiles for your starter battery or leisure battery
The Victron Energy app gives you complete control over your charger from your smartphone. It's especially useful for diagnosing issues or adjusting settings on the fly without needing to access the physical unit.
Make sure your charger is powered on and within range of your phone when connecting via Bluetooth.
Troubleshooting Common DC-DC Charger Installation Problems
Got issues? Here’s a cheat sheet. Good DC-DC charger install comes down to proper fusing, wiring, and connector use. Clean installs prevent 90% of common problems.
Resolving Connectivity Issues with the Alternator
- Check for blown fuse
- Test input voltage while engine runs
- Confirm wiring from alternator is secure
- Inspect connectors and cable crimps
- Ensure no voltage spikes are passing to your battery bank
Connectivity issues are often caused by poor wiring, loose terminals, or incorrect voltage levels. Use a multimeter to test the input voltage coming from your alternator while the engine is running .
Also, make sure the fuses on both the input and output sides are intact and appropriately rated.
Addressing Overheating and Performance Concerns
- Don't mount near engine
- Ensure airflow
- Use thick AWG wire to avoid resistance heat
- Upgrade connectors if hot to the touch
- Consider external cooling for high-amp DC chargers
Overheating is usually a sign of either poor ventilation or inadequate wire sizing. If your charger feels unusually hot to the touch, shut it down immediately and inspect your installation.
Ensure that the unit is mounted in a cool, dry area with adequate airflow. Avoid placing it near the engine or exhaust components.
Diagnosing LED Indicator Warnings and Error Codes
- Solid red: Overload
- Flashing yellow: Low input voltage
- No lights? Check battery positive and battery negative connections
- Use the Victron Connect app for specific fault codes
LED indicators are a quick way to identify common issues with your charger . However, for more detailed diagnostics, the Victron Connect app is invaluable.
If you're experiencing persistent warnings or error codes, refer to the user manual or contact Victron Energy support for assistance.
“If you're gonna wire it, wire it right.”
Ready to install a DC-DC charger ? With the right gear and a little patience, your new DC-DC charger will keep your battery bank safe and strong on every journey
