ID
1305719
$ 199.98
1-2 weeks delivery time
-
+
The Trem K1937167 dimmer interface enables precise brightness control for 12–24Vdc LED modules using multiple input signals, including DALI, 0–10V, 1–10V, and a 100KOhm potentiometer. It supports “LEVEL MEMORY” and “STATUS MEMORY” functions and has a SLAVE version for signal repetition. Housed in a plastic case with IP20 protection, it operates between -10°C and 50°C and connects via terminal blocks for both input and output.
- Description
- Ask a Question
-

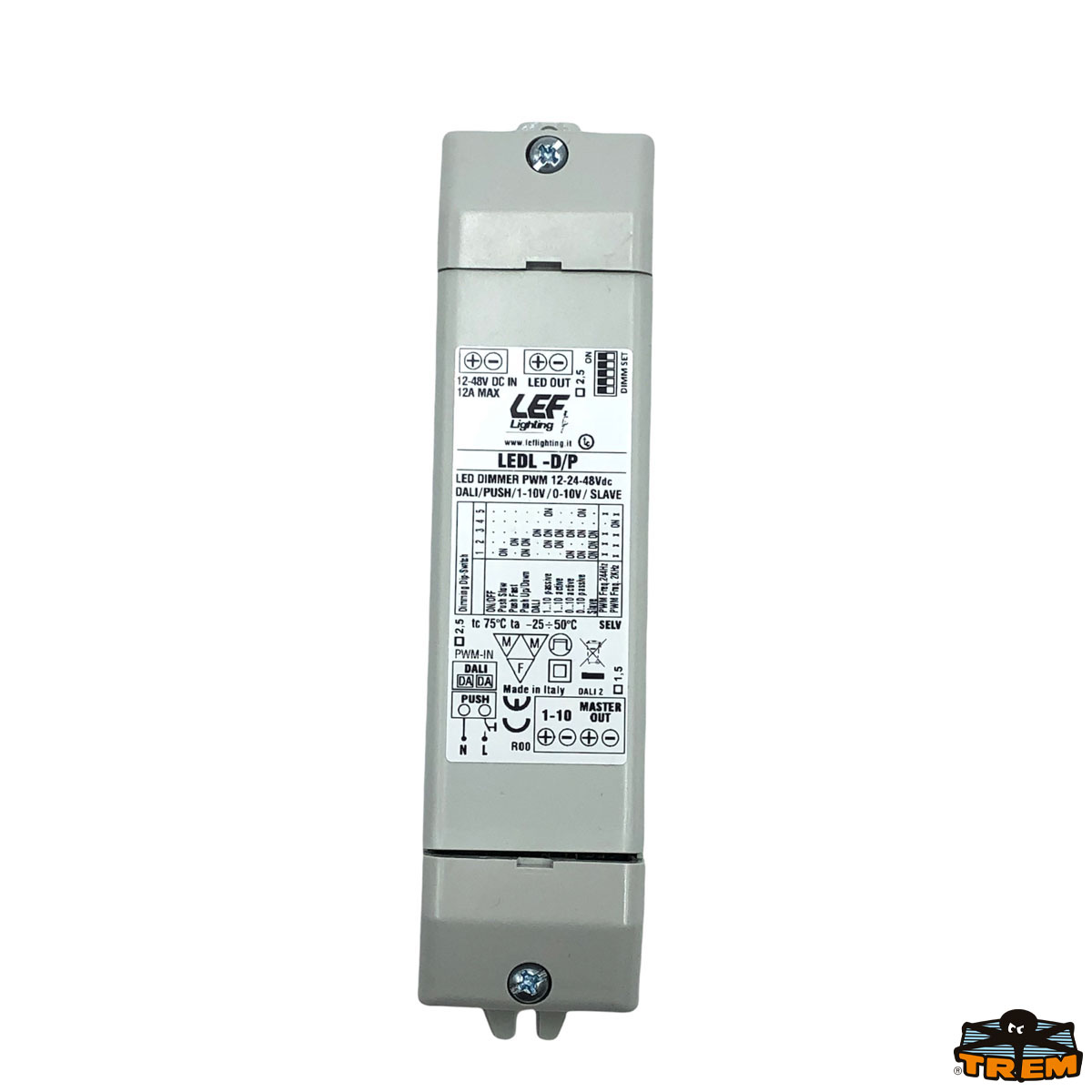

Trem K1937167 - Dimmer Interface For LED Modules
This dimmer interface allows precise brightness control for 12-24Vdc LED modules using multiple input signals.
- Brightness control via: DALI signal (PUSH) button, 1-10V signal (active/passive), 0-10V signal (active/passive), 100KOhm potentiometer (logarithmic), selected with micro-switches
- Functions include "LEVEL MEMORY" and "STATUS MEMORY"
- SLAVE version available for signal repetition (LEDL-S)
- Construction: Plastic case, independent device, electrical protection class II, IP20
- Input: 12-24Vdc, terminal block 1x2.5 sq mm, cable clamp for 4-6 mm diameter cables
- Output: 12-24Vdc, SELV insulation, terminal block 1x0.5–1.5 sq mm, cable clamp for 3-8 mm diameter cables
- Note: Output power must come from a single power supply
- Operating temperature: -10°C to 50°C, maximum point temperature Tc 75°C
- Dimensions: 150 x 36 x 25 mm
- EAN: 8024827774373
-
