Lumishore Eclipse Module Expansion adds one extra configurable lighting zone to the Eclipse Command Center, allowing greater flexibility in marine lighting systems. It supports Eclipse, SMX Supra, and 93 series lights, offers Wi-Fi and Ethernet connectivity, integrates with major MFD brands, and provides advanced functions such as dimming, color selection, strobe, and sound-to-light control in a durable IP67-rated housing.
- Description
- Ask a Question
-

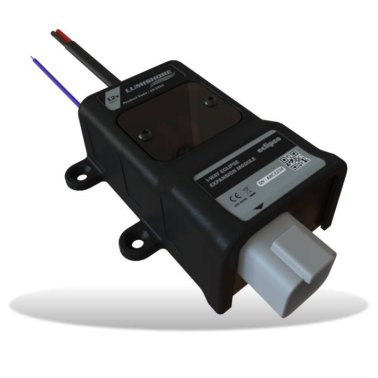

Lumishore 60-0496 - Eclipse Module Expansion 1 Additional Zone
The Lumishore Eclipse Module Expansion is designed to extend the capabilities of the Eclipse Command Center by adding one additional configurable lighting zone. This expansion solution allows precise and centralized control of onboard lighting systems, ensuring seamless integration with modern marine electronics.
The Eclipse Command Center is the world’s first ultra-compact lighting controller with built-in drivers and multiple lighting zones, compatible with Eclipse, SMX Supra, and 93 series lights. With this expansion module, the total system capacity can be increased up to six independent zones, offering greater flexibility for complex lighting installations.
Thanks to built-in Wi‑Fi and Ethernet connectivity, lighting zones can be controlled directly from compatible multifunction displays (MFDs), via a physical switch, or through Lumishore’s intuitive interface. The module is engineered for marine environments, featuring robust electrical protections and a waterproof IP67-rated housing.
Key Features
- Adds 1 additional configurable lighting zone
- Compatible with Eclipse, SMX Supra, and 93 series lights
- Integrated Wi‑Fi for direct connectivity
- Ethernet connection to compatible MFDs
- Simple control via switch or display interface
- Sound-to-light, dimming, strobe, and color selection functions
- Plug & Play installation
- Marine-grade protection with IP67 rating
Technical Specifications
Power Supply 12 V DC Maximum Current 30 A (3 zones of 10 A) + 3 additional zones with expansion modules Lighting Zones Added 1 Intensity Level 10 Protection Overvoltage, low voltage, reverse polarity Ingress Protection IP67 Functions Sound-to-light, dimmer, strobe, color selection
Compatible Multifunction Displays (MFDs)
- Garmin – OneHelm™
- Raymarine – Axiom, Axiom Pro
- Simrad – NSO EVO3/S, NSS EVO3/S, NSX, IDS, Go models (excluding Go5 and Go7 XSE)
- B&G – Zeus3/S Glass Helm, Zeus3/S, Vulcan (excluding Vulcan5 and Vulcan7FS)
- Furuno – NavNet TZtouch3 Series (TZT12F, TZT16F, TZT19F)
- Lowrance – HDS Live, HDS Carbon, Elite FS
- Humminbird – SOLIX G3 Series, APEX Series
Brand: Lumishore
Article Code / Barcode: 60-0496 / 0847772003446 -
