The Webasto WBCL1207002E C 40T-R reverse-cycle chiller unit is a marine air-conditioning system component specified for heating and cooling operation using R410a refrigerant on a 230 V power supply. The input describes it as a highly compact central chiller solution intended for climate control where three or more independent onboard spaces are served via a cooling-water circuit feeding multiple fan coil heat exchangers, with the water/glycol circuit maintained at approximately +4 °C and equipped with high-efficiency plate heat exchangers. Provided identifiers and logistics data include EAN 4054037305740, weight 84.9 kg, and former part number WBCL1207002D.
- Description
- Ask a Question
-
Webasto WBCL1207002E C 40T-R Reverse-Cycle Chiller Unit

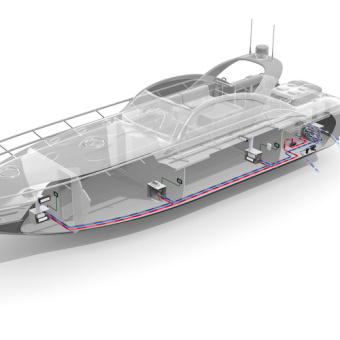

The Webasto WBCL1207002E is a marine air-conditioning chiller designed to provide reverse-cycle heating and cooling. It is described as a central chiller solution for yachts that need climate control across three or more independent spaces, distributing capacity to multiple fan coil heat exchangers via a cooling-water circuit.
Application
- Central chiller system for yachts requiring climate control for three or more independent spaces
- Cooling capacity distribution via a cooling-water circuit to multiple fan coil heat exchangers from a single chiller unit
- Water/glycol circuit temperature maintained at approximately +4 °C
Technical Specifications
Part Number WBCL1207002E Type / Designation C 40T-R-230V-REV-R410a Operating Voltage 230 V Function Reverse Cycle Heating and Cooling Refrigerant R410a EAN 4054037305740 Weight 84.9 kg Former Part Number WBCL1207002D
Product Details
- Series: Webasto BlueCool C Series
- Heat exchanger: All Webasto chiller units are stated to be equipped with high-efficiency plate heat exchangers
- Connections: Seawater and cooling-water connections are stated to be arranged on one side
- Installation and diagnostics: Optimized electronics for easier installation and diagnostics via USB cable
- System integration: Optional CAN bus for optimized adaptation to boat systems
Features
- More powerful and up to 15% more efficient
- Continuous cooling capacity even under tropical conditions
- More compact design
- Compressor noise reduced by up to 25%
- Robust stainless-steel tray and condensate drain
- Long-lasting epoxy paint finish
- Vibration dampers and silent blocks optionally available
- Soft-start option
-
