The Webasto 9027985B Air Top Evo 55 basic air-heater unit is a 12 V diesel-fired heater specified for HD (Heavy Duty) application and supplied as “Air Top Evo 55 Diesel 12V Basic,” with the control element not included. It is listed as the successor to part number 9027985A and is specified with a heating capacity of 1.5–5.0 kW, power consumption of 15–95 W, and fuel consumption of 0.18–0.61 l/h. Dimensional data is given as 423 × 148 × 162 mm, with automatic altitude compensation up to 2,200 m, and the listing notes that an installation kit and control element are required; EAN 4054037141959 is provided, and weight is stated as 8.05 kg in the listing and 5.9 kg in the specification table.
- Description
- Ask a Question
-

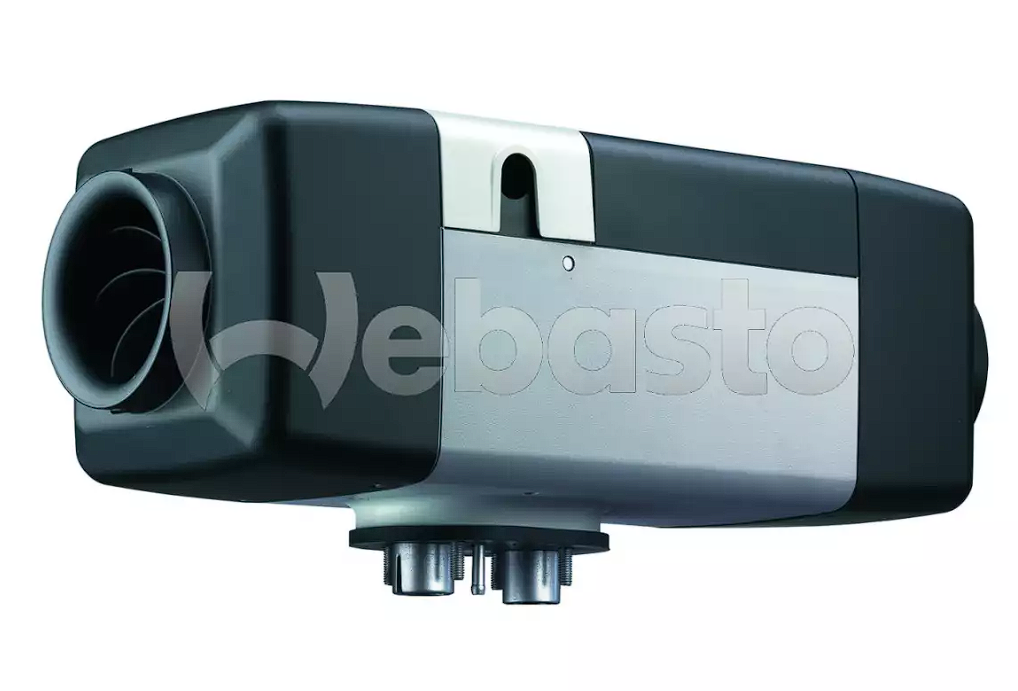

Webasto 9027985B Air Top Evo 55 Basic 12 V Diesel Air Heater
The Webasto 9027985B is an Air Top Evo 55 diesel air heater in 12 V “Basic” configuration. It is described as a compact heater for a range of uses and is also presented for marine comfort heating use cases, including rapid cabin warm-up and dehumidification via multiple warm-air outlets.
Application
- Type: Air heaters
- Category: Heaters
- Application (as specified): HD (Heavy Duty)
- Fuel: Diesel
- Basic configuration note: Basic variants do not correspond to the marine models
Compatibility
- Listed as succeeding former part number 9027985A
- Compatible with the new MultiControl control element (control element not included)
Technical Specifications
Part Number 9027985B Description Air Top Evo 55 Diesel 12 V Basic Model AT Evo 55 Product Heater Application HD (Heavy Duty) Fuel Diesel Control Element Not included Heating Capacity 1.5 0 0 a0 05.0 kW Power Consumption 15 0 0 a0 095 W Fuel Consumption 0.18 0 0 a0 00.61 l/h Voltage 12 V Measures 423 x 148 x 162 mm Weight 5.9 kg (specification table); 8.05 kg (listing) EAN 4054037141959 Comments Automatic altitude compensation up to 2,200 m. Installation kit and control element are required.
Product Details
- Former Part Number: 9027985A
- Control system note: Can be upgraded with the new Multi-Mode control element; additional operating modes are then available depending on heating demand
- System configuration note: Up to 2 Air Top heaters can be combined into one system (up to 11 kW), and the overall system can be operated via a central user interface
Features
- Very high-performance, compact, and low-noise heater description for demanding operating conditions
- Intelligent blower control based on monitoring multiple sensor signals, enabling reduced power consumption and reduced operating noise at the same heating output
- Flame detection via an exhaust gas temperature sensor
- Cold-start automatic function for rapid warm-up
- Improved muffler for the air intake
- Vibration damper for the fuel line
- Very quiet operation described due to lower blower speed and quiet metering pump (DP42)
-
