$ 1,275.55
1-2 weeks delivery time
-
+
The Webasto 62U003CF056EC integrated HVAC evaporator heater unit (model MILANO) is specified as a 24 V black evaporator-heater for climate control applications. It is listed with 5.4 kW cooling capacity and 7.4 kW heating capacity, with power consumption of 6.3 A at 24 V, a 16 mm external water connection, and 430 m3/h air flow. The unit includes a turbine with a 3-speed resistor and is prepared for connection to 57 mm diameter air ducts; controls are not included. EAN 4054037278532; former part number 62U003CF056EB; weight is stated as 7 kg and also listed as 8.5 kg.
- Description
- Ask a Question
-

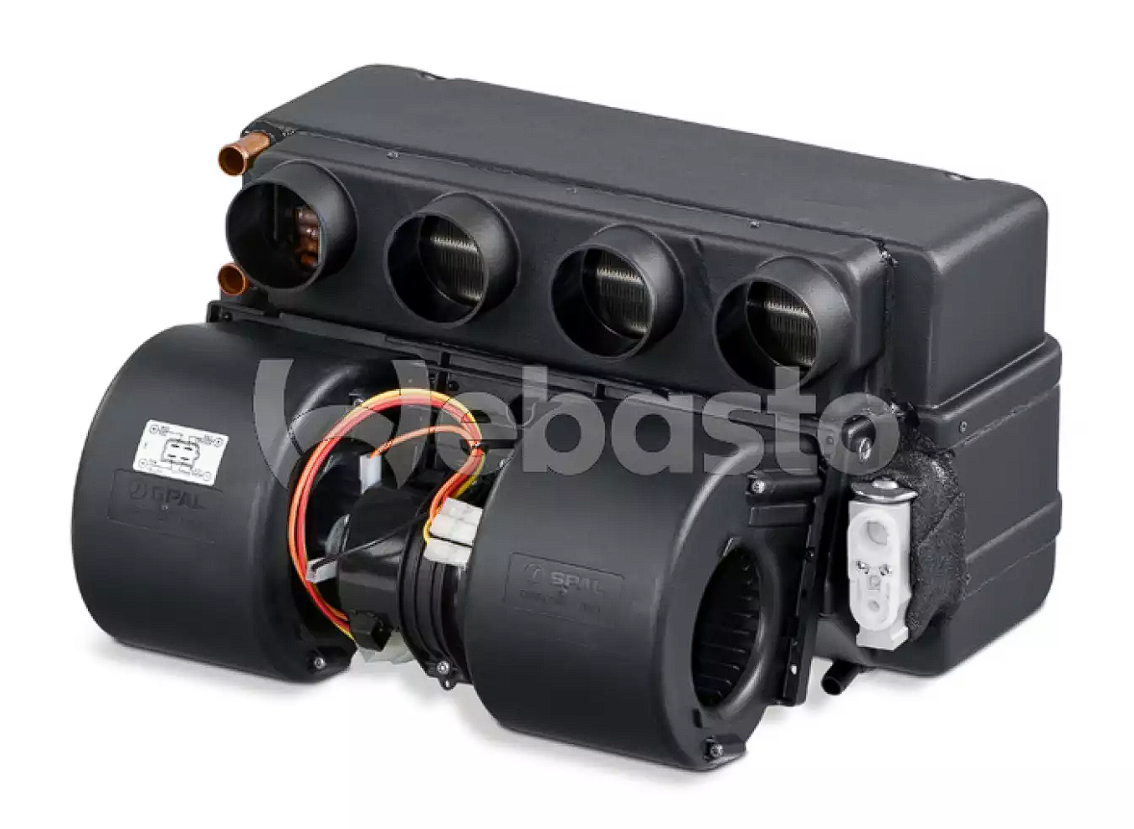

Webasto 62U003CF056EC MILANO Integrated HVAC Unit 24 V Black
The Webasto 62U003CF056EC is an integrated HVAC evaporator-heater unit identified under the MILANO model designation. It is intended to provide combined cooling and heating capability and is supplied without controls. The assembly is described as prepared for connection to air ducts and includes an integrated turbine with multi-speed resistor control.
Application
- Integrated HVAC evaporator-heater unit for climate control applications
- Prepared for connection to air ducts with 57 mm diameter
Technical Specifications
Part Number 62U003CF056EC Former Part Number 62U003CF056EB Model MILANO Description Evaporator heater Rated Voltage 24 V Cooling Capacity 5.4 kW Heating Capacity 7.4 kW Power Consumption 6.3 A at 24 V Water Connection 16 mm external Air Flow 430 m3/h Weight 7 kg (also listed as 8.5 kg) Color Black EAN 4054037278532
Product Details
- Type: Heater evaporator
- Category: Air conditioning
- Air duct interface: Prepared for 57 mm diameter ducting
- Blower: Turbine with 3-speed resistor
- Controls: Not included
Features
- Combined evaporator and heater configuration (MILANO)
- 24 V electrical system rating with stated 6.3 A consumption
- 16 mm external water connection
- Prepared for 57 mm air duct connections
-
