The Webasto 62U003CF055EB Diavia Milano under dash evaporator and heater unit is a 12 V internal HVAC assembly intended for vehicle cabin climate control, combining evaporator and water-heater functions in one module. The input data lists heating capacity values of 5.5 kW and 11 kW, and also provides a specification table with 5.4 kW cooling capacity and 7.4 kW heating capacity, plus 430 m3/h air flow and 7 kg weight. Additional listed technical details include 12.5 A power consumption at 12 V, a 16 mm external water connection, preparation for 57 mm air ducts, a turbine with a 3-speed resistor, and no controls included.
- Description
- Ask a Question
-

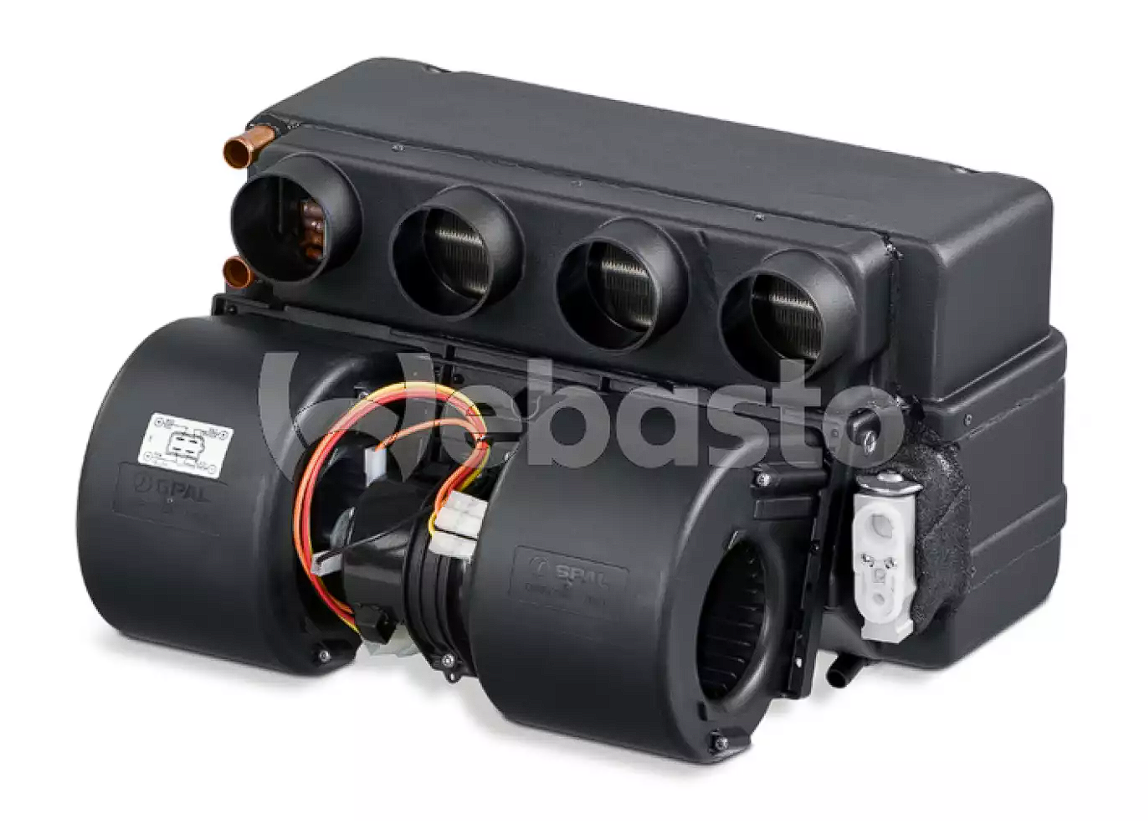

Diavia Milano Webasto 62U003CF055EB Under Dash Evaporator and Heater Assembly
The Webasto 62U003CF055EB is a Diavia Milano under dash internal evaporator and heater unit for vehicle HVAC integration. It is described as an internal climate-control module designed for under dash installation and intended to support heating and cooling functions, with the unit supplied without controls.
Application
- Under dash installation in vehicles
- Category: Air Conditioning
- Group: Heater evaporator
Technical Specifications
Product Code 62U003CF055EB Model MILANO Description Evaporator and heater Voltage 12 V Cooling Capacity 5.4 kW Heating Capacity 7.4 kW Heating Capacity (Also Listed) 5.5 kW / 11 kW Power Consumption 12.5 A at 12 V Water Connection 16 mm external Air Flow 430 m3/h Weight 7 kg
Product Details
- Unit type: Internal evaporator and heater (HVAC)
- Installation location: Under dash
- Manufacturer (as listed): MILANO 12V
- Controls: No controls included
Features
- Turbine with a 3-speed resistor
- Prepared for connection to air ducts with 57 mm diameter
- Evaporator and heater functions combined in one HVAC module
-
