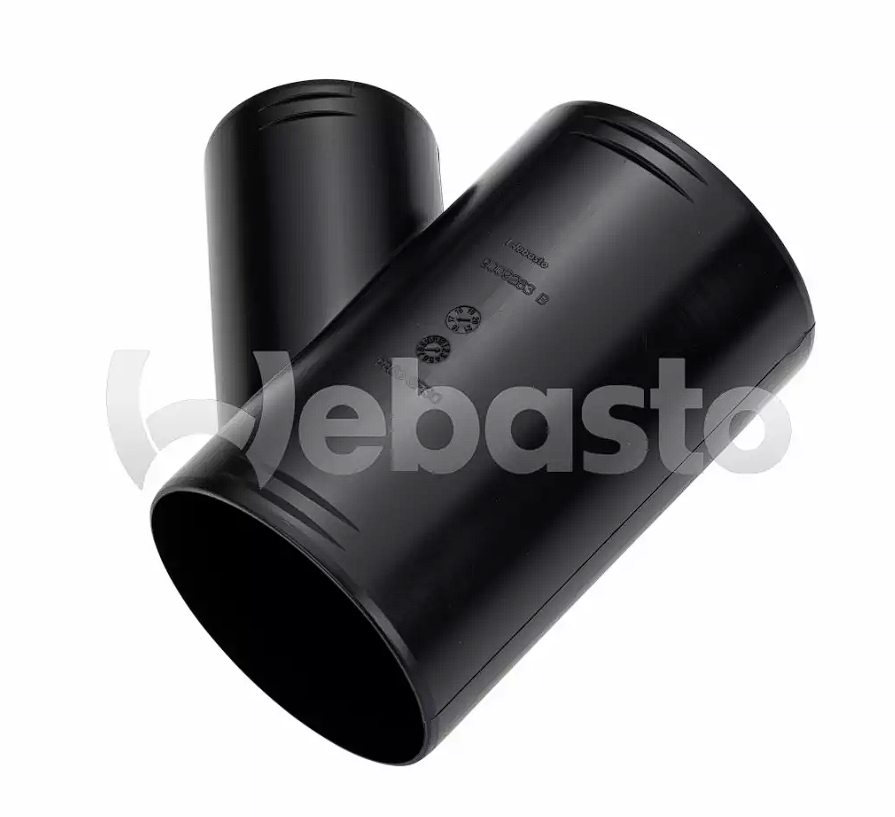

Webasto 1320707A - 45 Degree Branch Piece 90/60/90 for Air Distribution

ID 1263507

$ 15.33

1-2 weeks delivery time

- +

Add to cart

The Webasto 1320707A branching connector is a 45-degree plastic branch piece for heater air distribution, specified as a 90/60/90 connector with dimensions D1a = 90, D2a = 60, and length L = 145. It is supplied in black (sw) and is also described as a Y branch 90/90/60 and as a Y-piece with 60 / 90 mm (as listed), with an airflow bypass of 70–30% in the normal direction and 90–10% in the reverse direction. EAN 4054037049514 is provided, with weight 0.136 kg and former part number 9009263B.

Description
Ask a Question

Webasto 1320707A Angled Branch Connector for Heater Air Distribution

The Webasto 1320707A is a plastic branch piece used to create a 45-degree split in an air distribution layout for heating systems. It is listed as a 90/60/90 connector and is provided in black (sw) for integration into heater ducting accessories.

Compatibility

AT Evo 40
AT Evo 55

Technical Specifications

Part Number	1320707A
Former Part Number	9009263B
Type	Air distribution
Category	Heaters
Product	Y-piece
Connector Type	Branch Piece 90/60/90
Angle	45 Degrees
Dimensions	D1a = 90; D2a = 60; L = 145
Color	Black (sw)
Material	Plastic
EAN	4054037049514
Weight	0.136 kg

Product Details

Description (as listed): Y branch 90/90/60
Additional listing: Branch piece D90-60-90, 45 degrees
Size (as listed): 60 / 90 mm
Comments: Air flow bypass 70–30% in the normal direction, and 90–10% in the reverse direction

Features

45-degree branch configuration for air distribution routing
Plastic connector construction with black (sw) finish
Defined bypass behavior for normal and reverse airflow directions (as listed)
