The Webasto 9030910F MultiControl ATE control interface is a digital control panel kit for Webasto air heaters, specified for RV applications and supporting 12 V / 24 V systems. It is listed as compatible with Air Top 2000 STC, Air Top Evo 40, and Air Top Evo 55 heaters, and provides operating modes for heating and ventilation plus timer functionality. Physical installation data provided includes a 68 x 48 mm cover panel size and 15 mm installation depth; an adhesive pad is included, and bracket reference 9030077A is stated as required for installation.
- Description
- Ask a Question
-

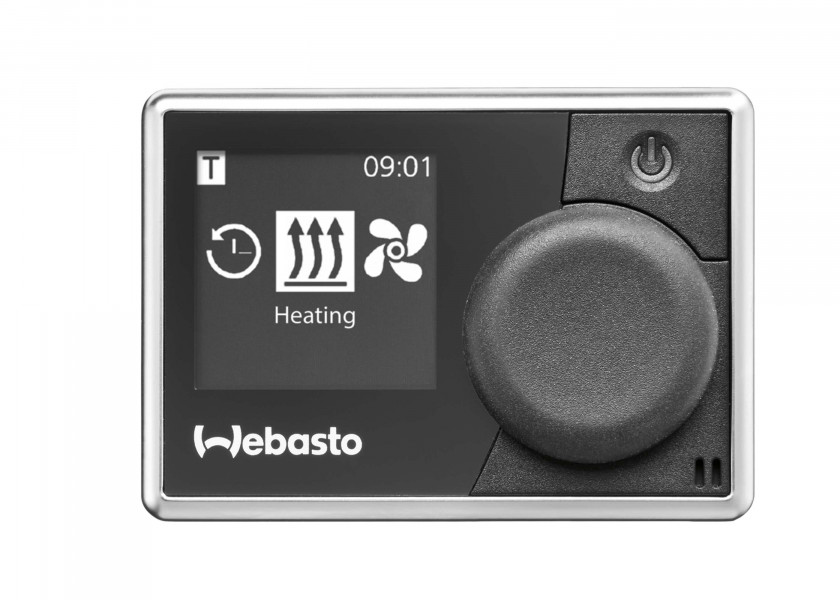

Webasto 9030910F MultiControl ATE Digital Control Interface
The Webasto 9030910F is a MultiControl Mar RV ATE control panel used to operate and manage compatible Webasto air heater systems. It is a digital control element intended for RV applications and provides access to key air-heater functions.
Compatibility
- Air Top 2000 STC
- Air Top Evo 40
- Air Top Evo 55
Technical Specifications
Description MultiControl Mar RV ATE Type Air Application RV (Recreational Vehicle) Control Element Digital Voltage 12 V / 24 V Cover Panel Dimensions (L x W) 68 x 48 mm Installation Depth 15 mm
Product Details
- Category: Heaters
- Type: Control elements
- Installation note: Bracket reference 9030077A required for installation
- Included: Adhesive pad
- Preset: Pre-set to Air Top 2000 STC; other air heaters can be selected
Features
- Available control functions: heating and ventilation
- 21 activatable timers (3 preselectable on-times per day, programmable for 7 days in advance)
- Quick start button
- Selectable operating time between 10–120 minutes and continuous heating
- Large TFT display and multifunction button for operation
-
