The Vetus YV5/4X1 Y-ball valve assembly is a corrosion-resistant marine valve with 1 1/4" x 1" x 1" female threaded ports for controlling water and other non-corrosive fluids in onboard systems. It uses a compact Y-ball configuration for installation in confined spaces and is specified for up to 10 bar (145 psi) operating pressure, with flow performance up to 100 liters per minute at 3 bar, across an operating temperature range of -20°C to 90°C; the valve includes O-ring seals for leak-proof operation and supports horizontal or vertical mounting.
- Description
- Ask a Question
-

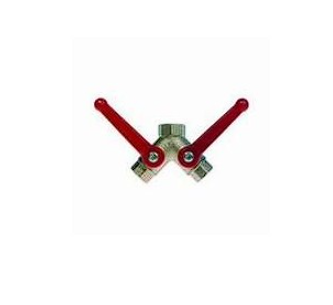

Vetus YV5/4X1 Compact Y-Ball Valve With Female Thread Ports
The Vetus YV5/4X1 is a Y-ball valve intended for marine installations where a compact valve body is required to control fluid flow. It is described as suitable for water and other non-corrosive fluids, with corrosion-resistant construction for use in both freshwater and saltwater environments.
Application
- Bilge systems
- Cooling systems
- Water distribution on boats and yachts
- Bilge pumps
- Water systems
- Drainage
- Fuel systems
Technical Specifications
Model YV5/4X1 Type Y-Ball Valve Ports 1 1/4" x 1" x 1" Female Maximum Operating Pressure 10 bar (145 psi) Flow Rate Up to 100 liters per minute at 3 bar Operating Temperature Range -20°C to 90°C Dimensions (H x W x D) 90 x 122 x 190 mm Net Weight 0.80 kg Material Corrosion-resistant marine-grade plastic (or equivalent material) Seal Type O-ring seals Installation Type Horizontal or vertical mounting compatible Mounting Method Easy bolt-on or threaded installation Corrosion Protection UV-resistant finish
Product Details
- Female threaded ports specified as 1 1/4" x 1" x 1"
- Compact Y-ball body design for tighter installation spaces
- Designed for marine environments including freshwater and saltwater service
- Listed under: Spare Parts for Vetus V-Quipment Parts
Features
- Corrosion-resistant construction
- Smooth operation for flow control
- Leak-proof operation via O-ring seals
- Low maintenance with simple inspection and cleaning
- UV-resistant finish to help prevent degradation from sun exposure
-
