The Vetus SENSORK10 sensor-extension cable set is a 10 m connection cable assembly for extending marine sensor and electronic device wiring on vessels. It is specified with IP67 water resistance, saltwater and UV resistance, and an operating temperature range of -20°C to 60°C. Construction details include tinned copper conductors with flexible PVC insulation and a UV-resistant outer sheath; listed ratings include suitability for standard marine sensor systems (12 V, 24 V), nominal voltage 24 V DC, and 5 A maximum current, with compact pack dimensions of 175 mm x 175 mm x 30 mm and a net weight of 0.30 kg.
- Description
- Ask a Question
-

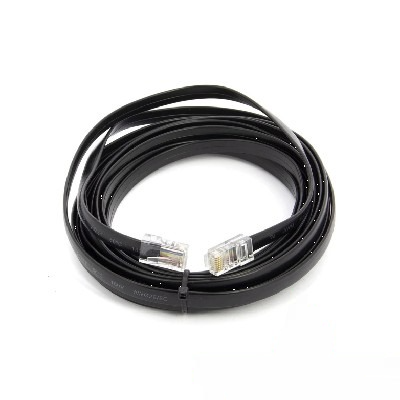

Vetus SENSORK10 10 m Sensor Extension Cable Assembly
The Vetus SENSORK10 is a 10-meter extension cable set intended to extend the reach of sensor connections and other marine electronic equipment wiring on boats, yachts, and similar marine vessels. It is specified for operation in harsh marine environments with water-ingress protection and corrosion-resistant conductor material.
Compatibility
- Marine sensors (wide range)
- Marine electronic devices (wide range)
- Navigation systems
- Radar systems
- Environmental sensors
- Boats
- Yachts
- Other marine vessels
Technical Specifications
Part Number SENSORK10 Length 10 meters Ingress Protection IP67 Operating Temperature Range -20°C to 60°C Storage Temperature -40°C to 80°C Installation Temperature -20°C to 60°C Net Weight 0.30 kg Dimensions (H x W x D) 175 mm x 175 mm x 30 mm Conductor Material Tinned copper Conductor Diameter 0.5 mm Max Conductor Resistance 15 Ohms/km Insulation Durable PVC insulation Insulation Thickness 1.5 mm Sheath Flexible, UV-resistant outer sheath Sheath Thickness 1.0 mm Minimum Bend Radius 45 mm Flexibility Rating 500,000 flex cycles minimum Connector Type Standard marine sensor connectors Voltage Rating Suitable for use with standard marine sensor systems (12 V, 24 V) Nominal Voltage 24 V DC Current Rating 5 A maximum Max Operating Pressure (As Stated) 300 V Water Resistance Detail Protection against dust and water immersion up to 1 meter depth Certifications RoHS compliant, CE marked Packaging Roll with protective coating to prevent damage during shipping
Product Details
- Purpose: Extends connections to remote sensors or electronic systems on marine vessels
- Environmental resistance: Saltwater resistant and UV resistant
- Conductor design: Tinned copper conductors specified for conductivity and corrosion resistance
- Insulation system: Flexible PVC insulation with an additional protective outer sheath
Features
- 10-meter extension cable for marine sensors and electronic equipment
- IP67-rated water resistance
- Specified resistance to saltwater, UV exposure, and extreme weather conditions
- Operating temperature range of -20°C to 60°C
- Compact pack size (175 mm x 175 mm x 30 mm) and 0.30 kg net weight for handling and installation
-
