ID
1300777
$ 85.54
1-2 weeks delivery time
-
+
The Maxwell Heavy-Duty Foot Switch with Black Cover Ø104 mm 12V/24V (Vetus P19006) is a robust, deck-mounted foot-operated control switch designed for reliable operation of marine windlasses and winches. Rated at 150 A and suitable for both 12 V and 24 V DC systems, it features a UV-stabilised waterproof diaphragm and a hinged black safety cover to prevent accidental activation, ensuring dependable performance in harsh marine environments.
- Description
- Ask a Question
-

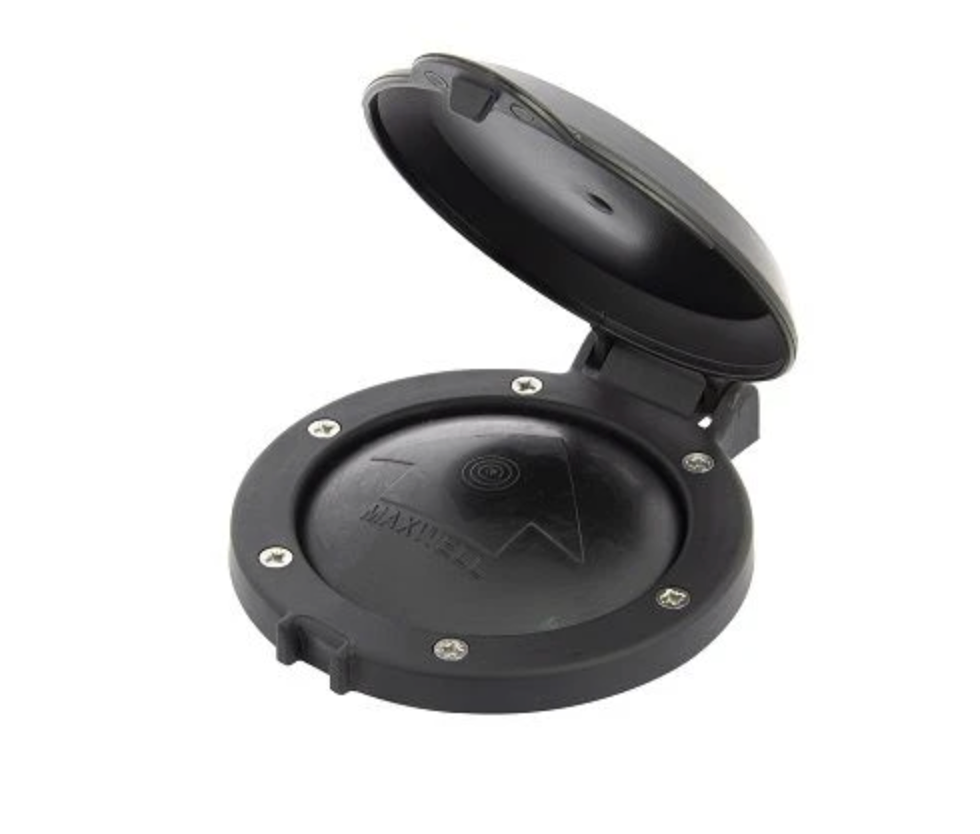

Maxwell Heavy-Duty Foot Switch with Black Cover Ø104 mm 12V/24V (Vetus P19006)
Specification Details Article Number Vetus P19006 Control Type Foot-operated switch Maximum Current 150 A Operating Voltage Suitable for 12 V and 24 V DC systems Material Polyethylene Colour Black Contact Material Nickel-plated copper contacts Environmental Protection UV-stabilised waterproof diaphragm Watertight Yes External Diameter Ø 104 mm Height Above Deck 21 mm Installation Depth 47 mm Required Cut-out Diameter Ø 63.5 mm Safety Cover Hinged black protective cover
Technical Features
- Heavy-duty foot switch designed for windlass and winch control
- Rated at 150 A for high-current anchoring applications
- Compatible with both 12 V and 24 V DC electrical systems
- Nickel-plated copper contacts for reliable, corrosion-resistant operation
- UV-stabilised waterproof diaphragm for dependable use in wet conditions
- Hinged safety cover to prevent accidental activation
- Compact, low-profile deck-mounted design
Installation and Supply
- Requires a Ø 63.5 mm cut-out for installation
- Supplied complete with mounting instructions and fixing screws
- Designed for straightforward installation on deck surfaces
Applications
- Foot-operated control of marine anchor windlasses
- Winch control on leisure and commercial vessels
- Deck-mounted control points requiring reliable, weather-resistant switching
-
