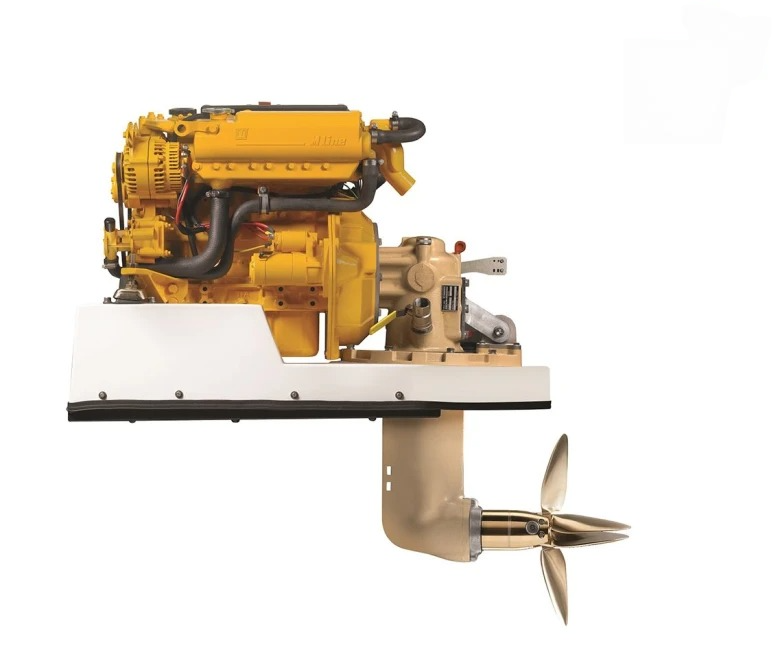

Vetus M445S---A/STM6000 - Mitsubishi M4.45 with SP60 Saildrive i=2.15

Vetus M445S---A - Mitsubishi 42 HP M4.45 Marine Diesel Engine Saildrive Compatible with STM6000

The 42 HP M4.45 Marine Diesel Engine Saildrive Compatible is a quiet and highly fuel-efficient boat engine. This reliable and rugged 4-cylinder engine offers a high power and torque ratio. With new features, modern appearance, and added benefits, this engine is designed to meet future market demand. All M-Line Diesel Engines are HVO approved and can be operated using more sustainable fuels.

Crafted for elegance and designed for performance, the 42 HP M4.45 Marine Diesel Engine is developed entirely in-house. It is compact, fuel-efficient, and powerful, rivaling the best engines on the market. Innovations over the years have led to major improvements. A key feature is the water-cooled top cover, which absorbs a lot of radiant heat from the engine and dispels it without affecting the engine room. As a result, room temperature stays 15-20°C lower (a 20% reduction) compared to other engines of similar size.

Additionally, to reduce engine noise, a casted aluminum top cover is directly mounted onto the engine body, along with a state-of-the-art air filter that reduces noise by 5 dB(A). When operating at speeds around 2200 RPM, the engine runs nearly silent, ensuring a more pleasant boating experience for you and your crew. The cover is also designed as a step for easier movement around the engine.

Equipped with a high-output marine alternator as standard, the 42 HP M4.45 Marine Diesel Engine ensures that the batteries recharge quickly. It also meets all SOLAS requirements.

The M-Line engines are approved for use with Hydrotreated Vegetable Oil (HVO), a lower-carbon fuel that is a more sustainable alternative to diesel. HVO contains low sulfur and aromatics, and its use reduces exhaust emissions by up to 90% in CO2, CO, HC, NOx, and PM.

Key Features:

• Quiet and highly fuel-efficient marine diesel engine
• 4-cylinder engine with a high power and torque ratio
• Water-cooled top cover absorbs radiant heat and keeps room temperature lower by 15-20°C
• Cast aluminum top cover and state-of-the-art air filter reduce noise by 5 dB(A)
• Runs nearly silent at 2200 RPM for a more pleasant boating experience
• Compact, fuel-efficient, and powerful design
• Meets all SOLAS requirements
• Approved for use with Hydrotreated Vegetable Oil (HVO) for a more sustainable operation
• Ideal for various marine applications and recreational boating

Specifications:

• Max. speed (RPM): 3000
• Number of cylinders: 4
• Max. torque (Nm): 106.4 Nm @ 1750 RPM
• Power (kW): 30.9 kW
• Max. Engine power (hp): 42 HP
• Saildrive Compatibility: STM6000 Seaprop 60-1: 2.15R
• Displacement: 4.45 liters
• Compression ratio: 19:1
• Fuel type: Diesel, compatible with HVO
• Cooling system: Freshwater-cooled
• Alternator: 12V, 55A (standard)
• Weight: 350 kg (approx.)
• Dimensions (L x W x H): 965 mm x 690 mm x 720 mm
• Exhaust: Water-cooled
• Fuel consumption: Approx. 4.5 L/h at 2000 RPM
• Idle speed: 600-800 RPM
• Noise level: 75 dB(A) at 2200 RPM
• Oil filter: Replaceable spin-on type
• Starting system: Electric start

Compatibility and Application:

The 42 HP M4.45 Marine Diesel Engine is designed for marine applications and is compatible with the STM6000 Saildrive. It is perfect for use in yachts, boats, and other watercraft, providing excellent fuel efficiency and performance. Its quiet operation and reduced engine room temperatures make it ideal for long trips and extended use on the water.

Benefits:

• Highly fuel-efficient and quiet engine for a smooth boating experience
• Compact and powerful design with reduced noise levels
• Engine room temperature remains lower by 15-20°C compared to other similar engines
• Noise reduction of up to 5 dB(A) for nearly silent operation at cruising speed
• Ideal for long-distance and continuous boating operations
• Meets environmental regulations with the use of Hydrotreated Vegetable Oil (HVO)
• High-output marine alternator ensures fast battery recharge
• Designed for performance and durability in demanding marine environments
