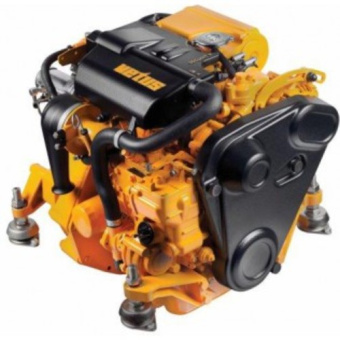

Vetus M218A612A - Mitsubishi M2.18 with TMC60A i=2.0

Vetus M218A612A - Mitsubishi M2.18 with TMC60A i=2.0

Technical data:

• 16PS / 11.8KW at 3600 rpm
• 2-cylinder, 635cm³
• 2-circuit cooling, 12V electric system, MP10B12 panel
• Gearbox: TMC60A, 7° angled outlet
• Reduction: 2.00

Supplied as standard with:

• Standard instrument panel MP10B12
• Four flexible engine mounts type KSTEUN35V
• Pre-installed oil suction pump

Vetus M-LINE ENGINES

The M-Line engines impress with their smooth running, low fuel consumption, and reliability. In addition, they are self-priming, which is a great advantage and saves time after a fuel filter change, for example. All engines are equipped with a powerful alternator to quickly recharge the batteries. A second alternator can be installed as an option on all M4 models, and much more...!

INNOVATION

• Low engine compartment temperature
• Reduction of Engine Noise

Features:

• High maintenance parts and areas such as fuses and relays (A), fuel filter and connectors (B), impeller (C), oil dipstick (D), and oil filter (E) are easily accessible. All M4 engines have the impeller on the front
• Wiring and connections are routed for easy access
• All M-Line engines are equipped with an electric fuel pump (F) that is linked to the operation of the starting key
• A new air filter housing dampens the air flow and lowers the intake noise level (G)
• The heat exchanger has no less than 26 improvements over previous versions, including better materials used and optimized surface treatment
• The plastic front cover improves security and appearance. All rollers and belts are covered, according to the EU Machinery Directive
• Front mounted oil and fuel filters and an additional bracket are optionally available to make maintenance work even easier (H)
• When higher loading capacity is required, all M4 engines can be equipped with a second alternator on request (when using a second alternator, the front cover is omitted)
• All M4 engines are available with the Vetus Power Pack as well as with hydraulic application
• Vetus also offers for all M-Line engines have an adapter for Volvo Penta Saildrives (110S/120S and 120SB)
• An oil scavenge pump is already installed on all M-Line engines, thus ensuring easy maintenance
• The Aluminum engine cover also makes an excellent step, allowing better access to the engine room

All these benefits are achieved without sacrificing other features. With a power output of 12 hp – 52 hp, the Vetus M line is the preferred choice of many boat builders. When choosing a Vetus engine, customers can expect not only the best possible service, but also high quality and professional advice. All M-Line engines meet the exhaust gas standards according to RCD2 and some also the BSOII specifications.
