The Vetus GLX14SIC generator set in a soundproof housing is rated at 14kVA with single-phase 230V, 50 Hz output and a stated operating speed of 1500 rpm. It is specified with IP55 protection, maximum voltage variance of ±2%, and installation limits of 15° fore and aft and 25° athwartships; dimensions are 1012 x 587 x 641 mm including the sound hood, with stated maximum ambient temperature of 40°C and maximum raw water temperature of 30°C, and a GLX noise level of 57 dB(A) when installed with the soundproof box.
- Description
- Ask a Question
-

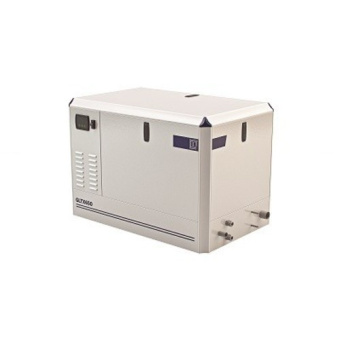

Vetus GLX14SIC Soundproofed 14kVA Generator Set (1x230V, 50 Hz)
The Vetus GLX14SIC is a generator set intended to provide a 14kVA single-phase supply at 230V and 50 Hz. It is supplied in a soundproof housing to reduce operating noise and is presented as a compact package for installations where space and noise control are key considerations.
Application
- Single-phase 230V power supply requirements
- 50 Hz electrical systems
- Installations requiring a soundproof enclosure
Technical Specifications
Rated Capacity 14kVA Output Phase / Voltage 1x230V Frequency 50 Hz Operating Speed 1500 rpm Enclosure Soundproof housing (sound hood included) Dimensions (Including Sound Hood) 1012 x 587 x 641 mm Protection Rating IP55 Maximum Voltage Variance ±2% Max. Ambient Temperature 40°C Max. Raw Water Temperature 30°C Noise Level (GLX) With Soundproof Box 57 dB(A) Noise Level (GHX) With Soundproof Box 65 dB(A) / 68 dB(A) Max. Continuous Angle of Inclination Fore and Aft: 15°, Athwartships: 25°
Product Details
- Generator series referenced in input: Vetus GX generators
- Configuration: generator set supplied with a soundproof box
Features
- Soundproof housing for reduced noise during operation
- IP55 protection rating
- Specified maximum voltage variance of ±2%
- Stated dimensional envelope including sound hood: 1012 x 587 x 641 mm
-
