ID
1396958
$ 55,767.70
1-2 weeks delivery time
-
+
The Parker 90-8208 is an IMF-7000 media filtration system designed for use ahead of the micron filtration stage in Village Marine Pure Water (PW) Series watermakers. The supplied data identifies particulate reduction, a maximum flow range of 20–40 GPM / 76–151 LPH, a composite pressure vessel rated to 150 PSI, and an optional boost pump and control box.
- Description
- Ask a Question
-

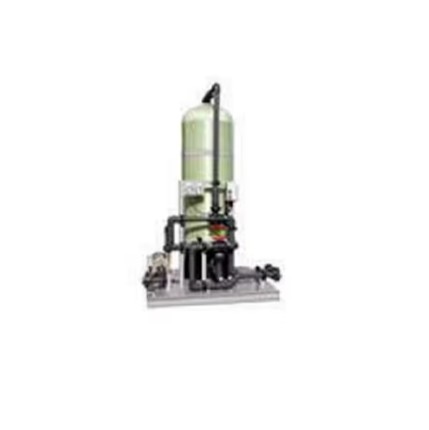

Parker 90-8208 IMF-7000 Media Filtration System with Boost
The Parker 90-8208 is an IMF-7000 media filtration system engineered for Village Marine Pure Water (PW) Series watermakers. It is designed to treat the feed stream before the micron filtration stage of the reverse osmosis system.
The system uses multi-media filtration to reduce particulate matter including turbidity and suspended solids. The supplied technical information also identifies reduction of iron, manganese, and organics in the feed stream.
The IMF-7000 is equipped with glycerine-filled pressure gauges, an orifice plate, a backflush sight glass, three-way control valves, a sea strainer, and 1.5" ANSI flange connections for inlet, outlet, and backwash drain. A boost pump and control box are identified as an optional configuration.
Technical Specifications
Specification Details Part Number 90-8208 Product Type Media Filtration System Model IMF-7000 Compatibility Village Marine Pure Water (PW) Series Watermakers Application Feed-stream filtration prior to the micron filtration stage Maximum Flow 20–40 GPM / 76–151 LPH Pressure Vessel Rating 150 PSI Pressure Vessel Type Composite, non-corrosive Standard Materials Schedule 80 PVC, FRP, 316 Stainless Steel Connections 1.5" ANSI Flange — Inlet, Outlet, Backwash Drain Width 40" / 101 cm Depth 48" / 122 cm Height 89–95" / 221–241 cm Dry Weight 2,000–2,300 lb / 909–1,045 kg Electrical Requirements Contingent on pump model
Standard Features
Feature Details Pressure Gauges Glycerine-filled Backwash Flow Control Orifice plate Backflush Monitoring Sight glass Control Valves Three-way valves for backwash and rinse operations Sea Strainer Included Base Powder-coated skid base Regeneration Not required
Media Treatment
Feed Stream Constituents Particulate Matter Turbidity Suspended Solids Iron Manganese Organics
Optional Equipment
Option Details Boost Pump and Control Box Provides additional feed pressure to the unit Available Electrical Configurations 110 / 220 / 440 V, 50 / 60 Hz Piping Upgrade FRP in place of Schedule 80 PVC -
