ID
1396727
$ 17.79
1-2 weeks delivery time
-
+
The Parker 2614050133 is a brine seal for 2-1/2" reverse osmosis membrane elements. It is installed at one end of the membrane element to help direct feed water through the membrane rather than around the outside.
- Description
- Ask a Question
-

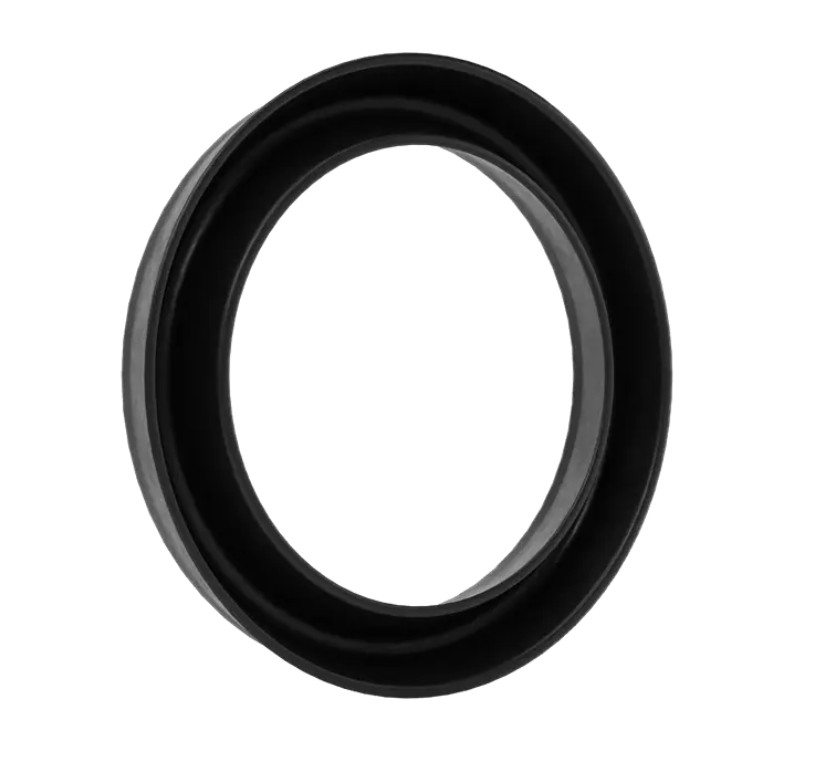

Parker 2614050133 2-1/2" Membrane Brine Seal
The Parker 2614050133 is a membrane brine seal designed for 2-1/2" reverse osmosis membrane elements.
The seal is installed at one end of the membrane element and acts as a barrier that directs feed water through the membrane instead of allowing it to bypass around the outside. The open side of the U-cup must face upstream, toward the high-pressure pump.
Only one brine seal should be installed per membrane element.
Technical Specifications
Specification Details Part Number 2614050133 Component Type Membrane Brine Seal Membrane Size 2-1/2" Compatibility 2-1/2" Reverse Osmosis Membranes Installation Position One seal per membrane element Installation Orientation Open side of U-cup faces upstream toward the high-pressure pump Function Directs feed water through the membrane and limits bypass around the membrane element -
