$ 15.58
1-2 weeks delivery time
-
+
The Nanni Diesel 970302149 cylindrical locating pin D10x20 is a precision alignment element used in the gearbox flange and flywheel housing assemblies to keep mating components correctly positioned during installation and operation. By maintaining accurate location between housings and flanges, it helps support proper drivetrain alignment on Nanni 4.190HE, 4.195HE, 4.200HE, 4.200TD, 4.220HE, 5.250TDI, 5.280HE, N4.40, N4.50, N4.60, and N4.65 engines.
- Description
- Ask a Question
-
Nanni Diesel Cylindrical Locating Pin D10x20 for Drivetrain Alignment

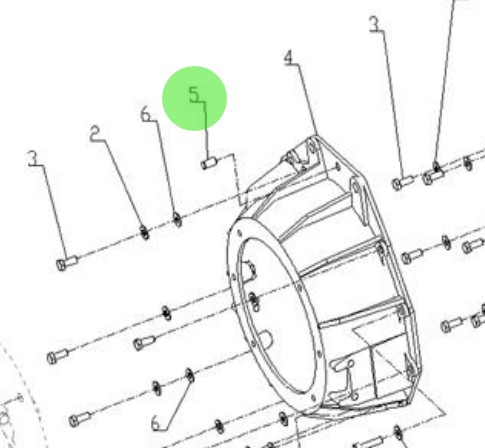

The Nanni Diesel 970302149 is a cylindrical dowel pin (D10x20) used as a locating element in the gearbox flange and flywheel housing assemblies. Its role is to position and align mating components accurately, supporting correct coupling geometry and stable drivetrain operation in marine propulsion installations.
Compatibility
- 4.190HE engines
- 4.195HE engines
- 4.200HE engines
- 4.200TD engines
- 4.220HE engines
- 5.250TDI engines
- 5.280HE engines
- N4.40 engines
- N4.50 engines
- N4.60 engines
- N4.65 engines
Technical Specifications
Part Number 970302149 Pin Type Cylindrical dowel pin Size D10x20
Product Details
- Brand: Nanni Diesel
- Component Type: Cylindrical locating pin
- Assembly Location: Gearbox flange
- Assembly Location: Flywheel housing
- Typical Function: Locates and aligns mating drivetrain components to help maintain correct fit and positioning
Features
- Helps ensure accurate gearbox flange alignment during assembly
- Supports consistent positioning at the flywheel housing interface
- Promotes correct mating geometry for stable drivetrain operation
- OEM replacement part for Nanni Diesel engine assemblies listed in compatibility
-
