ID
1369208
$ 1,019.97
1-2 weeks delivery time
-
+
The Nanni 810000114 half coupling is designed for marine propulsion shaft connections, providing secure clamped attachment between the propeller shaft and gearbox flange. Engineered for Ø35 mm propeller shafts, the coupling features a Ø127 mm flange compatible with many standard marine gearbox configurations. The clamped design simplifies installation and maintenance while ensuring reliable torque transmission in marine propulsion systems.
- Description
- Ask a Question
-

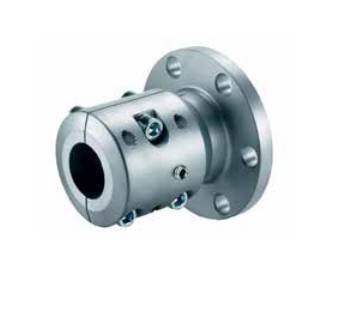

Nanni 810000114 – Half Coupling for Propeller Shaft Ø35 mm, Flange Ø127 mm
The Nanni 810000114 is a marine half coupling designed for secure connection between the propeller shaft and gearbox output flange in inboard propulsion systems. The clamped coupling construction allows straightforward installation and removal while maintaining reliable torque transfer and shaft alignment.
Designed for Ø35 mm propeller shafts, the coupling incorporates a Ø127 mm flange compatible with many standard marine gearbox mounting dimensions. Its robust marine-grade construction supports dependable operation in demanding marine environments.
Key Features
- Marine propeller shaft half coupling
- Designed for Ø35 mm shafts
- Ø127 mm gearbox flange compatibility
- Clamped shaft installation design
- Supports reliable torque transmission
- Facilitates shaft alignment and servicing
- Suitable for marine propulsion systems
- Heavy-duty marine drivetrain component
Technical Specifications
Brand Nanni Reference 810000114 Product Type Half Coupling Propeller Shaft Diameter 35 mm Flange Diameter 127 mm Dimension A 93 mm Dimension B 90 mm Dimension C 3 mm Dimension D 35 mm Dimension E 11.5 mm Dimension F 63.5 mm Dimension G 127 mm Dimension H 11.5 mm Dimension K 108 mm
Applications
- Marine inboard propulsion systems
- Propeller shaft to gearbox connections
- Motorboats and sailing yachts
- Marine drivetrain installations
- Replacement and maintenance applications
-
