ID
1331537
$ 71.32
1-2 weeks delivery time
-
+
The Jabsco 920-0003-P impeller service kit delivers a complete nitrile, 8-blade replacement impeller with essential maintenance items to support reliable marine flow and circulation. Built around a spline-drive, drive type 7 configuration with a 16 mm shaft specification and brass insert, it includes gasket 890-0000, Spline Seal 4345, and impeller lubricant, and replaces Jabsco 920-0003B and 920-0003.
- Description
- Ask a Question
-

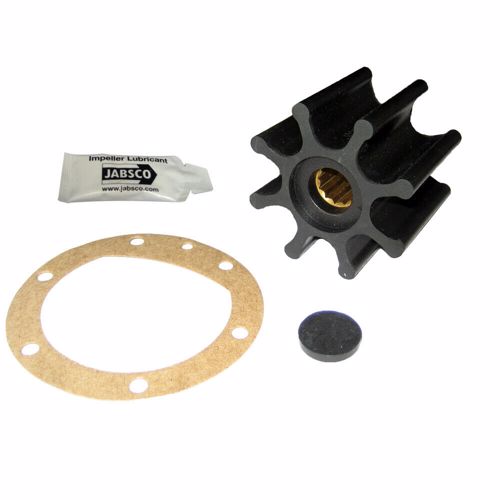

Jabsco 920-0003-P Nitrile Impeller Service Kit
The Jabsco 920-0003-P is a complete impeller kit designed to support efficient marine pump performance by combining a quality nitrile flexible impeller with key service components for maintenance and installation.
Application
- Marine applications (impeller designed to deliver flow and circulation)
Compatibility
- Jabsco model 2300-9003
- Jabsco model 2300-9005
Technical Specifications
Supplier Code 920-0003-P Order Number 00320272 Barcode 671880570862 Material Nitrile Number of Blades 8 Insert Material Brass Impeller Hub / Drive Spline Drive Drive Type 7 Dimensions 65 x 51 mm Diameter 65 mm (2-9/16 in) Depth / Width 51 mm (2 in) Shaft Diameter 16 mm (5/8 in) Shaft Type Cartel Shipping Weight 0.30 kg
Product Details
- Kit contents: gasket 890-0000, Spline Seal 4345, and impeller lubricant
- Replaces: 920-0003B
- Replaces: 920-0003
Features
- Complete service kit format supports maintenance and performance
- Nitrile, 8-blade flexible impeller design for efficient operation
- Brass insert helps enhance durability and wear resistance
-
