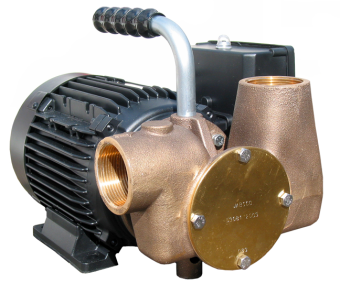

Jabsco 53081-2003-230 - 230V/1/50, 80 LPM, Utility Self-Priming Impeller Pump, 1-1/2" BSP, NIT

ID 1213576

$ 1,722.96

1-2 weeks delivery time

- +

Add to cart

The Jabsco 53081-2003-230 Utility 80 self-priming flexible impeller pump delivers heavy-duty fluid transfer for marine, industrial, and agricultural use with output up to 80 liters per minute and self-priming up to 3 meters from dry conditions. A corrosion-resistant bronze body, stainless steel shaft, nitrile oil-resistant impeller, and carbon-ceramic mechanical shaft seal support long service life, while built-in dry-running protection for up to 30 minutes after initial priming helps protect the pump during demanding operation. Powered by a 230V AC single-phase 50Hz continuously rated IP55 motor, it uses 1-1/2" BSP internal threaded ports and can handle hard and soft solids up to 8 mm.

Description
Ask a Question

Jabsco 53081-2003-230 Utility 80 Self-Priming Impeller Pump Unit

The Jabsco 53081-2003-230 Utility 80 is a robust, heavy-duty self-priming flexible impeller pump built for high-volume fluid transfer in demanding environments. Designed for dependable handling of utility liquids, it supports rapid priming, strong head capability, and durable materials suited to harsh operating conditions.

Application

High-volume bilge pumping
Industrial fluid handling and liquid transfer
Irrigation systems
Sump emptying and cellar drainage
Sewage tank or silo emptying
Transferring liquids and washdown operations

Compatibility

Marine applications
Industrial applications
Agricultural applications
Compatible with non-corrosive fluids such as water, light oils, and various industrial liquids
Capable of pumping fluids with suspended solids

Technical Specifications

Model	Utility 80
Pump Type	Self-Priming Flexible Impeller Pump
Power Supply	230V AC, Single-Phase, 50Hz
Motor Protection Rating	IP55
Duty	Continuously Rated Motor
Flow Rate	Up to 80 liters per minute (21.1 gallons per minute)
Output at 3 m Head	Approximately 75 liters per minute
Self-Priming Height	Up to 3 meters from dry conditions (under perfect conditions)
Maximum Head	20 meters (65.6 feet)
Dry-Running Protection	Up to 30 minutes after initial priming
Connections	1-1/2" BSP internal threaded ports (female thread; fittings not included)
Solids Handling	Hard and soft solids up to 8 mm
Maximum Recommended Liquid Viscosity	150 cP (reduced flow versions for higher viscosity liquids available on request)
Operating Temperature	5°C to 70°C (41°F to 158°F)
Power	1 HP (750 watts)
Power Consumption (Additional Stated)	Approximately 4.2 A / 0.55 kW
Dimensions (Stated)	330 mm long x 250 mm wide x 240 mm high (13 in x 9.8 in x 9.4 in)
Dimensions (Additional Stated)	Height 22.5 cm (without fitting) / Width 24.2 cm (without fitting) / Length 32.5 cm
Packaged Dimensions (Stated)	325 mm long x 225 mm wide (12.8 in x 8.8 in)
Weight (Stated)	17.35 kg (actual), 19.35 kg (packed)
Weight (Additional Stated)	Approximately 15.6 kg unit weight, approximately 17 kg packed
Shipping Weight (Stated)	20.00 kg
Materials	Bronze body/pump head; stainless steel shaft; nitrile oil-resistant flexible impeller; carbon-ceramic mechanical shaft seal
Impeller Type	Single nitrile flexible impeller
Product Portfolio (Stated)	Impeller pumps; general purpose pumps

Product Details

Construction: Bronze pump head with wear plate and 1/1 cam
Seal Type: Mechanical shaft seal
Design: Simple, fully serviceable layout with minimal wearing parts
Protection: Dry-running capability supported by built-in protection (up to 30 minutes after initial priming)

Features

High output up to 80 liters per minute for fast fluid transfer
Self-priming up to 3 meters from dry conditions for quicker start-up
IP55-rated motor helps protect against dust and water ingress
Handles hard and soft solids up to 8 mm for versatile utility pumping
Durable bronze, stainless steel, and nitrile components support long-term use in demanding environments

Alternatives (As Stated)

Alternative to Jabsco 53080-2003 (predecessor)
Alternative to Jabsco 53080-2001
Alternative to Jabsco 53081-2001-230
Alternative to Jabsco 53080-2053 (special version for pumping lubricating oil up to 1000 cP; same pump except for the cam, which must be exchanged for Jabsco 53082-0050)
Alternative to Jabsco 53081-2053-230 (special version for pumping lubricating oil up to 1000 cP; same pump except for the cam, which must be exchanged for Jabsco 53082-0050)
Alternative to Jabsco 53080-2063 (special version for emptying holding tanks; same pump except for the cam, which must be exchanged for Jabsco 53082-0060)
Alternative to Jabsco 53081-2063-230 (special version for emptying holding tanks; same pump except for the cam, which must be exchanged for Jabsco 53082-0060)
