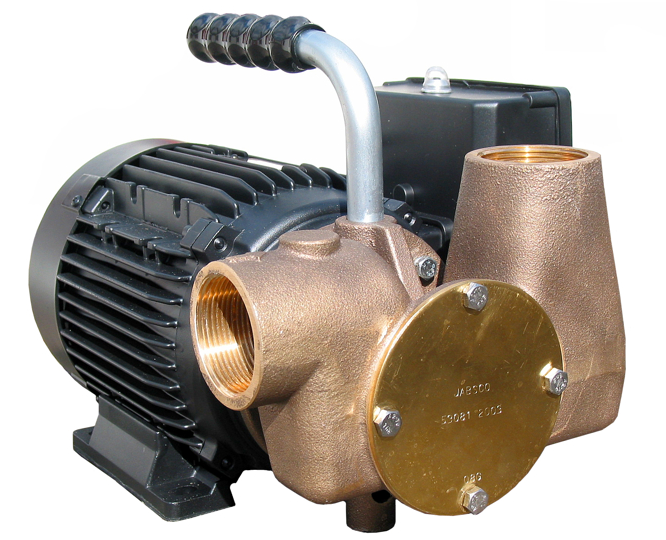

Jabsco 53081-2003 - Utility 80 Self-Priming Flexible Impeller Pump

Jabsco 53081-2003 - Utility 80 Self-Priming Flexible Impeller Pump

The Jabsco 53081-2003 Utility 80 is a high-performance, heavy-duty self-priming flexible impeller pump designed for demanding industrial, marine, and fluid transfer applications. Featuring a corrosion-resistant bronze body, stainless steel shaft, and a powerful 230V electric motor, this pump offers exceptional reliability and durability for long-term use. It is engineered to handle both hard and soft solids, making it suitable for a variety of liquids, including water, oils, and light fuels.

Key Features:

• Rapid self-priming from dry up to 3 meters for quick and efficient startup.
• Handles both hard and soft solids, making it versatile for various applications.
• Built-in dry-running protection for up to 30 minutes after initial priming to prevent damage.
• Corrosion-resistant bronze body and stainless steel shaft ensure long-lasting durability.
• Carbon-ceramic mechanical shaft seal for reliable, leak-proof performance.
• Nitrile oil-resistant impeller for compatibility with a wide range of fluids.
• Heavy-duty, continuously rated motor ensures reliable, long-term operation.
• Simple and fully serviceable design with minimal wearing parts for easy maintenance.

Specifications:

• Connections: 1½” BSP internal threaded ports.
• Dimensions: 330 mm (L) x 250 mm (W) x 240 mm (H).
• Weight: 17.35 kg (Actual), 19.35 kg (Packaged).
• Output: Up to 80 liters per minute (21.1 gallons per minute).
• Maximum Self-Priming: Up to 3 meters vertical lift.
• Dry Run Protection: Up to 30 minutes after initial priming.
• Motor: 230V, 1 phase, 50Hz, IP55-rated electric motor for durability and reliable operation.
• Impeller Material: Nitrile, oil-resistant, suitable for a wide variety of liquids.
• Maximum Operating Temperature: 60°C (140°F), ideal for various fluid types.
• Sealing Type: Carbon-ceramic mechanical shaft seal ensures leak-proof performance and extended service life.
• Power Consumption: Approximately 1.1 kW (1.5 HP).
• Continuous Duty Rating: Designed to operate continuously without overheating.
• Noise Level: Low operational noise, ensuring quiet performance in sensitive environments.
• Maximum Fluid Viscosity: 1500 cSt, suitable for a range of industrial fluids.
• Voltage Range: 230V, 1 phase, 50Hz, offering stable operation with standard power supplies.
• Energy Efficiency: High-efficiency motor reduces energy consumption for cost-effective operation.

Compatibility and Application:

• Ideal for heavy-duty industrial applications, marine systems, and fluid transfer tasks.
• Suitable for pumping water, oils, light fuels, and other industrial liquids with solids.
• Perfect for irrigation, bilge pumping, diesel transfer, and general utility pumping tasks.
• Can be integrated with existing systems for fluid transfer, cleaning, and wastewater management.
• Excellent for use in both marine and land-based applications that require high-flow, self-priming pumps.

Benefits:

• Delivers reliable, high-performance operation, even in harsh environments and demanding tasks.
• Corrosion-resistant materials ensure longevity, reducing maintenance and replacement costs.
• Dry-running protection enhances safety and extends the life of the pump in case of fluid loss.
• Easy to service and maintain, thanks to the simple design and minimal wearing parts.
• Compact and rugged design makes it suitable for installation in confined spaces or mobile setups.
• The continuously rated motor offers stable performance, making it ideal for continuous operation.
• Low noise operation improves user comfort and is suitable for noise-sensitive environments.
