$ 137.42
1-2 weeks delivery time
-
+
The Jabsco 45490-1000 Y-valve diverter unit enables two-position waste routing for marine toilets, directing discharge either to a holding tank or overboard. Its chemical- and corrosion-resistant polymer and stainless-steel construction supports long service life in harsh marine environments, while rotatable ports simplify installation. Manual lever operation includes a lockable/padlockable feature (lock not included) and supports 38 mm (1-1/2 in) hose connections, with included 25 mm (1 in) and 38 mm inlet ports.
- Description
- Ask a Question
-

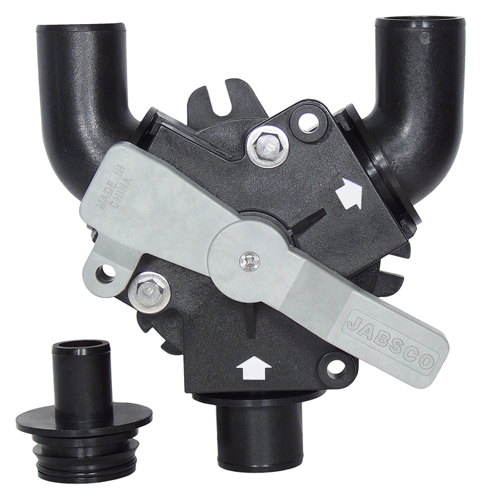

Jabsco 45490-1000 Marine Toilet Waste Diverter Valve
The Jabsco 45490-1000 is a radial Y-valve designed for marine toilet waste management systems, allowing discharge to be redirected either overboard (when at sea) or into a waste holding tank. Built for marine conditions, it combines corrosion-resistant materials with practical installation flexibility through rotatable ports and a secure manual lever.
Application
- Marine toilets (toilet discharge diverter)
- Waste routing to a holding tank
- Overboard discharge routing (when at sea)
- Use with waste holding tanks, onboard pumps, and shore pump-out systems
- Can be operated through a bulkhead using an optional shaft extension (model 45500-1000)
Technical Specifications
Supplier Code 45490-1000 Order Number 00320054 Barcode 671880536462 Materials Corrosion-Resistant Polymer and Stainless Steel Hose Connections 38 mm (1-1/2 in) bore hose Included Inlet Ports 25 mm (1 in) and 38 mm (1-1/2 in) Port Configurations 2 x 1.5 in (38 mm) angled; 1 x 1.5 in (38 mm) straight; 1 x 1 in (25 mm) straight Dimensions 180 mm long x 120 mm high Dimensions (Length x Width x Height) 180 x 120 mm Packaged Dimensions 19.00 x 12.00 x 19.00 cm Weight 0.81 kg Packed Weight (Approx.) 1.11 kg Shipping Weight 1.40 kg
Product Details
- Function: Redirection of toilet discharge and waste pump-out
- Operation: Manual lever action with lockable lever (lock not included)
- Security Option: Valve can be padlocked (lock not included) to restrict discharge routing for compliance with local regulations
- Installation: Rotatable ports for easier hose alignment
Features
- Two-position diverter routing: holding tank or overboard
- Chemical- and corrosion-resistant construction
- Rotating discharge ports to simplify installation
- Supports bulkhead operation with optional shaft extension (model 45500-1000)
-
