The Jabsco 42755-0094 V-Flo 5.0 constant water pressure pump unit delivers variable-flow performance for a more consistent onboard water experience, powered by a 24V DC motor and rated up to 19 L/min with a 4.1 bar cut-off pressure. The pressure switch turns on at 40 PSI and turns off at 60 PSI to help maintain stable pressure while reducing water hammer through gradual start and stop behavior. This pump is specified for intermittent duty only, has a 5.20 kg shipping weight, and is no longer available; the closest replacement listed is MARCO 16468715.
- Description
- Ask a Question
-

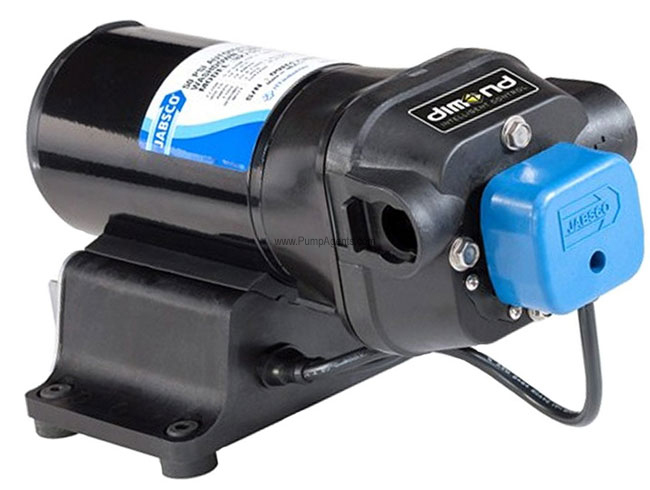

Jabsco 42755-0094 V-Flo 5.0 Variable-Flow Pressure Pump Unit
The Jabsco 42755-0094 V-Flo 5.0 is a constant water pressure diaphragm pump and motor unit designed to deliver consistent, on-demand water pressure onboard. It uses variable speed control to help provide smoother start-up and shut-off behavior for a quieter system experience and reduced water hammer.
Application
- Onboard water pressure systems
- Supplies water for up to 4 outlets simultaneously
- Intermittent duty only (not for continuous duty)
Compatibility
- No longer available; closest replacement: MARCO 16468715
Technical Specifications
Brand Jabsco Catalog Number 42755-0094 Series V-Flo 5.0 Voltage 24V Output 19 L/min (5.0 GPM) Cut-Off Pressure 4.1 bar Pressure Switch On 40 PSI Pressure Switch Off 60 PSI Shipping Weight 5.20 kg Duty Rating Intermittent Duty Only Pump Type Diaphragm Pump
Product Details
- Pump and motor unit: Pump is coupled to a 24V DC motor
- Control behavior: Gradual start-up and shut-off to help prevent water hammer
- System monitoring: Features DiMOND technology designed to automatically diagnose and monitor pump and water pressure system performance to help prevent system failure
- Spare parts: Major overhaul kit / rebuild kit catalog number 18920-9043 (service kit with valve kit, diaphragm kit, lower housing kit, and slide clips)
Features
- Self-priming
- Runs dry without damage
- Runs smooth and quiet without water hammer
- Consistent water pressure for improved hot and cold water mixing
- Water flow adjusts quickly to demand with next generation electronic controls
- Constant water pressure operation
- Up to 50 percent less power consumption
- Learns the boat's water pressure system to improve pump performance
- Conserves power by matching motor power draw to flow demand
- Snap-fit port fittings for easy installation with a variety of connection possibilities
- Saves space by eliminating an accumulator tank
-
