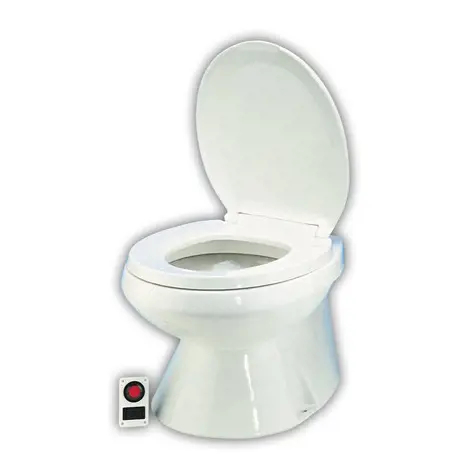

Jabsco 37275-0094 - Designer Styled Marine Toilet

Jabsco 37275-0094 - Designer Styled Marine Toilet

The Jabsco 37275-0094 Designer Styled Marine Toilet combines luxury, performance, and quiet operation, making it the perfect addition to your boat or yacht. Designed to mimic the comfort of a household toilet, it features a very quiet flush cycle, ensuring minimal noise during use. This model includes a single button flush actuator with a dual-function water level control switch for added convenience. The toilet is supplied with a Par-Max 4 self-priming pump that delivers either sea water or lake water to rinse the toilet bowl. It is available with a compact 14" or standard 17" vitreous china bowl, and you can choose between a sleek White or Bone finish. The toilet also features a baked enamel seat and cover, providing both durability and style. Equipped with a high-capacity waste macerator and bowl discharge pump, it ensures efficient waste removal for a reliable and hygienic experience. All plumbing and wiring connections are internal and out of sight, maintaining a clean and tidy installation.

Key Features:

• Very quiet flush cycle, similar to a household toilet
• Single button flush actuator with dual-function water level control switch
• Supplied with Par-Max 4 self-priming pump for sea or lake water flush
• Available with a compact 14" height or standard 17" height vitreous china bowl
• Choice of White or Bone finish for a modern and elegant look
• Baked enamel seat and cover for durability and easy cleaning
• High-capacity waste macerator and bowl discharge pump for efficient waste removal
• All plumbing and wiring connections are hidden for a clean installation
• Efficient, low power consumption with 24V DC operation

Specifications:

• Part Number: 37275-0094
• Voltage: 24V DC
• Bowl Height: Available in compact 14" or standard 17" height
• Finish: Available in White or Bone
• Seat & Cover: Baked enamel for added durability
• Flush Cycle: Very quiet operation, similar to household toilets
• Flush Actuator: Single button with dual-function water level control switch
• Flush Water Supply: Sea water or lake water via Par-Max 4 self-priming pump
• Discharge Pump: High-capacity waste macerator and bowl discharge pump
• Plumbing and Wiring: Internal connections for a clean look
• Power Consumption: Low power consumption, suitable for 24V DC systems
• Plumbing Hose Sizes: 19mm (¾”) inlet hose, 38mm (1 ½”) discharge hose
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Dimensions: 400mm high x 400mm wide x 500mm deep (for compact model)
• Packaged Dimensions: L: 50.00 cm x H: 45.00 cm x W: 60.00 cm
• Weight: 18 kg (Approx. 20 kg packed)
• Noise Level: Very quiet, less than 55dB during operation
• Material: Vitreous china bowl, corrosion-resistant components
• Certifications: CE, RoHS compliant, Ignition protected
• Warranty: 2 years

Applications:

• Perfect for use in marine environments, including yachts and boats
• Ideal for customers seeking a high-performance and quiet toilet system
• Suitable for both sea and lake water environments
• Perfect for use in tight bathroom spaces with compact bowl options

Benefits:

• Quiet operation for a peaceful onboard experience
• Single button flush with dual water level control for ease of use
• Compact and standard bowl sizes for versatile installation
• High-capacity macerator and discharge pump for effective waste removal
• Durable vitreous china bowl and baked enamel seat for long-lasting performance
• Clean and tidy installation with internal plumbing and wiring
• Available in two attractive finishes (White and Bone) to match your interior
• Low power consumption suitable for 24V DC systems, ensuring energy efficiency
