ID
1331433
$ 89.85
1-2 weeks delivery time
-
+
The Jabsco 37121-0010 pressure switch unit regulates water pressure at a 40 PSI factory pre-set for use with Jabsco 36800 water pressure pumps, supporting consistent system performance and protection against over-pressurization. It is supplied with servicing instructions for the Universal Switch Replacement Kit, including required screw torque values, and warns that unauthorized adjustment of the pressure adjustment screw can void the warranty.
- Description
- Ask a Question
-

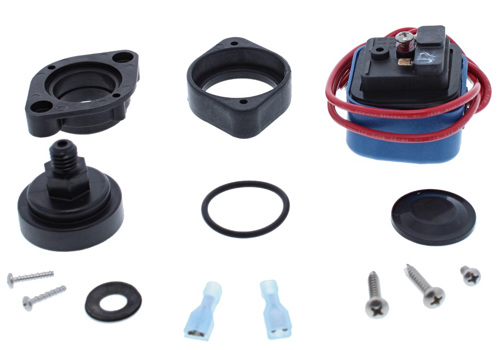

Jabsco 37121-0010 Water Pressure Pump Switch
The Jabsco 37121-0010 pressure switch is a replacement switch designed to control and regulate water pressure in compatible Jabsco pressure pump systems. Factory pre-set to 40 PSI, it helps maintain stable operation and includes detailed servicing guidance for correct and safe installation.
Application
- Water pressure regulation for Jabsco water pressure pump systems
- Supports servicing with the Universal Switch Replacement Kit instructions
Compatibility
- Jabsco 36800 water pressure pumps
- -1000 Series pumps
- -2000 Series pumps
Technical Specifications
Brand Jabsco Supplier Code 37121-0010 Order Number 00320397 Barcode 671880032971 Pressure Rating 40 PSI (2.8 bar) Shipping Weight 0.20 kg Service Torque (Intermediate Screws) 15 inch-pounds Service Torque (Switch Screws) 7 inch-pounds
Product Details
- Type: Pressure switch (replacement switch)
- Function: Ensures proper water pressure regulation at the specified set point
- Service note: Power must be turned off before servicing, and system pressure should be relieved by opening an outlet
Features
- Factory pre-set to 40 PSI for consistent pressure control
- Designed for use with Jabsco 36800 water pressure pumps
- Includes servicing instructions for the Universal Switch Replacement Kit
- Protects system operation by supporting correct pressure regulation
- Important: The pressure adjustment screw is factory set and should not be adjusted; unauthorized adjustment can void the warranty and may cause damage or injury
-
