Jabsco 32600-0092 - PAR-MAX 3.5 Water Pressure Pump

ID 1337344

$ 466.26

1-2 weeks delivery time

- +

Add to cart

The Jabsco 32600-0092 PAR-MAX 3.5 pressure-controlled diaphragm pump delivers on-demand pressurized water for boat freshwater systems, providing up to 13.2 L/min (3.5 GPM) with a 12V DC motor and 2.8 bar cut-off pressure. Its polypropylene construction with a Santoprene diaphragm and EPDM check valves supports quiet, smooth operation, self-priming capability, and the ability to run dry for extended periods. This model is no longer available and is replaced by Jabsco Q401J-115S-3A.

Description
Ask a Question

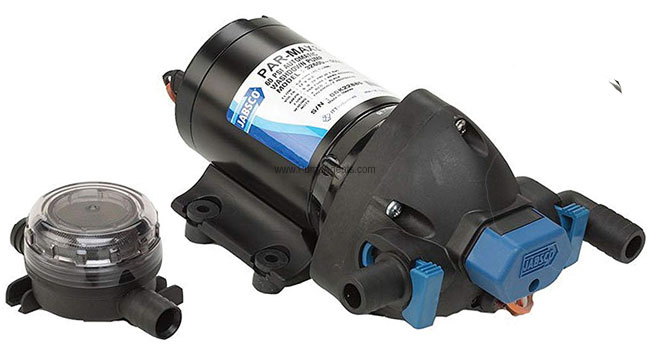

Jabsco 32600-0092 PAR-MAX 3.5 On-Demand Water Pressure Pump

The Jabsco PAR-MAX 3.5 pump and motor unit is a pressure-controlled diaphragm pump designed to supply pressurized hot or cold water at the turn of a tap. Built for quiet, smooth flow on vessels, it supports complex installations on larger boats and can supply multiple outlets such as the galley, lavatory, shower, and toilet.

Application

Boat freshwater pressure systems providing hot or cold water
Suitable for complex installations on larger boats with up to four outlets
Delivers pressurized water to the galley, lavatory, shower, and toilet

Compatibility

Status: Not available anymore
Replacement: Jabsco Q401J-115S-3A

Technical Specifications

Brand	Jabsco
Catalog Number	32600-0092
Voltage	12V DC
Output	13.2 L/min (3.5 GPM)
Cut-Off Pressure	2.8 bar
Self-Priming	From dry up to 2.4 m (7.8 ft); self-priming up to 10 ft
Shipping Weight	3.20 kg
Motor Rating	IP54
Standard	ISO 8846 Marine
