The Jabsco 31670-0094 dual-stage fresh water pressure system delivers automatic, on-demand flow using two Par-Max 4 quad diaphragm pumps in one compact assembly. An integrated 1 liter (33 fl oz) accumulator tank smooths pressure, reduces cycling, and improves shower temperature stability, while pre-installed filters, hoses, and plumbing connections simplify installation. The system provides up to 7.5 GPM (28.4 LPM) for as many as 6 outlets with 24V operation, a 20 PSI cut-in and 40 PSI cut-out pressure switch, 3/4 inch hose ports (20 mm), self-priming up to 1.5 m (5 ft), and ignition-protected motors with thermal overload protection.
- Description
- Ask a Question
-

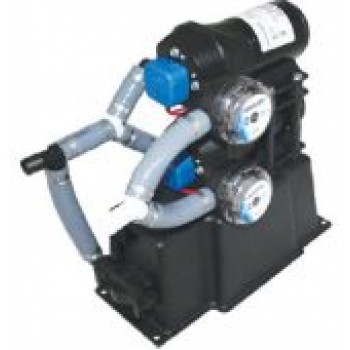

Jabsco 31670-0094 Dual-Stage 24V Fresh Water Pressure Unit
The Jabsco Dual Max system combines two automatic diaphragm pumps with an accumulator tank to deliver smooth, reliable fresh water pressure for multi-outlet installations. It switches automatically between low and high demand operation to provide efficient flow with reduced cycling, helping minimize noise and water hammer while improving hot water temperature control.
Application
- Designed for boats and RVs with multiple outlet fresh water systems
- Suitable for up to 6 outlets
- Automatic operation: runs when a faucet is opened and stops when it is closed
Technical Specifications
System Type Dual-stage automatic fresh water pressure system with accumulator tank Pumps Two Par-Max 4 quad diaphragm automatic pressure pumps Rated Voltage 24 V DC (pump coupled to a 24 V DC motor) Maximum Flow 7.5 GPM (28.4 LPM) Low-Demand Flow (Primary Pump) Up to 3.8 GPM Pressure Switch Turns on at 20 PSI; turns off at 40 PSI Shut-Off Pressure 40 PSI Current Draw (Maximum Demand) 7.5 A at 24 V DC (15 A at 12 V DC stated for peak usage) Self-Priming / Suction Lift Up to 1.5 m (5 ft) Port Size 3/4 inch hose ports Connections 20 mm (3/4 inch) Accumulator Tank Capacity 33 fl oz (1 liter) Accumulator Tank Precharge (Maintenance Note) 10 PSI Compliance / Listings Meets USCG 183.410 and ISO 8846 MARINE for ignition protection; CE listed
Product Details
- Integrated components: moulded base, accumulator tank, filters, pre-installed hoses, and plumbing connections
- Pump construction: multi-chamber diaphragm pumps with glass-filled polypropylene construction
- Motor type: permanent magnet motors with thermal overload protection
- Electrical: fully wired with waterproof fuse holders; each pump supplied prewired with an automotive-type fuse
- Reliability advantage: dual pump configuration allows continued operation if one pump becomes inoperable (remaining pump can continue to supply several outlets)
Features
- Two-stage operation automatically adjusts to demand
- Accumulator tank helps smooth flow and reduce pump cycling
- Low amp draw design compared to other high flow systems under similar conditions
- Ignition protected with thermal overload protection
- Run-dry ability, smooth flow, and easy installation (as stated)
Service Parts (As Listed)
- Major Overhaul / Rebuild Kit: Catalog # 18920-9043 (service kit with valve kit, diaphragm kit, lower housing kit, and slide clips)
- Pressure Switch (40 PSI): Catalog # 18916-0040
-
