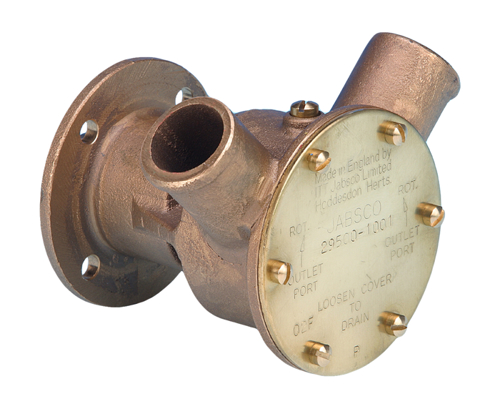

The Jabsco 29500-1001 cooling water pump assembly is a flange-mounted flexible impeller unit built for engine cooling systems using a 28 mm (1 1/8 in) hose connection. Its bronze construction supports corrosion resistance in marine environments, while the self-priming design helps maintain dependable cooling-water circulation. Supplied with impeller 1210-0001-P and a slotted shaft pin drive, it is listed with 40 LPM output (with other specifications stating up to 50 LPM) and a maximum operating pressure of 3 bar (43.5 psi).
- Description
- Ask a Question
-
Jabsco 29500-1001 Engine Cooling Impeller Pump Unit
The Jabsco 29500-1001 is a robust, flange-mounted flexible impeller pump designed to supply cooling water for marine and industrial engine installations. With a 28 mm hose connection and bronze body construction, it supports reliable circulation in demanding environments and is commonly used as a seawater pump on a wide range of engine models.
Application
- Use: Engine cooling systems (cooling water / seawater pump applications)
- Mounting: Flange mount (size 40 / BG 040), spigot shaft
- Connection: 28 mm (1 1/8 in) hose ports
Compatibility
- Aifo Iveco CO 1DM engines
- Aifo Iveco CO 2DM engines
- Aifo Iveco CO 3DM engines
- Aifo Iveco 514 engines
- Aifo Iveco 600 engines
- Aifo Iveco 8141SM11 engines
- Caterpillar Marine Power 4.120 engines
- Lancing Marine BMC 3.4 engines
- Lancing Marine BMC 3.8 (4-98) engines
- Lancing Marine 5.1 engines
- Lancing Marine Jaguar 2.4 engines
- Lancing Marine Jaguar 4.2 engines
- Lancing Marine Perkins 4.203 engines
- Nanni Diesel MB 180 engines
- Nanni Diesel MB 300 engines
- Perkins Perama Prima engines
- Perkins 4.99M engines
- Saab M 4.295 engines
- Sole Diesel MB 636 engines
- Sole Diesel SM 636 engines
- Sole Diesel 4.108 engines
- Tempest Diesels Commander 2.5 (HX) engines
- Tempest Diesels 50 HP (HX) engines
- Tempest Diesels Sea Prince 3000S engines
- VM Motori 103 MH Series engines
- VM Motori 4 MH Series engines
- VM Motori 6 MH Series engines
- VM Motori 116 DAN M engines
- VM Motori 804 engines
- VM Motori 806 M engines
- Volvo Penta MD 22 engines
Technical Specifications
Brand Jabsco Model 29500-1001 Supplier Code 29500-1001 Order Number 00320313 Barcode 671880549004 Pump Type Flexible Impeller Pump Material Bronze Mounting Type Flange (Size 40 / BG 040) Connection 28 mm hose connection (28 mm hose ports) Output 40 LPM Flow Rate Up to 50 liters per minute (13.2 gallons per minute) Maximum Operating Pressure 3 bar (43.5 psi) Impeller 1210-0001-P (Neoprene) Impeller Hub Spline Drive Drive / Shaft End Slotted Shaft Pin Drive Self Priming Yes, up to 4 meters Voltage 12 V DC Temperature Range -10 C to 60 C (14 F to 140 F) Noise Level Less than 70 dB(A) during normal use Dimensions (L x H x W) 16.00 cm x 11.00 cm x 11.00 cm Weight 1.22 kg (approx. 1.72 kg packed) Shipping Weight 1.80 kg
Product Details
- Portfolio: Impeller pumps
- Portfolio: Cooling water pumps
- Often referenced as: Cooling water pump / engine cooling pump
- Alternative references: Jabsco 29500
- Alternative references: Perkins 2488A401
- Alternative references: Volvo Penta 859824
Features
- Bronze body construction for corrosion resistance
- Flange-mounted design for secure installation
- Self-priming capability stated up to 4 meters
- Includes neoprene impeller (1210-0001-P)
- 28 mm hose ports for cooling water connections
-
