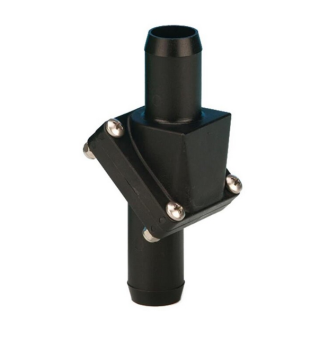

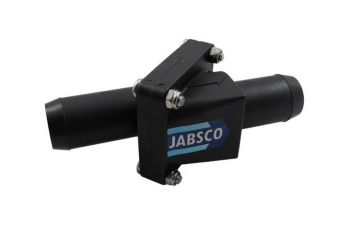

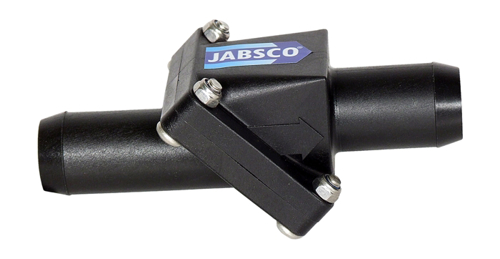

Jabsco 29295-1000 - In-line Non-Return Valve

Jabsco 29295-1000 - In-line Non-Return Valve

The Jabsco 29295-1000 In-line Non-Return Valve is an essential marine component designed to ensure optimal pump operation. It fits into the pump's suction hose to help with priming and prevents the backflow of water into the bilge, ensuring efficient water flow. The valve is made of durable, corrosion-resistant materials, providing long-lasting reliability in both fresh and saltwater conditions. With a robust plastic construction and a nitrile rubber valve, the Jabsco 29295-1000 is engineered for maximum performance, preventing water from flowing back into the system. This valve is ideal for use in marine vessels and offers flexibility with its adjustable port configuration, allowing for convenient hose angle adjustments during installation. A compact and efficient solution, this valve is designed to improve pump efficiency and reduce maintenance efforts.

Key Features:

• Prevents backflow from the pump into the bilge, ensuring efficient pump priming and continuous operation.
• Corrosion-resistant materials suitable for both freshwater and saltwater environments.
• Fits into the pump's suction hose, aiding in the maintenance of proper pump priming and preventing reverse water flow.
• Adjustable port configuration allows for flexible hose angle adjustments, making installation easier.
• Durable plastic body with nitrile rubber valve provides a long service life and resistance to wear and tear.
• Compatible with 25mm (1”) bore hoses, making it suitable for most marine pump systems.
• Compact and lightweight design for easy integration without taking up excessive space.
• Designed to enhance pump efficiency and prevent unnecessary backflow, reducing the need for frequent maintenance.
• Provides increased reliability in critical applications where backflow could cause damage to the pump or system.

Specifications:

• Model: Jabsco 29295-1000
• Material: Corrosion-resistant plastic body with nitrile rubber valve
• Dimensions:
  • Length: 108mm (4.25 inches)
  • Width: 55mm (2.17 inches)
  • Height: 50mm (1.97 inches)
• Connections:
  • Inlet and outlet hose: 25mm (1") bore
• Function: Aids pump priming, prevents backflow into the bilge, ensuring reliable pump operation
• Weight: 0.11 kg (approx. 0.31 kg packed)
• Port Configuration: Adjustable, offering flexibility in hose angle positioning for various installations
• Materials:
  • Robust plastic construction
  • Nitrile rubber valve for durability and long service life
• Application: Ideal for marine pumps and systems requiring backflow prevention and efficient water flow management
• Operating Conditions:
  • Temperature Range: -5°C to 50°C (23°F to 122°F)
  • Pressure Rating: 1-2 bar (14.5-29 psi)
  • Max Flow Rate: 50 litres per minute (13.2 gallons per minute)
• Compatibility: Designed for use with Jabsco manual and electric pumps
• Mounting: Can be installed inline in the suction hose of marine pump systems
• Seal Type: Nitrile rubber valve for sealing and preventing backflow
• Certifications: Complies with marine industry standards for corrosion resistance and safety
• Installation: Easy installation with no tools required for most standard hose configurations
• Maintenance: Low-maintenance valve, with simple cleaning and upkeep to ensure long-lasting performance

Applications:

• Designed for use in marine vessels, this valve prevents backflow in the pump's suction line, ensuring the pump maintains proper priming.
• Ideal for use in both freshwater and saltwater pump systems, offering reliable backflow prevention and performance in harsh environments.
• Perfect for use in bilge pump systems, water transfer pumps, and other marine pumps requiring backflow prevention.
• Suitable for use in both recreational and commercial vessels, providing an efficient solution to manage pump operations and water flow.

Benefits:

• Prevents water backflow into the bilge, ensuring your pump remains primed and continues to operate efficiently.
• Made from corrosion-resistant materials, providing long-term durability in both saltwater and freshwater environments.
• Flexible installation with an adjustable port configuration, allowing easy hose angle adjustments for optimal fit.
• Compact design allows for easy integration into your marine system without taking up too much space.
• Cost-effective and low-maintenance solution for maintaining consistent pump performance and preventing water flow issues.
• Ensures efficient pump priming, reducing the time spent maintaining and troubleshooting your marine pump systems.
• Increases the lifespan of pumps by preventing backflow, reducing wear and tear on the system over time.
