The Jabsco 29280-0000 Amazon Warrior manual bilge pump delivers heavy-duty, high-volume bilge or wastewater pumping with an output of up to 135 liters per minute and 38 mm (1-1/2 in) hose connections for straightforward installation. Its double diaphragm design supports efficient, safer operation with each side working independently, while manual actuation means no external power is required. Built with a robust alloy body and a removable stainless steel handle, it is designed for demanding marine environments and offers flexible mounting options including surface, bulkhead, and through-deck installations (optional kit and bracket sold separately).
- Description
- Ask a Question
-

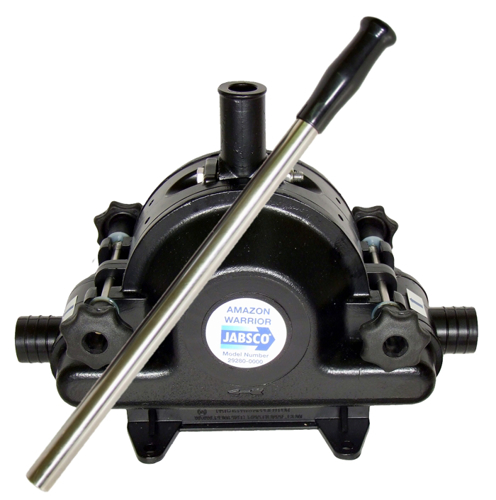

Jabsco 29280-0000 Amazon Warrior Manual Pumping Unit
The Jabsco 29280-0000 from the Amazon Warrior series is a heavy-duty manual bilge and wastewater pump engineered for rapid water removal and dependable liquid transfer on boats and marine vessels. With versatile mounting options and a rugged metal construction, it supports demanding workboat, safety, and general marine applications where reliable manual pumping is required.
Application
- Bilge water removal
- Wastewater pumping
- General liquid transfer on marine vessels
- Suitable for yachts, boats, and other vessels requiring high-volume transfer
- Usable in fresh and saltwater environments
Compatibility
- 38 mm (1-1/2 in) inside-diameter hose for inlet connection
- 38 mm (1-1/2 in) inside-diameter hose for outlet connection
Technical Specifications
Brand Jabsco Model 29280-0000 Series Amazon Warrior Type Manual bilge or wastewater pump Operation Manual operation (no power required) Output Up to 135 L/min (35.6 US GPM); also stated as up to 135 L/min (30 gallons/min) Maximum Suction Lift 6 m (19.6 ft); also stated as self-priming up to 6 m (19.7 ft) Head Rating Maximum pump head: over 4.27 m; recommended maximum head: 6 m (19.6 ft); also stated as delivery head up to 6 m (19.7 ft) Hose Connections 38 mm (1-1/2 in) inside-diameter hose for inlet and outlet Dimensions (L x W x H) 365 x 200 x 260 mm (450 mm with handle) Additional Dimensions (As Listed) Height 68 cm (including handle); length 35.5 cm (port to port); width 20 cm Packaged Dimensions 39.00 cm x 22.00 cm x 31.00 cm Product Weight 4.82 kg Shipping Weight 5.90 kg Packed Weight (As Listed) Approx. 5.32 kg packed Operating Pressure Up to 2 bar (29 PSI) Temperature Range -10°C to 60°C (14°F to 140°F) Order Number 00320110 Supplier Code 29280-0000 Barcode 671880023023
Product Details
- Construction: durable alloy body
- Handle: removable stainless steel handle
- Clips: stainless steel bulkhead clips / mounting clips (as listed)
- Design: double diaphragm design, with each diaphragm working independently
- Mounting: surface or through-deck mounting; also listed for bulkhead and through-bulkhead mounting
- Installation note: through-deck kit and bracket sold separately
- Serviceability: quick-release clamp ring for easy disassembly and maintenance
Features
- High-capacity manual pumping for fast bilge and wastewater removal
- 38 mm (1-1/2 in) hose connections for inlet and discharge
- Double diaphragm operation for efficiency and added safety
- Self-priming capability up to 6 m (as listed)
- Robust alloy body with stainless steel operating components for marine use
- Flexible mounting options with optional accessories available
-
