The Jabsco 29200-0240 conversion kit upgrades Jabsco manual toilets to 24V electric operation by replacing the manual pump assembly. It fits compact and regular models and supports left- or right-hand installation, with a rotary control offering full flush and discharge or discharge-only modes. The kit includes a built-in macerator, uses a 19 mm (3/4 in) inlet and 38 mm (1-1/2 in) discharge connection, and is rated at 13 A with a recommended 15 A fuse to suit 24 Volt DC onboard systems.
- Description
- Ask a Question
-

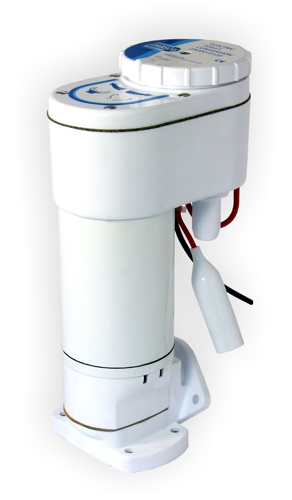

Jabsco 29200-0240 Electric Toilet Conversion Kit (24V)
Convert a Jabsco manual toilet to electric operation with the Jabsco 29200-0240 conversion kit. It replaces the manual pump assembly to deliver push-control convenience on 24 Volt DC systems, while keeping flexibility for onboard layouts with left- or right-side installation.
Application
- Upgrades Jabsco manual toilets to electric operation (24V)
- Compatible with compact Jabsco manual toilets
- Compatible with regular Jabsco manual toilets
- Replaces the manual pump assembly on Jabsco compact toilets
- Replaces the manual pump assembly on Jabsco comfort toilets
Compatibility
- Compact Jabsco manual toilet models
- Regular Jabsco manual toilet models
- Jabsco compact toilets
- Jabsco comfort toilets
Installation notes: Extra wiring is required. An adaptor is needed for older models with 3-bolt flanges. The unit may emit a low buzzing noise (characteristic noise) during operation. The manual pump can be reinstalled if needed.
Technical Specifications
Voltage 24V (24 Volts DC) Amperage 13 A Recommended Fuse Size 15 A Connections Inlet hose 19 mm (3/4 in); discharge hose 38 mm (1-1/2 in) Dimensions 270 x 150 x 87 mm (HxWxD); also listed as height 270 mm, width 87 mm, depth 150 mm Weight 3.6 kg Shipping Weight 4.50 kg Barcode 671880522809 Order Number 00320045 Supplier Code 29200-0240 Product Portfolio Electric Toilets
Product Details
- Type: Hand pump conversion kit (electric conversion)
- Function: Replaces the manual pump to provide electric flushing operation
- Control: Rotary control with flush and discharge, or discharge-only modes
- Macerator: Built-in macerator
- Mounting: Can be installed on either side (left-hand or right-hand configuration)
Features
- Converts manual toilet operation to electric control for 24V systems
- Dual-mode rotary control for flexible flushing and discharge operation
- Supports reinstallation of the manual pump if needed
- Designed for compact and regular Jabsco toilet configurations
-
