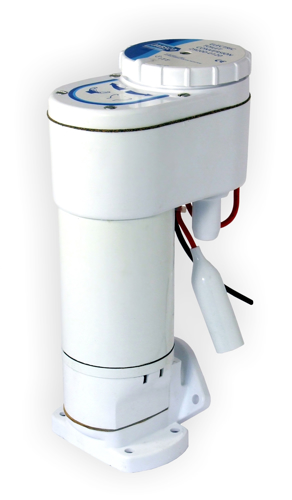

Jabsco 29200-0120 - Toilet 12V Electric Conversion Kit

Jabsco 29200-0120 - Toilet 12V Electric Conversion Kit

The Jabsco 29200-0120 Toilet 12V Electric Conversion Kit is the perfect solution for upgrading your manual marine toilet to an efficient electric model. This versatile kit includes a self-priming pump that allows for flexible installation above or below the waterline. It is compatible with both standard and regular bowl toilets and works for left and right-handed installations. The integrated macerator with a stainless steel chopper plate ensures effective waste grinding, while the simple rotary control enables easy operation with options for flush and discharge or discharge only. In case of a power failure, the manual pump can be easily reinstalled. Designed with corrosion-resistant materials, this electric conversion kit provides reliable performance in both fresh and saltwater environments. The unit operates with a characteristic 'buzz' and uses a 25-amp fuse for electrical safety. This conversion kit enhances the comfort and efficiency of your boat’s toilet system, making it an essential upgrade for marine vessels.

Key Features:

• Transforms a manual toilet into an electric toilet for enhanced convenience and ease of use.
• Built-in macerator with stainless steel chopper plate for efficient waste processing and reduced clogging.
• Simple rotary control allows users to choose between ‘flush & discharge’ or ‘discharge only’ modes.
• Self-priming pump enables installation above or below the waterline, adding flexibility to setup.
• Manual pump can be easily refitted in case of a power supply failure, ensuring backup functionality.
• Noise characteristic: Operates with a distinctive ‘buzz’ sound, ensuring smooth operation.
• Suitable for both left and right-handed installations, making it adaptable to different boat configurations.
• Designed for use with 19mm (¾") bore inlet hose and existing discharge elbow and outlet hose from the manual pump.

Specifications:

• Model: Jabsco 29200-0120
• Material: Corrosion-resistant plastic and metal components for durability in marine environments
• Power Supply: 12V DC for consistent and reliable operation
• Fuse Size: 25 Amp for safe electrical operation
• Dimensions:
  • Height: 270mm (10.6 inches)
  • Width: 87mm (3.4 inches)
  • Depth: 150mm (5.9 inches)
• Weight: 3.66 kg (approx. 4.16 kg packed)
• Packaged Dimensions:
  • Length: 32.00 cm (12.6 inches)
  • Height: 17.00 cm (6.7 inches)
  • Width: 25.00 cm (9.8 inches)
• Connections:
  • Inlet hose: 19mm (¾") bore
  • Uses existing discharge elbow and outlet hose from manual pump
• Noise Level: Operates with a characteristic ‘buzz’ during use
• Self-Priming Pump: Allows for installation above or below the waterline
• Mounting: Fits standard and regular bowls with flexible left and right-handed installation options
• Warranty: 1 Year

Applications:

• Ideal for upgrading manual marine toilets on boats, yachts, and other vessels to electric operation.
• Perfect for users who want to convert their existing manual toilet into an efficient electric model.
• Suitable for both fresh and saltwater applications in marine environments.
• Great for use on vessels with limited space or those seeking easier operation and improved waste processing.

Benefits:

• Easy conversion from manual to electric operation, enhancing convenience and comfort on board.
• The built-in macerator and stainless steel chopper plate ensure effective waste management and reduce clogging issues.
• Flexible installation options above or below the waterline offer versatility for various boat configurations.
• Backup manual pump ensures continuous functionality in case of power failure.
• The compact size and efficient design make it a space-saving solution for marine toilets.
• Noise level is manageable with the characteristic ‘buzz’, making it suitable for most boaters.
• Corrosion-resistant materials provide durability and long-lasting performance in harsh marine environments.
