ID
1333885
$ 2,913.61
1-2 weeks delivery time
-
+
The Jabsco 28320-7102 Pureflo hygienic pump head kit is a sanitary, easy-to-service flexible impeller pump head for handling sensitive materials with Clean-In-Place (CIP) support. It is designed to minimize shear for thixotropic fluids, handles soft solids up to 12 mm, and processes high-viscosity fluids up to 50,000 centiPoise. Certified to US 3A Standard 02-11, it uses 316 stainless steel construction with food-grade components for hygienic compliance across food, dairy, cosmetics, pharmaceutical, and beverage applications.
- Description
- Ask a Question
-

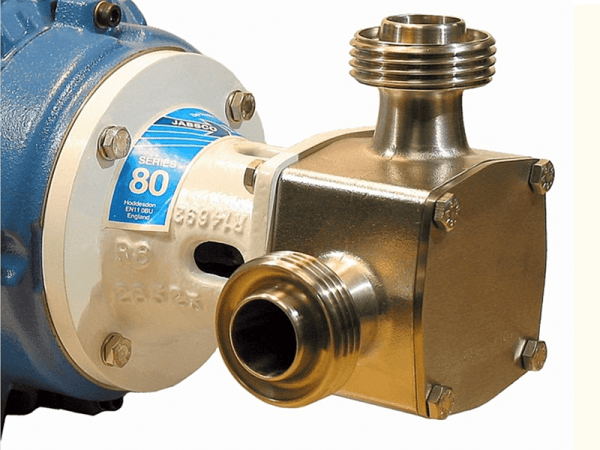

Jabsco 28320-7102 Pureflo Hygienic Flexible Impeller Head Kit
The Jabsco 28320-7102 P80 Pureflo pump head kit is a sanitary, easy-to-maintain solution for transferring sensitive products while supporting Clean-In-Place (CIP) routines. Built to minimize shear, it is well-suited for thixotropic fluids and demanding hygienic processes across multiple industries.
Application
- Foods: sauces, doughs, preserves, liquid egg, meat pastes
- Dairy: milk, cream, yoghurt, cheeses
- Cosmetics: toothpaste, shampoos, soaps
- Pharmaceuticals: creams, lotions
- Beverages: wines, beers, soft drinks, fruit juices, syrups
- Ingredients unloading and transfer
- Tank filling and emptying
- Recirculation and mixing
- Portion and container filling
- Brine injection
- Sampling, filtration, and more
Technical Specifications
Brand Jabsco Part Number 28320-7102 Series 28300 Series Port Size 1 in Pump Type Hygienic Flexible Impeller Process Support Clean-In-Place (CIP) Soft Solids Handling Up to 12 mm Maximum Fluid Viscosity Up to 50,000 centiPoise Certification US 3A Standard 02-11 Fluid Handling Characteristic Minimizes shear (suited for thixotropic fluids)
Product Details
- Description: Sanitary, easy-to-service pump head kit for handling sensitive materials
- Maintenance Design: Easy-to-strip construction
- Hygienic Focus: Food-grade components for hygienic standards
Materials and Construction
- Body Material: 316 stainless steel, machined interior, electropolished exterior finish
- Bearing Housing: Epoxy coated cast iron
- Seal Elastomer: Food grade nitrile
- Shaft Material: 316 stainless steel shaft extension
- Impeller: EPDM
-
