ID
1259065
$ 539.65
1-2 weeks delivery time
-
+
The Jabsco 2620-1101 bronze cooling-water pump unit is a pulley-driven, flexible-impeller pedestal pump end designed for marine circulation and cooling duties. It uses 3/8 in NPT internal ports, a 316 stainless steel shaft with a 17 mm diameter, and supports multiple impeller material options (Viton, Neoprene, Nitrile) to suit different service needs. With stated flow performance up to 7.5 GPM (25 LPM) and self-priming capability, it delivers durable, serviceable pumping for onboard and dockside applications.
- Description
- Ask a Question
-

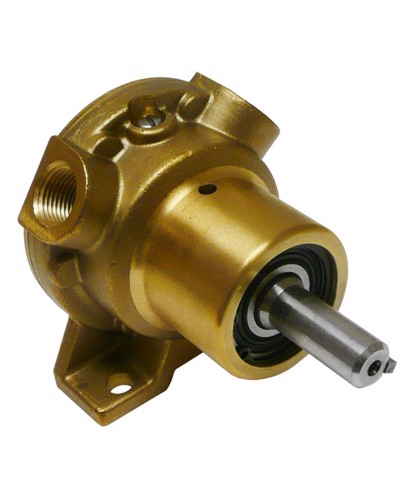

Jabsco 2620-1101 Pulley-Driven Bronze Cooling Water Pump
The Jabsco 2620-1101 is a marine-ready bronze flexible-impeller pump built as a bare shafted pedestal pump end only (without a motor). Its bronze construction and stainless steel shaft support long service life in demanding environments, while the flexible-impeller design suits engine cooling, circulation, and general-purpose water transfer.
Application
- Engine cooling
- Washdown
- Circulation
- Pumping bilges
- Circulating water in bait tanks
- Utility dock side pump
Compatibility
- Compatible impeller kit: Jabsco 18673-0001P
- Impeller (Neoprene): Jabsco 18673-0001
- Major overhaul kit / rebuild kit (service kit): Jabsco 90020-0001 (includes Neoprene impeller, seal, and O-ring)
- Shaft seal (lip seal): Jabsco 92700-0050
Technical Specifications
Model 2620-1101 Order Number 00320297 Supplier Code 2620-1101 Barcode 671880559997 Pump Body Material Bronze Drive Type Pulley drive Port Size 3/8 in NPT internal Stated Flow Rate 7.5 GPM (25 LPM) Nominal Flow Rate (Stated) 20 L/min (4.4 gallons/min) at 1500 rpm Additional Flow Spec (Stated) 5.8 GPM Shaft Material 316 stainless steel Shaft Diameter 17 mm Impeller Material Options Viton, Neoprene, Nitrile Standard Impeller (Stated) Neoprene Shaft Seal Type Nitrile lip type seal Bearings (Stated) Two single row ball bearings Self-Priming (Stated) From dry up to 1.5 m (4.9 ft) Vertical Lift Requirement (Stated) For 10 ft (3.0 m) vertical lift, minimum 800 rpm required Suction Lift (Stated) Up to 22 ft (6.7 m) when wetted Neoprene Impeller Temperature Limits (Stated) 45 F to 180 F (7 C to 82 C)
Product Details
- Pump type: Flexible impeller pump
- Configuration: Bare shafted pedestal pump end only without a motor
- Port direction: Intake and discharge ports are determined by the direction of shaft rotation
- Mounting: May be mounted in any position
- Lubrication: Depends on the liquid pumped for lubrication
Features
- Self-priming capability for easier startup
- Can pump in either direction
- Easy to service and maintain
- Will tolerate abrasive wear
- Handles hard and soft solids without clogging
- Will not airlock
Operating Notes (From Manufacturer Text)
- Do not run dry for more than 30 seconds; lack of liquid can damage the impeller and pump components.
- Suction lines must be airtight or the pump will not self-prime.
- To avoid pump damage, do not use petroleum-based anti-freeze compounds or rust inhibitors.
- Do not pump light fraction petroleum derivatives, solvents, thinners, or highly concentrated or organic acids; pump damage may result.
-
