€ 912,30
1-2 weeks delivery time
-
+
The Jabsco 23920-2323 Utility Puppy 3000 is a 24V heavy-duty impeller pump delivering 50 LPM and self-priming up to 2.4 meters. It features a corrosion-resistant bronze body, dry-running protection, and draws 11A. It’s designed for marine applications and certified to ISO and CE standards.
- Description
- Ask a Question
-

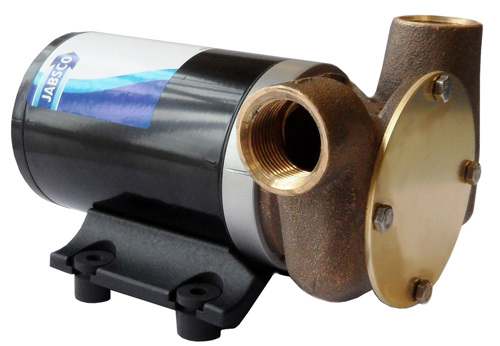

Jabsco 23920-2323 - Impeller Pump Utility Puppy 3000 24V 50 L/min 3/4" Internal Thread
Reliable and powerful, this self-priming electric impeller pump is built with a corrosion-resistant bronze body and carbon ceramic shaft seal. It's capable of dry running for up to 10 minutes after priming and delivers high flow rates at various head heights.
- Flow rate: 50 LPM (13.2 US GPH)
- Flow at 1 metre head: 2880 LPH (760 US GPH)
- Flow at 2 metre head: 2700 LPH (713 US GPH)
- Flow at 6 metre head: 2280 LPH (602 US GPH)
- Self-primes up to 2.4 metres (7.9 feet)
- Inlet/Outlet: 3/4" BSP female thread
- Voltage: 24V DC
- Current draw: 11A
- Fuse: 15A
- Dimensions (L x W x H): 220 x 125 x 105 mm
- Weight: 4.65 kg
- Construction: Bronze body, carbon ceramic shaft seal
- Mounting: Must not be vertical with impeller above motor
- Certifications: ISO8846 (ignition), ISO8849 (bilge pump), CE
- Model: 23920-2323
- Replacement impeller: JAB-7273-0003
- Replaces: Jabsco 23920-2313
- Order number: 00320429
- Supplier code: 23920-2323
- Barcode: 671880629447
-
