€ 322,43
1-2 weeks delivery time
-
+
The Jabsco 23870-1300 is a 24V fuel transfer pump designed for tanks up to 200 liters, offering a 35 LPM flow rate and self-priming up to 2.8 meters. Built with an IP55-rated motor and aluminum body, it suits mobile or stationary use and draws up to 10A. Connections support 1/2" BSP or 3/4" hose.
- Description
- Ask a Question
-

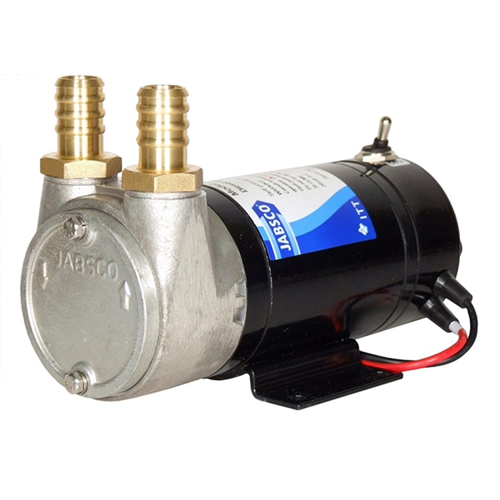

Jabsco 23870-1300 - Fuel Pump 24V, 35 liters/min
This 24V fuel pump is optimized for faster diesel refueling of medium-sized tanks. Suitable for mobile or stationary use across various machinery, it handles different fuels and oils with reliable performance and IP55 protection.
- Designed for refueling tanks up to 200 liters
- Operates on 24V DC power
- Flow rate: 35 liters per minute
- Self-priming up to 2.8 meters
- Maximum head: 6 meters
- Current draw: 7 Amps at 3m head, max 10 Amps
- Temperature range: -30°C to +40°C
- Pump body made from aluminum
- Rotor material: Vectra; Vanes: PTFE-filled Ryton
- Vertical 1/2" BSP or 3/4" hose connection (19 mm)
- Motor: corrosion-resistant, IP55-protected permanent magnet type
- Duty cycle: 25 minutes at 40°C
- Pump dimensions: 180 x 110 x 140 mm
- Product weight: 2.62 kg
- Pump type: 23870-1300
- Order number: 00320460
- Supplier code: 23870-1300
- Barcode: 671880050746
-
