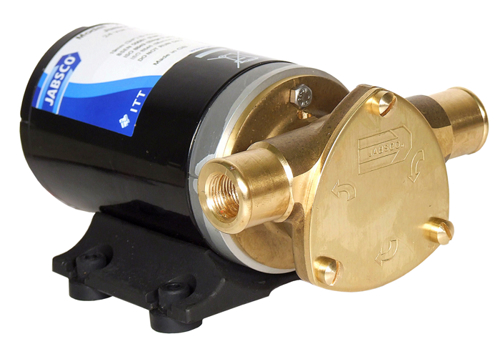

Jabsco 23680-4003 - Water Puppy Self-Priming Pump 12V

Jabsco 23680-4003 - Water Puppy Self-Priming Pump 12V

The Jabsco 23680-4003 Water Puppy Self-Priming Pump is a versatile, medium-duty, continuously rated pump, perfect for bilge and deck wash applications in marine environments. Designed for easy installation, this pump is equipped with connections for 25mm (1”) bore hose or ½” BSP male threaded fittings, ensuring flexibility for various hose setups. With a flow rate of up to 32 litres/minute (6.5 gallons/minute) and self-priming capability up to 1.2m vertical lift, it efficiently moves water, while its maximum pressure of 0.4 bar (6 psi) supports versatile applications. Constructed with a durable bronze body and stainless steel shaft, the Water Puppy is built to last in harsh environments. It offers easy servicing thanks to its simple, few-wearing-parts design, making maintenance quick and cost-effective. This surface-mounted pump operates on a 12V electrical supply with a 15-amp fuse, ideal for a variety of water transfer tasks, including handling clean or discoloured water.

Key Features:

• Self-priming capability up to 1.2m vertical lift for efficient and reliable water transfer.
• Flow rate of up to 32 litres/minute (6.5 gallons/minute), providing high output for marine applications.
• Maximum pressure capability of 0.4 bar (6 psi), suitable for various water transfer needs.
• Compact and lightweight with dimensions of 195mm long, 120mm wide, and 75mm high for easy installation.
• Durable construction with a corrosion-resistant bronze body and a stainless steel shaft for enhanced longevity.
• Flexible connections for 25mm (1”) bore hose or ½” BSP male threaded fitting for diverse applications.
• Designed for clean or discoloured water, offering versatility for different water types.
• Serviceable design with fewer parts for easier maintenance and reduced downtime.
• Ideal for domestic and marine applications requiring continuous operation without the need for frequent repairs.

Specifications:

• Model: Jabsco 23680-4003
• Dimensions: 195mm long, 120mm wide, 75mm high
• Weight: 3.22 kg (approx. 3.72 kg packed)
• Connection Size: 1 inch bore hose / ½" BSP male threaded fitting
• Maximum Pressure: 0.4 bar (6 psi)
• Flow Rate: 32 litres/minute (6.5 gallons/minute)
• Self-Priming: Up to 1.2m vertical lift
• Fuse Size: 15 amps
• Electrical Supply: 12V DC
• Duty Type: Domestic and marine use
• Material: Bronze body, stainless steel shaft
• Mounting: Surface mounted
• Power Type: 12V DC
• Medium Duty Rating: Ideal for moderate to continuous duty applications
• Corrosion Resistance: Bronze body for protection in marine environments
• Temperature Range: Operates effectively within a wide temperature range suitable for marine and outdoor use

Applications:

• Ideal for bilge pumping and deck washing applications on boats and other marine vessels.
• Perfect for transferring clean or discoloured water in both recreational and commercial marine applications.
• Can be used for various water transfer systems in caravans, recreational vehicles, and other outdoor environments.
• Ideal for use in low-pressure water circulation systems or for cleaning tasks in water tanks.

Installation and Maintenance:

• Ensure the pump is installed in a dry, ventilated location for optimal performance.
• Connections should be made using a 1-inch bore hose or ½" BSP male threaded fittings for flexibility.
• The pump is surface-mounted, allowing easy installation in various locations.
• Routine maintenance involves checking for any debris or blockages in the pump for maximum efficiency.
• Regularly inspect the pump for wear and tear, especially around the hose connections and seals.
• Ensure that the pump is not operated without water to avoid damaging the internal components.

Warning:

• Do not run the pump dry for extended periods, as this can lead to damage to the internal components.
• Ensure the electrical connections are properly insulated to prevent any risk of electrical faults.
• Check the pump regularly for any signs of wear or corrosion to maintain optimal performance.
